73363 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) AIR CLEANER Parts Diagram

Garden Tractor

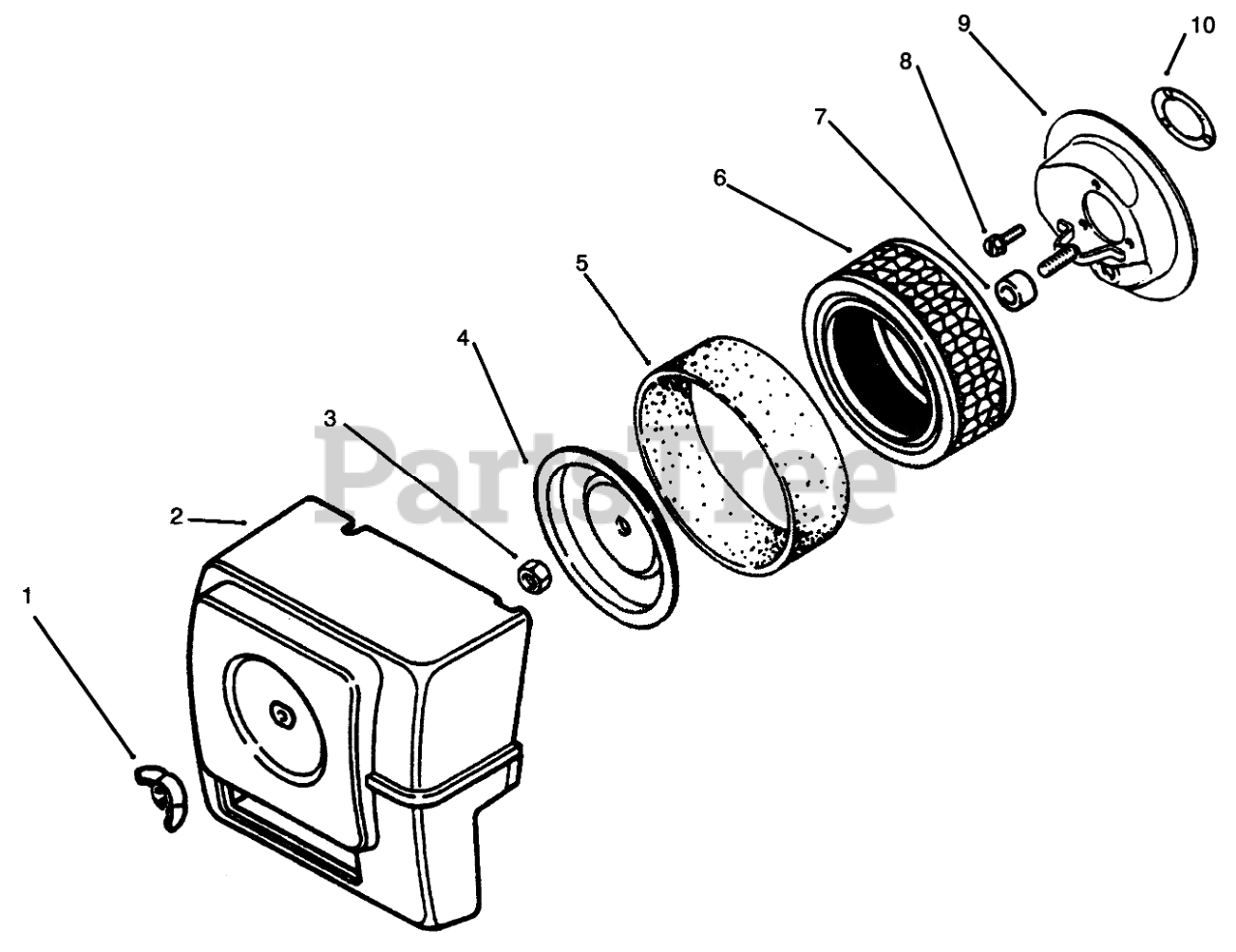

AIR CLEANER Parts Diagram

  • Title

1

Kohler X-276-7

Nut-Wing
(Superseded to X-276-7-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Not available

2

Toro 47-096-10

Cover

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

3

Toro 41-100-04

Nut

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

4

Toro 52-082-04

Cover-Air Clean Element

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

5

Toro 45-083-01

Precleaner

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

6

Toro 45-083-02

Element

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

7

Kohler 231032

Seal
(Superseded to 231032-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$8.49

$

Usually ships in 2-5 days

0

8

Kohler X-67-65

Screw
(Superseded to X-67-65-S)

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Not available

9

Toro 47-094-20

Base-Air Cleaner

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

10

Toro 45-041-07

Gasket

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

Toro 41-113-02

Decal-Air Cleaner

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable
