73363 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Air Cleaner Parts Diagram

Garden Tractor

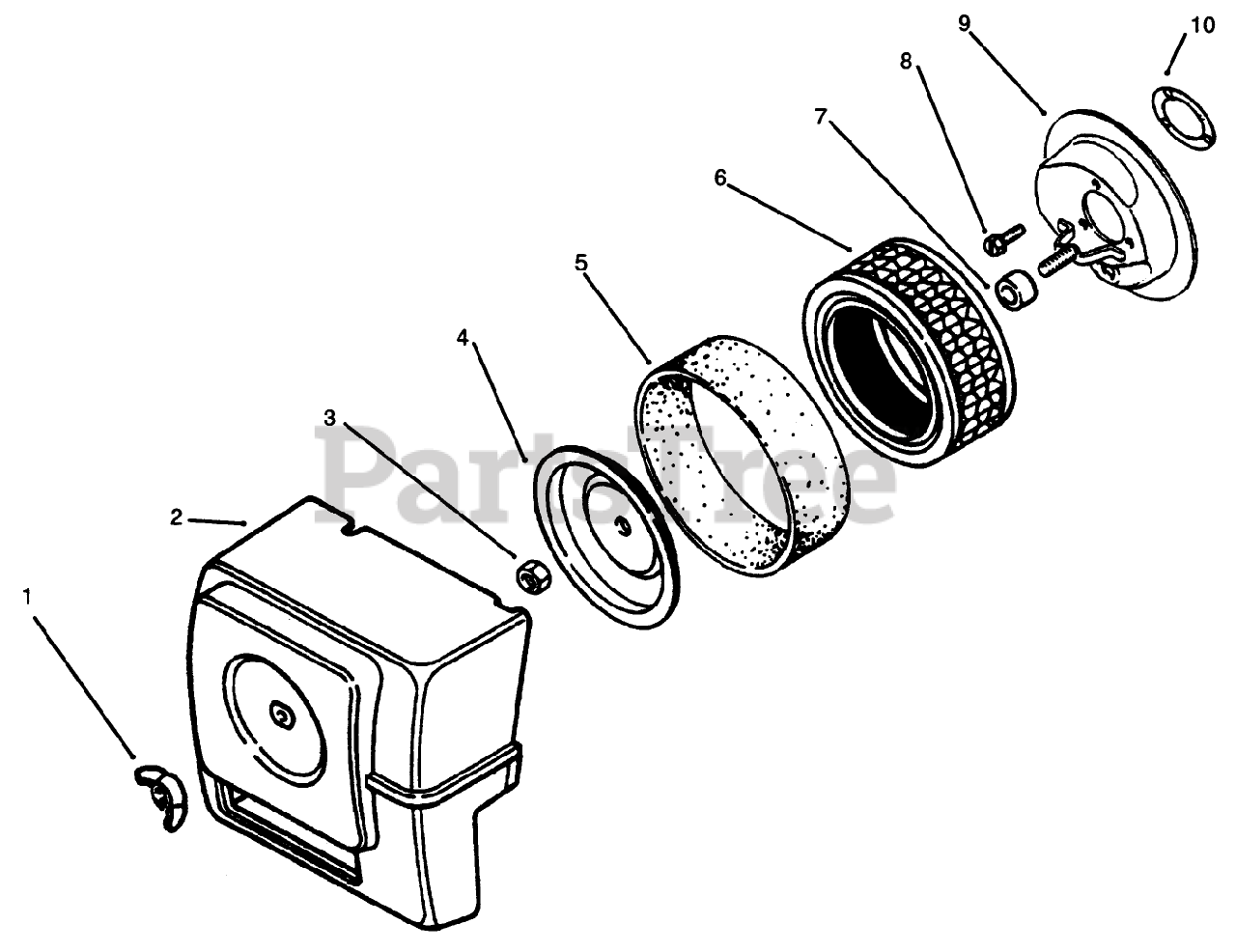

Air Cleaner Parts Diagram

  • Title

1

Toro X-276-7

Nut-Wing

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

2

Toro 47-096-10

Cover

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

3

Toro 41-100-04

Nut

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

4

Toro 52-082-04

Cover-Air Clean Element

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

5

Toro 45-083-01

Precleaner

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

6

Toro 45-083-02

Element

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

7

Toro 231032

Seal

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Not available

8

Toro X-67-65

Screw

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

9

Toro 47-094-20

Base-Air Cleaner

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

10

Toro 45-041-07

Gasket

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

Toro 41-113-02

Decal-Air Cleaner

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable
