73363 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Oil Pan And Dipstick Parts Diagram

Garden Tractor

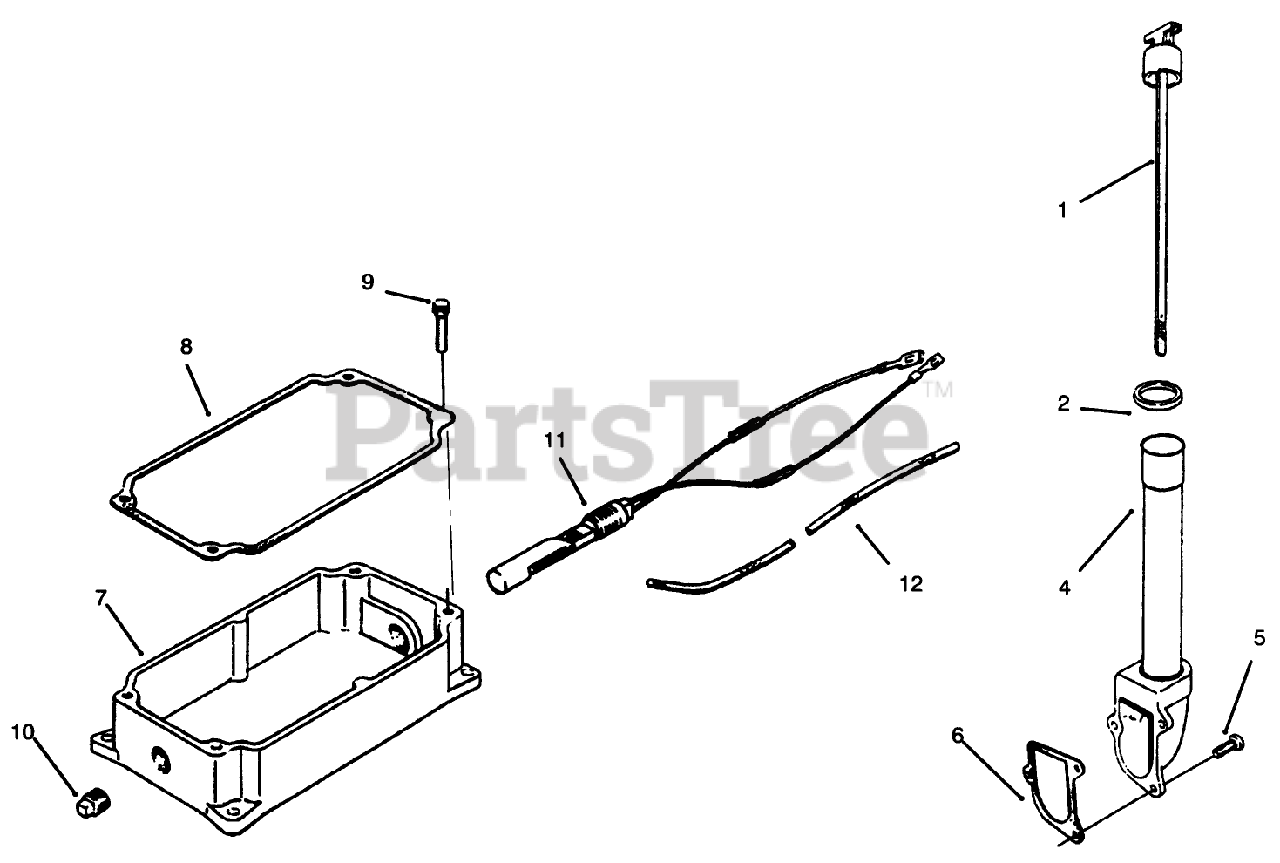

Oil Pan And Dipstick Parts Diagram

  • Title

1

Toro 47-038-27

Dipstick

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

2

Toro 41-153-01

O-Ring

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

4

Toro 47-029-06

Adapter-Oil Fill

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

5

Toro X-131-2

Screw

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

6

Toro 237064

Gasket

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Not available

7

Toro 45-199-05

Pan-Oil

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

8

Toro 235057

Gasket

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

9

Toro X-159-3

Screw

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

10

Toro X-75-10

Plug

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

11

Toro 47-099-04

Kit-Float Switch 12hp

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

12

Toro 25-431-02

Sleeve

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

Toro 25-113-05

Decal-Float Switch

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

Toro 48-155-01

Connector

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable
