73363 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) PISTON AND RINGS Parts Diagram

Garden Tractor

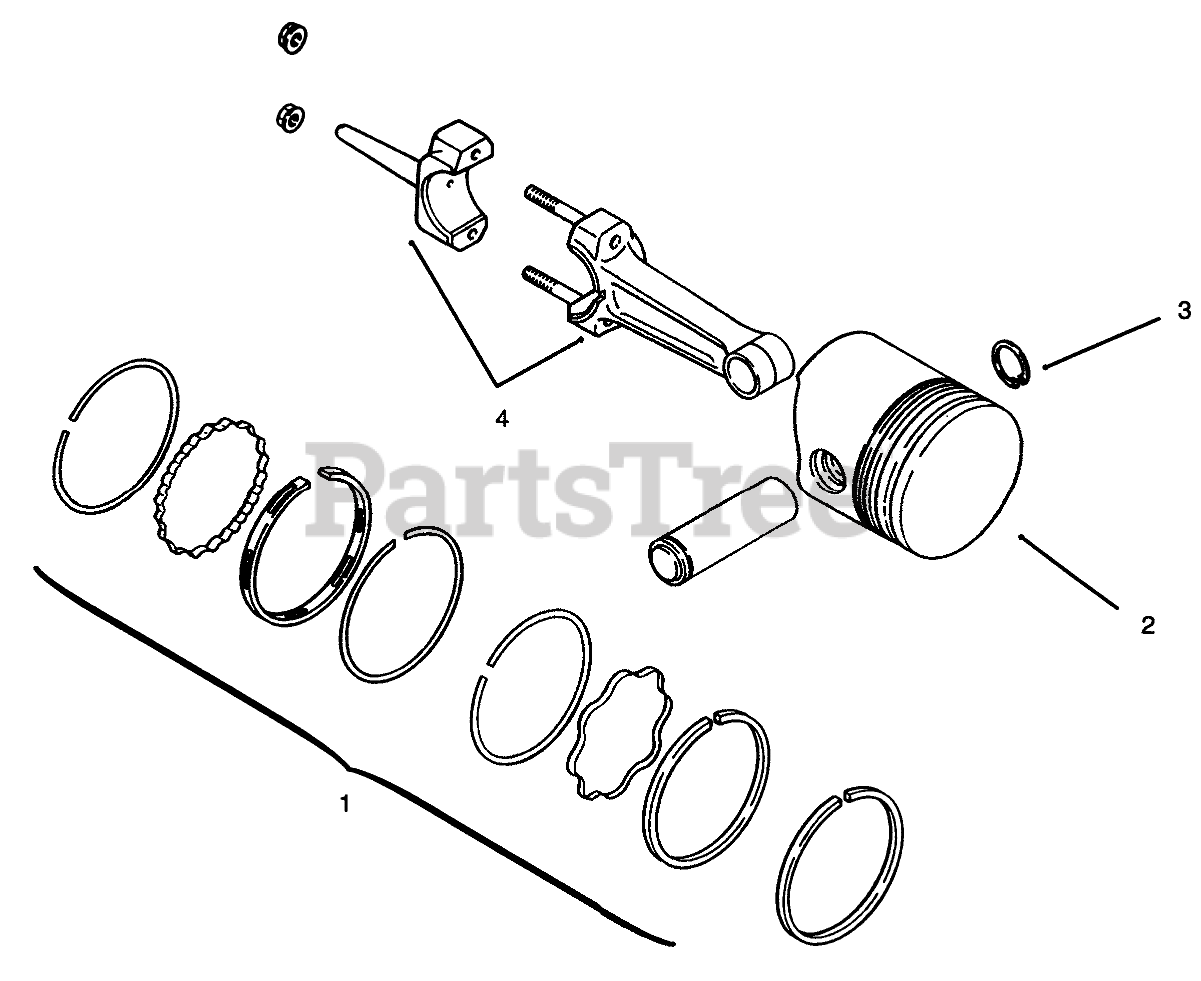

PISTON AND RINGS Parts Diagram

  • Title

1

Toro 47-108-01

Set-Ring STD .003 12hp

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

1

Toro 47-108-02

Set-Ring .010

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

1

Toro 47-108-03

Set-Ring .020

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

1

Toro 47-874-20

Piston-Ring Set .030

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

2

Toro 47-874-14

Piston-Ring Set .003

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

2

Toro 47-874-16

Piston-Ring Set STD 12hp

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

2

Toro 47-874-18

Piston-Ring Set .010

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

2

Toro 47-874-19

Piston-Ring Set .020

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

3

Toro 47-018-01

Retainer

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

4

Toro 45-067-24

Rod-Connecting STD

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable

Toro 25-468-04

Washer

Note: Kohler Engine Model MS12S-PS471527 - Obtain part-s from Kohler

$

$

Currently unavailable
