73363 (312-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Transmission 8-Speed 4 Pinion Parts Diagram

Garden Tractor

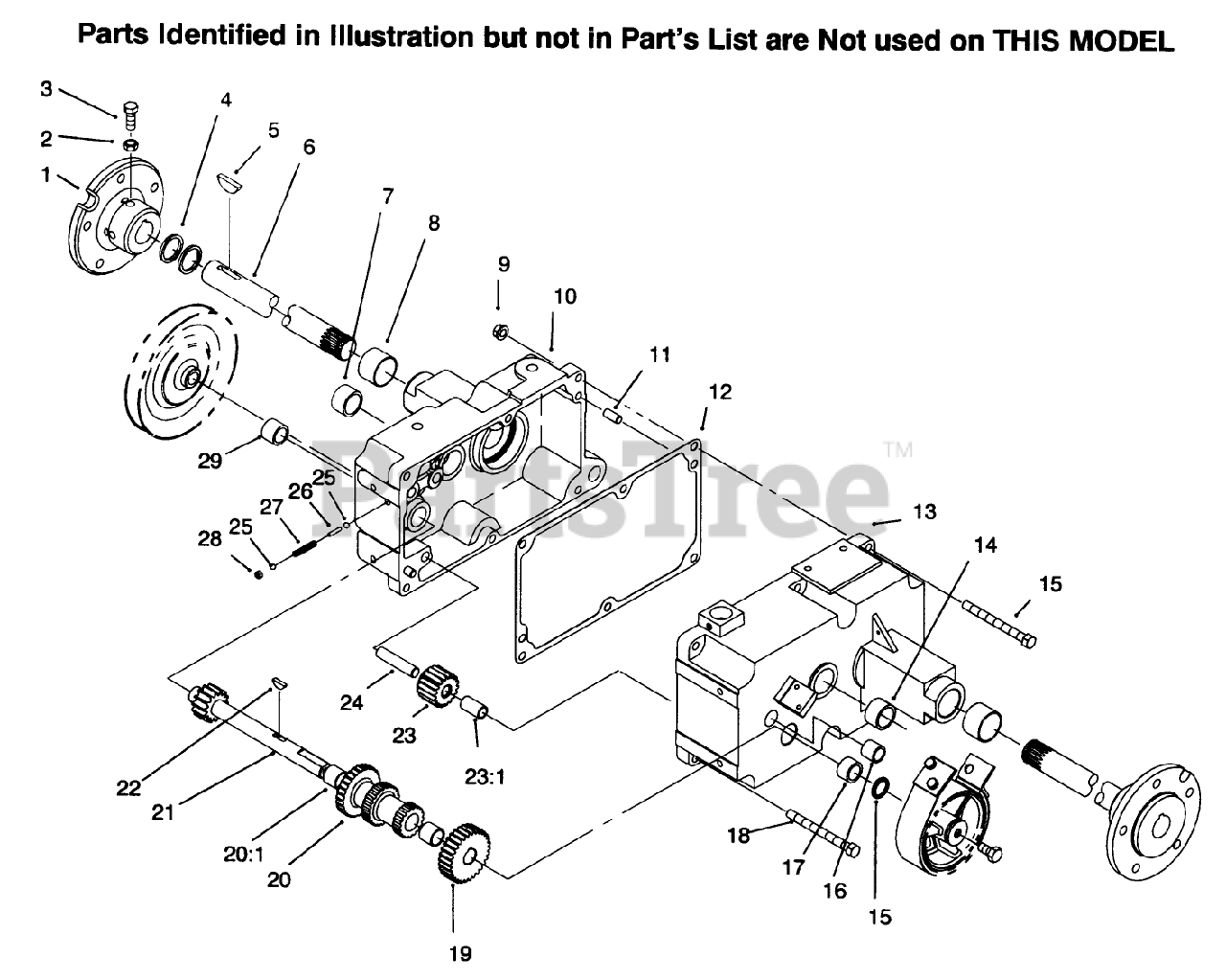

Transmission 8-Speed 4 Pinion Parts Diagram

  • Title

1

Toro 105763

See Supercession: 105763-03
(Superseded to 105763-03)

$206.99

$

In Stock, only 1 left!

0

2

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

3

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 13

0

4

Toro 100443

SEAL-OIL

$16.99

$

In Stock, Qty 11

0

5

Toro 937108

KEY-WOODRUFF

$6.49

$

In Stock, Qty 5

0

6

Toro 105875

AXLE-REAR

$457.99

$

Usually ships in 3-6 days

0

7

Toro 1532

BEARING-NEEDLE

$65.99

$

In Stock, only 2 left!

0

8

Toro 9416

BEARING

$

$

Not available

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 111200

See Supercession: 111200-01
(Superseded to 111200-01)

$

$

Not available

11

Toro 3915

PIN-DOWEL

$8.49

$

Usually ships in 3-6 days

0

12

Toro 3912

GASKET-TRANSMISSION

$11.99

$

In Stock, only 3 left!

0

13

Toro 111198

See Supercession: 95-5143-01
(Superseded to 95-5143-01)

$1249.99

$

Usually ships in 3-6 days

0

14

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 5

0

15

Toro 100441

SEAL-OIL

$10.99

$

In Stock, Qty 12

0

16

Toro 83-2890

DISCONTINUED

$

$

Not available

17

Toro 1523

BEARING-NEEDLE

$46.99

$

Usually ships in 3-6 days

0

18

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

20

Toro 7269

GEAR-CLUSTER

$

$

Not available

20:1

Toro 1504

BUSHING-BRONZE

$53.99

$

Usually ships in 3-6 days

0

21

Toro 83-3530

SHAFT-CLUSTER

$611.99

$

Usually ships in 3-6 days

0

23

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$177.99

$

Usually ships in 3-6 days

0

24

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

26

Toro 5614

PIN-SHIFT

$

$

Not available

28

Toro 1243

CUP-PLUG

$6.49

$

In Stock, Qty 7

0

29

Toro 1529

BEARING-NEEDLE

$55.99

$

Usually ships in 3-6 days

0

58

Toro 7418

WASHER-THRUST

$7.99

$

In Stock, only 4 left!

0
