73363 (312-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) HOODSTAND ELECTRICAL HOUSING & WIRE HARNESS Parts Diagram

Garden Tractor

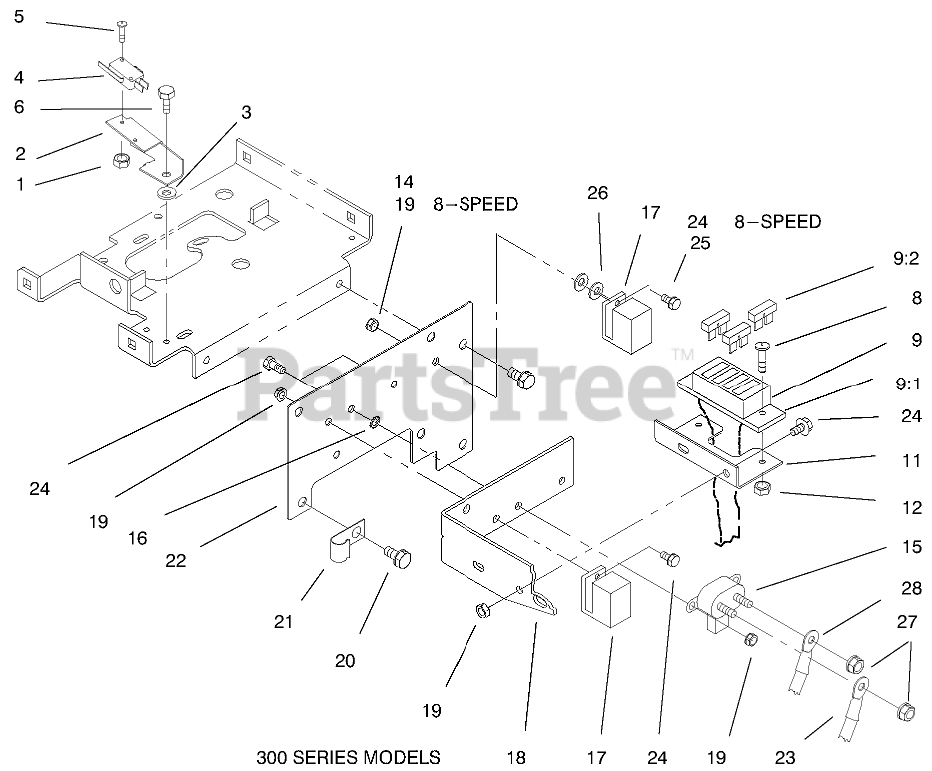

HOODSTAND ELECTRICAL HOUSING & WIRE HARNESS Parts Diagram

  • Title

1

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

2

Toro 115411

BRACKET-SWITCH

$

$

Not available

3

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

4

Toro 111332

SWITCH

$11.99

$

In Stock, Qty 16

0

5

Toro 9104784

SCREW-PHL 4-40X1 1/4

$1.49

$

Usually ships in 3-6 days

0

6

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 16

0

8

Toro 9107944

SCREW-PAN

$1.49

$

Usually ships in 3-6 days

0

9

Toro 79-3580

WIRING-HARNESS & DIA

$

$

Not available

9:1

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$21.99

$

In Stock, only 3 left!

0

9:2

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 6

0

9:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, only 2 left!

0

9:2

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

11

Toro 117331-03

FUSE HOLDER

$

$

Not available

12

Toro 9157404

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

15

Toro 92-9845

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, Qty 11

0

16

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

17

Toro 116397

RELAY

$33.99

$

In Stock, only 4 left!

0

18

Toro 109554-03

BRACKET-BELT (BLACK)

$19.99

$

Usually ships in 3-6 days

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 9266944

Bolt
(Superseded to 92-6694)

$

$

Not available

21

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

22

Toro 78-3020-03

PLATE-FRONT HOODS (BLACK)

$

$

Not available

23

Toro 111069

ASSY WIRE

$

$

Not available

24

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

27

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

28

Toro 111074

CABLE-BLACK

$25.99

$

Usually ships in 3-6 days

0
