73363 (312-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) IGNITION SYSTEM Parts Diagram

Garden Tractor

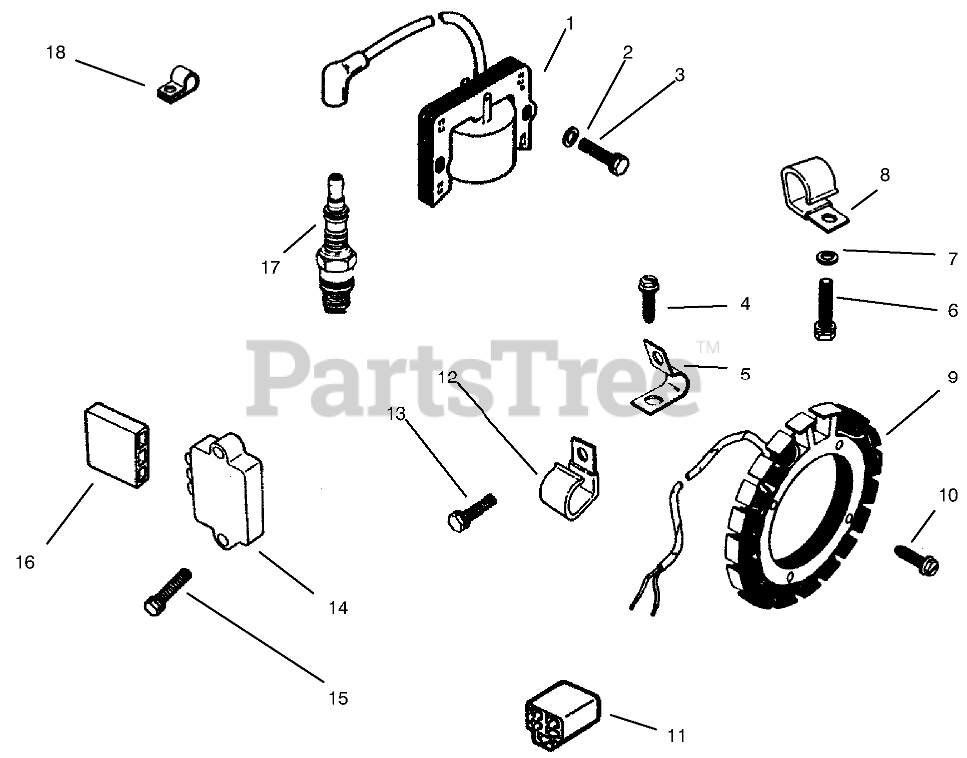

IGNITION SYSTEM Parts Diagram

  • Title

1

Toro 47-584-02

Module-Ignition

$

$

Currently unavailable

2

Kohler X-25-79

Washer
(Superseded to X-25-79-S)

$3.99

$

In Stock, only 2 left!

0

3

Kohler X-156-1

Screw
(Superseded to X-67-51-S)

$3.49

$

Usually ships in 2-5 days

0

4

Kohler X-67-59

Screw-Hex Hd
(Superseded to X-67-59-S)

$

$

Not available

5

Kohler X-728-1

Clip
(Superseded to X-728-1-S)

$2.49

$

Usually ships in 2-5 days

0

6

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

7

Kohler X-25-72

Washer
(Superseded to X-25-72-S)

$3.99

$

In Stock, only 1 left!

0

8

Toro 255173

Clip

$

$

Currently unavailable

9

Kohler 237878

Stator
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 9

0

10

Kohler X-67-51

Screw
(Superseded to X-67-51-S)

$3.49

$

Usually ships in 2-5 days

0

11

Toro 48-155-01

Connector

$

$

Currently unavailable

12

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

13

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

14

Toro 25-755-03

Regulator-Recifier

$

$

Currently unavailable

14

Toro 41-403-05

Regulator-Recifier

$

$

Currently unavailable

15

Kohler X-132-4

Screw
(Superseded to X-132-4-S)

$3.99

$

Usually ships in 2-5 days

0

15

Kohler X-132-5

Screw
(Superseded to X-132-5-S)

$3.49

$

In Stock, only 1 left!

0

16

Kohler 236602

Connector
(Superseded to 236602-S)

$31.99

$

In Stock, only 3 left!

0

17

Toro 235041-2

Plug-Spark

$

$

Currently unavailable

18

Kohler 210281

Clip-Cable
(Superseded to 210281-S)

$7.49

$

Usually ships in 2-5 days

0

Toro 47-518-36

Lead-Regulator

$

$

Currently unavailable

Toro 47-518-43

Lead Wire

$

$

Currently unavailable
