73363 (312-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) WHEEL ASSEMBLIES Parts Diagram

Garden Tractor

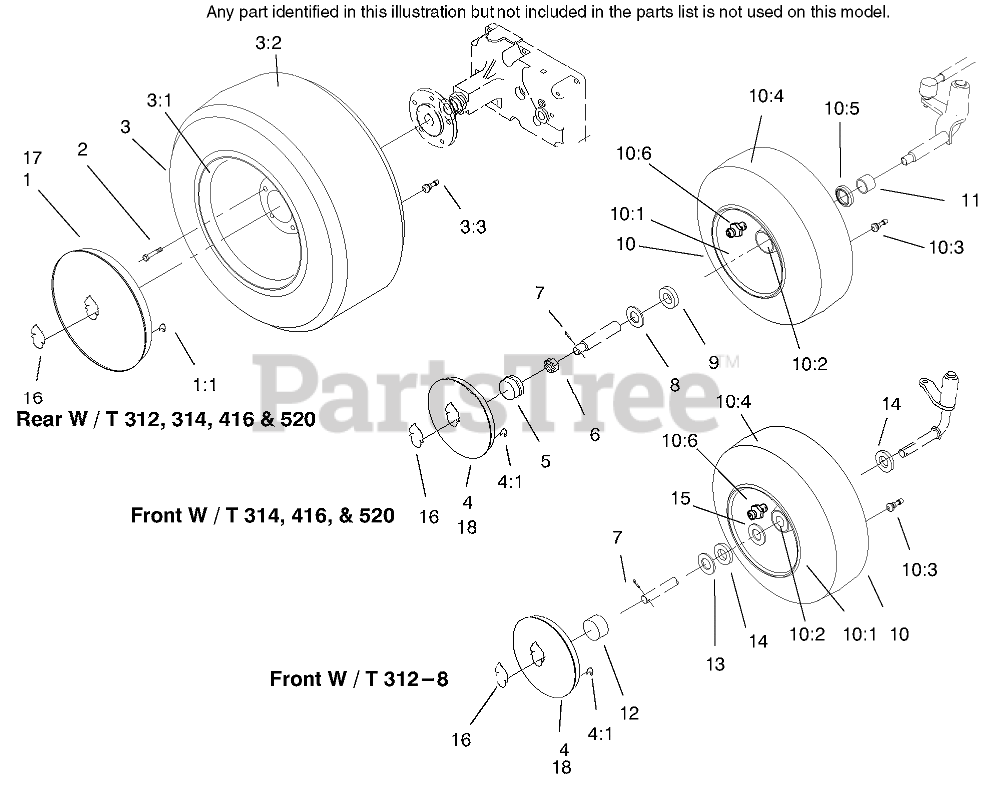

WHEEL ASSEMBLIES Parts Diagram

  • Title

2

Toro 83-2720

BOLT-LUG

$3.99

$

Usually ships in 3-6 days

0

3

ASM-Wheel & Tire

$

$

Not available

3:1

Toro 111516

WHEEL

$308.99

$

Usually ships in 3-6 days

0

3:2

Toro 116742

TIRE-23X8.50-12 2PLY

$

$

Not available

3:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 12

0

7

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

10

Toro 117289

ASM-Wheel & Tire
(Superseded to 99-5378)

$

$

Not available

10:1

Toro 117285

WHEEL ASM

$

$

Not available

10:2

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, Qty 15

0

10:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 12

0

10:4

Toro 116884

TIRE-15 X 6.00-6

$136.99

$

Usually ships in 3-6 days

0

10:6

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

Toro 100079

TUBE

Note: Not illustrated

$

$

Not available

Toro 7007

TUBE-INNER
(Superseded to 231-90)

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

12

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

13

Toro 109114

WASHER-WHEEL

$3.49

$

In Stock, Qty 8

0

14

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

15

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0
