73380 (312-8) - Toro Garden Tractor (SN: 039000001 - 039999999) (1993) WHEELS AND TIRES Parts Diagram

Garden Tractor

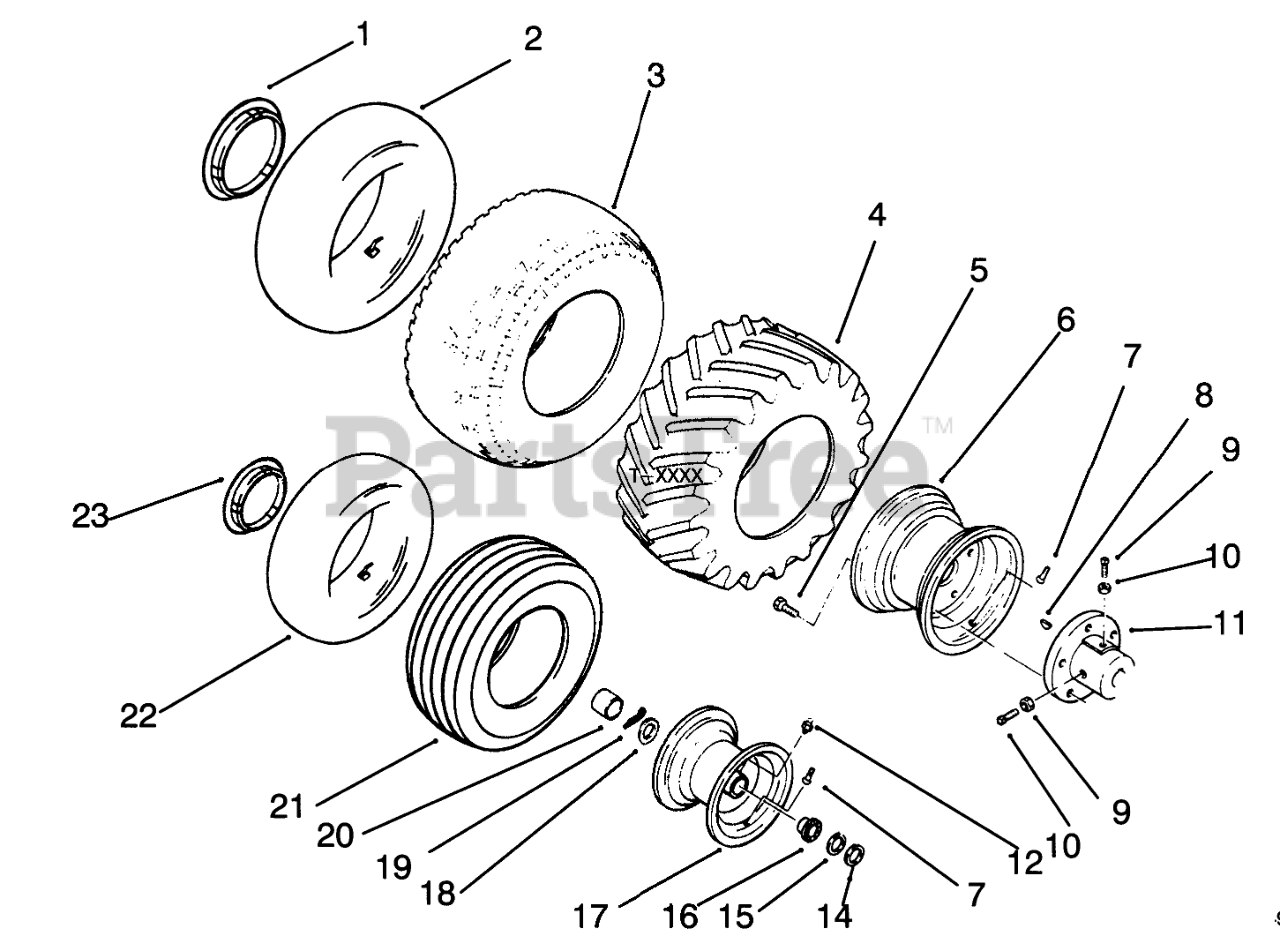

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 114428

12"-HUB CAP LOGO

$

$

Not available

2

Toro 7007

TUBE-INNER
(Superseded to 231-90)

$110.99

$

Usually ships in 3-6 days

0

Toro 100291

Tube Cleat Tires
(Superseded to 231-90)

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

3

Toro 116744

TIRE
(Superseded to 116-5363)

$226.99

$

Usually ships in 3-6 days

0

4

Toro 7607

Tire-Cleat, Rear
(Superseded to 110934)

$

$

Not available

5

Toro 83-2720

BOLT-LUG

$3.99

$

Usually ships in 3-6 days

0

6

Toro 111516

WHEEL

$308.99

$

Usually ships in 3-6 days

0

7

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

8

Toro 937108

KEY-WOODRUFF

$4.99

$

In Stock, Qty 11

0

9

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

10

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

11

Toro 105763

Hub Rear
(Superseded to 105763-03)

$165.99

$

Usually ships in 3-6 days

0

12

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

14

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

15

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, Qty 20+

0

17

Toro 117285

Wheel Assembly-Front (Incl. Ref. #1, 10, & 11)

$

$

Not available

18

Toro 109114

WASHER-WHEEL

$3.49

$

In Stock, Qty 9

0

19

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

20

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

21

Toro 116884

TIRE-15 X 6.00-6

$136.99

$

Usually ships in 3-6 days

0

22

Toro 100079

TUBE

$

$

Not available

23

Toro 114426

6"-HUB CAP LOGO

$

$

Not available

Toro 78-1660

Rim-Front
(Superseded to 93-9801)

Note: Not illustrated

$257.99

$

Usually ships in 3-6 days

0

Toro 116743

ASM-Wheel& Tire

Note: Not illustrated

$

$

Not available

Toro 110934

ASSY WHEEL & TIRE

Note: Not illustrated

$

$

Not available

Toro 110933

ASSY WHEEL & TIRE

Note: Not illustrated

$

$

Not available

Toro 117289

ASM-Wheel & Tire
(Superseded to 99-5378)

Note: Not illustrated

$

$

Not available

Toro 114427

8"-HUB CAP LOGO

Note: Not illustrated

$

$

Not available
