734008 - Ariens Rear Drive Kit Rear PTO Drive Parts Diagram

Rear Drive Kit

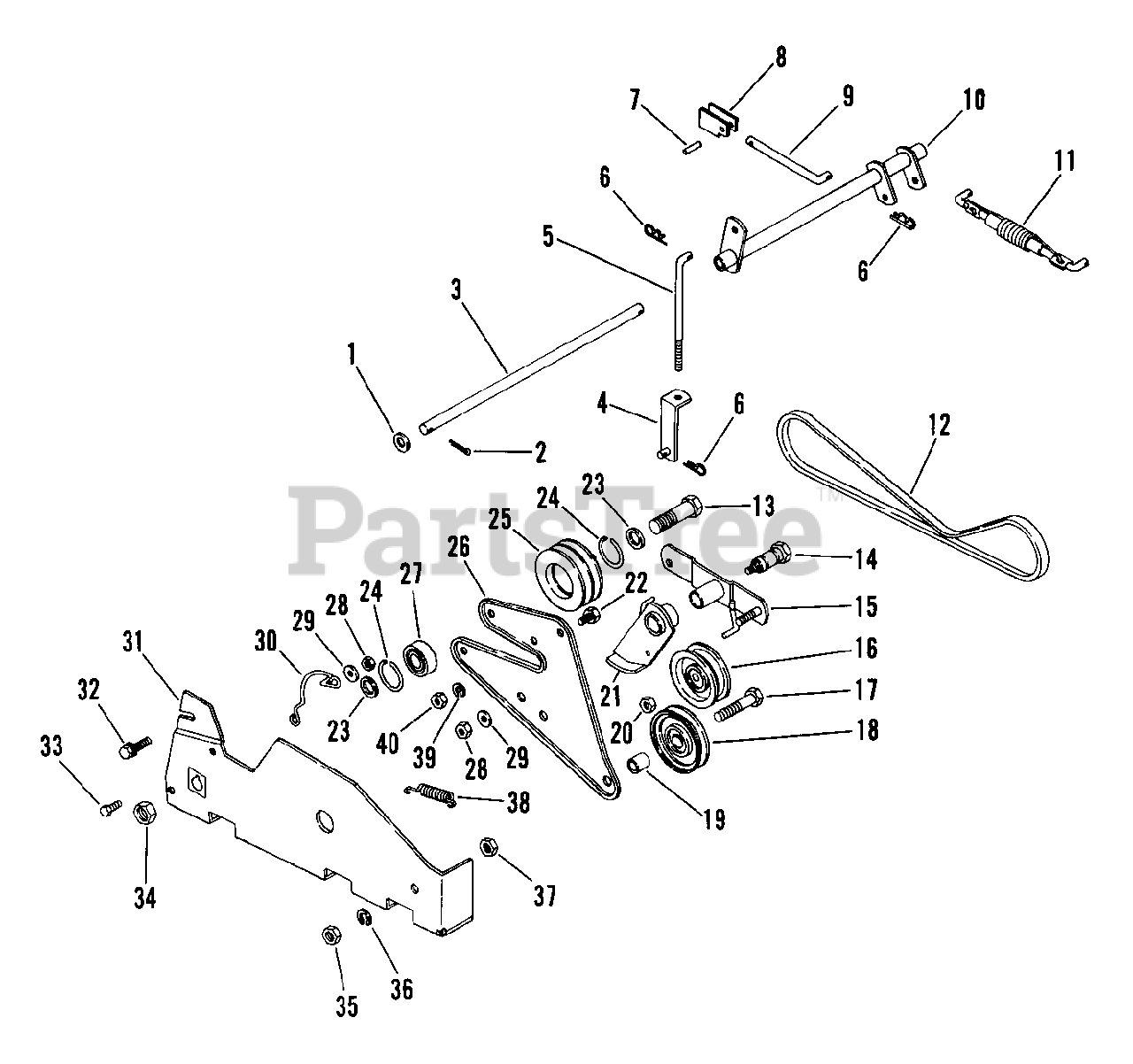

Rear PTO Drive Parts Diagram

  • Title

1

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

3

Ariens 03407800

PIVOT SHAFT

$

$

Not available

4

Ariens 03443200

CLUTCH LINK

$

$

Not available

5

Ariens 03442700

ROD

$

$

Not available

6

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 16

0

7

Ariens 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 5

0

8

Ariens 03429700

LATCH

Note: (02)

$

$

Not available

9

Ariens 03429600

ROD

Note: (02)

$

$

Not available

10

Ariens 03443000

CLUTCH PIVOT

$

$

Not available

11

Ariens 53402700

SPRING ASSEMBLY

$

$

Not available

12

Ariens 07214700

V-BELT, HA-RAW EDGE

$

$

Not available

13

Ariens 05910900

BLT-HEX .50-20X1.50 GR2

$

$

Not available

14

Ariens 03442600

PIVOT

$

$

Not available

15

Ariens 03443100

IDLER ARM

$

$

Not available

16

Ariens 07311100

IDLER-FLAT 2.75 X .38 DAYCO

$39.99

$

In Stock, only 3 left!

0

17

Ariens 05916400

BLT-HEX .50-13X2.50 PL GR2 FTH

$

$

Not available

18

Ariens 07310400

IDLER-V 3.50 X .50 CAPITOL

$21.99

$

Usually ships in 4-12 days

0

19

Ariens 03406400

HUB, .50 X .75 X .84

Note: (02)

$

$

Not available

20

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03442900

BELT BRAKE

$

$

Not available

22

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

23

Ariens 06406200

WSHR-FL-STL .754X1.125X.062 PL
(Superseded to 06441400)

$0.99

$

In Stock, Qty 6

0

24

Ariens 05707500

RG-RTNG-INT 1.781X.062

$9.49

$

In Stock, only 1 left!

0

25

Ariens 03442800

DOUBLE SHEAVE

$

$

Not available

26

Ariens 03442400

DRIVE MOUNT

$

$

Not available

27

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 20+

0

28

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

30

Ariens 03442300

BELT FINGER

$

$

Not available

31

Ariens 03442500

BELT GUARD

$

$

Not available

32

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

$

$

Not available

33

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

34

Ariens 06505300

NUT-LK-CTR .75-10 PL

$

$

Not available

35

Ariens 06501700

NUT-JAM .50-13 PL
(Superseded to 06529300)

$1.49

$

In Stock, Qty 15

0

36

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

37

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 3 left!

0

38

Ariens 08322800

SG-TENS .041X.50X3.25 WLD 3.6

$

$

Not available

39

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 18

0

40

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0
