734012 - Gravely Front Mount Kit for GEM Tractor FRONT MOUNT KIT Parts Diagram

Front Mount Kit for GEM Tractor

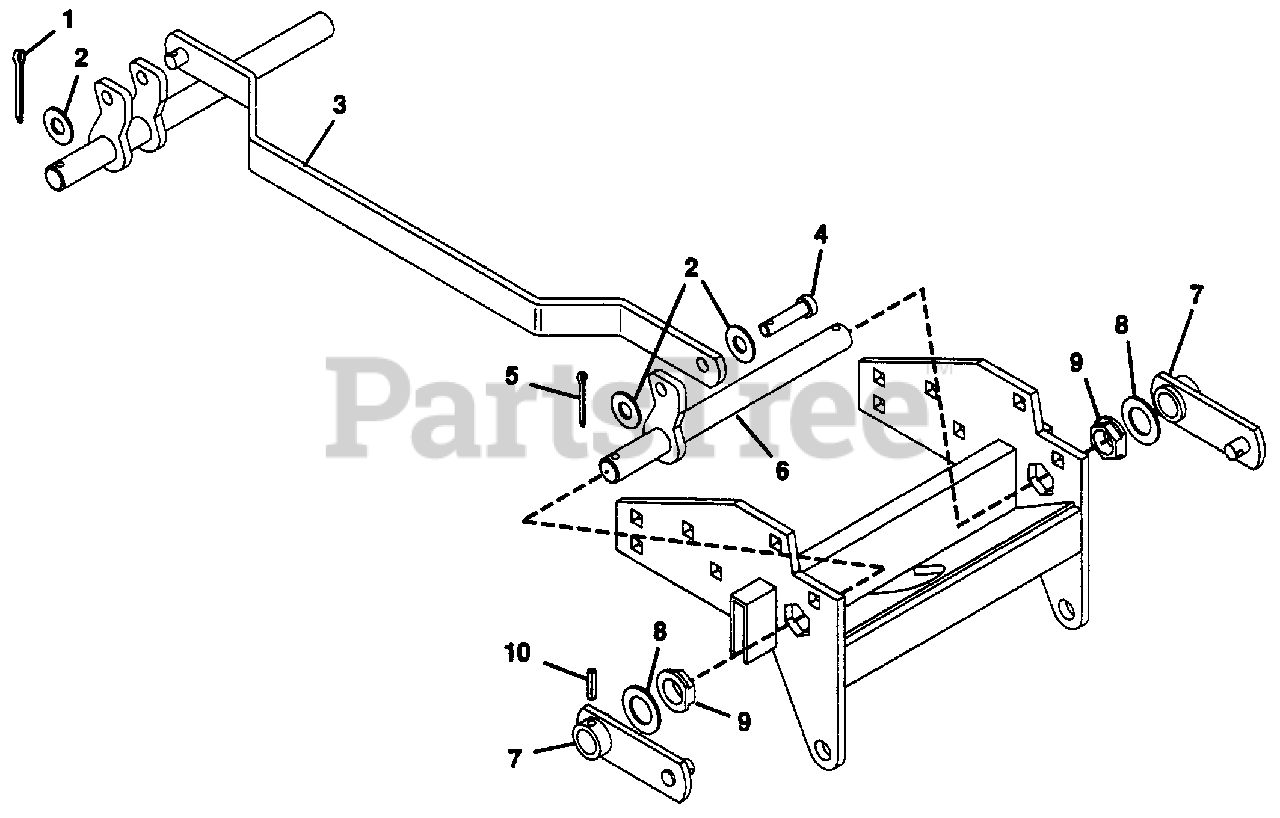

FRONT MOUNT KIT Parts Diagram

  • Title

1

Gravely 187988

PIN-CTR .18X1.25 EXTPRSQCT YZ
(Superseded to 06712700)

$2.49

$

In Stock, only 2 left!

0

2

Gravely 415543

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 7

0

3

Gravely 052601

WLDMT,LIFT LINK
(Superseded to 03347400)

$

$

Not available

4

Gravely 049663

PIN-CLEV .494X.875 PLAIN
(Superseded to 06809400)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 137185

PIN-CTR .12X1.00 EXTPRSQCT YZ
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

6

Gravely 050261

FRONT PIVOT
(Superseded to 03452100)

$

$

Not available

7

Gravely 050262

LIFT ARM - FRONT
(Superseded to 03452000)

$

$

Not available

8

Gravely 017959

WSHR-THRST 1.55X1.002X.093
(Superseded to 06426500)

$25.99

$

In Stock, only 2 left!

0

9

Gravely 050259

BSHG-FLG 1.000X1.25X.49X1.56HX
(Superseded to 05513800)

$

$

Not available

10

Gravely 413315

PIN-ROLL .250X1.50 PL
(Superseded to 05808500)

$

$

Not available
