734017 - Gravely 48" Dethatcher for GEM Tractor Channel, Pivot And Wheels Parts Diagram

48" Dethatcher for GEM Tractor

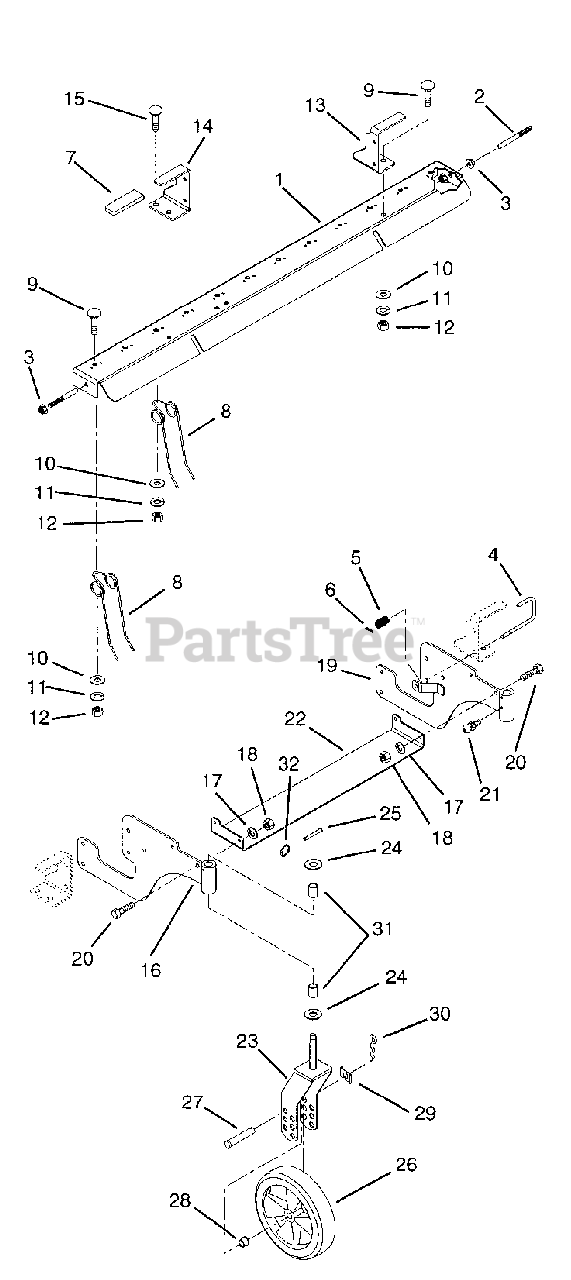

Channel, Pivot And Wheels Parts Diagram

  • Title

1

Gravely 03359851

Channel (73401700)

Note: (73401700)

$

$

Not available

2

Gravely 03062400

Rod (73401700)

Note: (73401700)

$

$

Not available

3

Gravely 06530100

Nut-Lkg-Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

4

Gravely 03669200

J-Pin

$

$

Not available

5

Gravely 039611

Spring .63 x .53
(Superseded to 08300028)

$4.99

$

In Stock, Qty 8

0

6

Gravely 05808100

Roll Pin .094 x .750

$0.99

$

In Stock, only 4 left!

0

7

Gravely 045374

Grip
(Superseded to 07509400)

$

$

Not available

8

Gravely 01136100

Tine (73401700)

Note: (73401700)

$22.99

$

In Stock, only 1 left!

0

9

Gravely 06215700

Bolt-Rnd Hd Sq Nk .31-18 x .75 (73401700)
(Superseded to 06200232)

Note: (73401700)

$2.49

$

In Stock, Qty 8

0

10

Gravely 06437500

Washer-Flat-Stl .328 x 1.0 x .094 (73401700)
(Superseded to 06401027)

Note: (73401700)

$3.99

$

In Stock, only 3 left!

0

11

Gravely 06308600

Washer-Lck .312 x .097 (73401700)
(Superseded to 06300119)

Note: (73401700)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06529200

Nut-Hex .31-18 (73401700)
(Superseded to 06500938)

Note: (73401700)

$0.99

$

In Stock, Qty 16

0

13

Gravely 03669151

Bracket-Channel Pvt L

$

$

Not available

14

Gravely 03669051

Bracket-Channel Pvt R

$

$

Not available

15

Gravely 06216100

Bolt-Rnd Hd Sq Nk .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

16

36694351

Support-Channel A

$

$

Not available

17

Gravely 06308400

Washer-Lck .250 x .077
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

18

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

19

Gravely 03669451

Support-Channel L

$

$

Not available

20

Gravely 05946800

Bolt-Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

21

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

22

Gravely 03660951

Brace

$

$

Not available

23

Gravely 01169351

Wheel Yoke Weldment

$219.99

$

Usually ships in 4-12 days

0

24

Gravely 06445100

Washer-Flat-St I .630 x 1.25

$2.49

$

In Stock, only 3 left!

0

25

Gravely 06814600

Pin-Clevis .25 x 1.75

$3.99

$

In Stock, Qty 7

0

26

Gravely 07149900

Wheel .5 Bore 1.5 Hub

$25.99

$

In Stock, Qty 11

0

27

Gravely 01168300

Clevis Pin

$9.49

$

Usually ships in 4-12 days

0

28

Gravely 035958

Bushing-Flange
(Superseded to 05502100)

$3.99

$

In Stock, Qty 9

0

29

Gravely 01168100

Axle Tab

$16.99

$

In Stock, Qty 6

0

30

Gravely 06714000

Pin-Hair Int .15 x .43 x 2.75

$2.99

$

In Stock, Qty 9

0

31

Gravely 05504700

Bushing-Sleeve

$11.99

$

In Stock, only 1 left!

0

32

Gravely 01169200

Kickout Ring
(Superseded to 01239800)

$2.49

$

In Stock, Qty 5

0
