73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Breather And Vent Parts Diagram

Garden Tractor

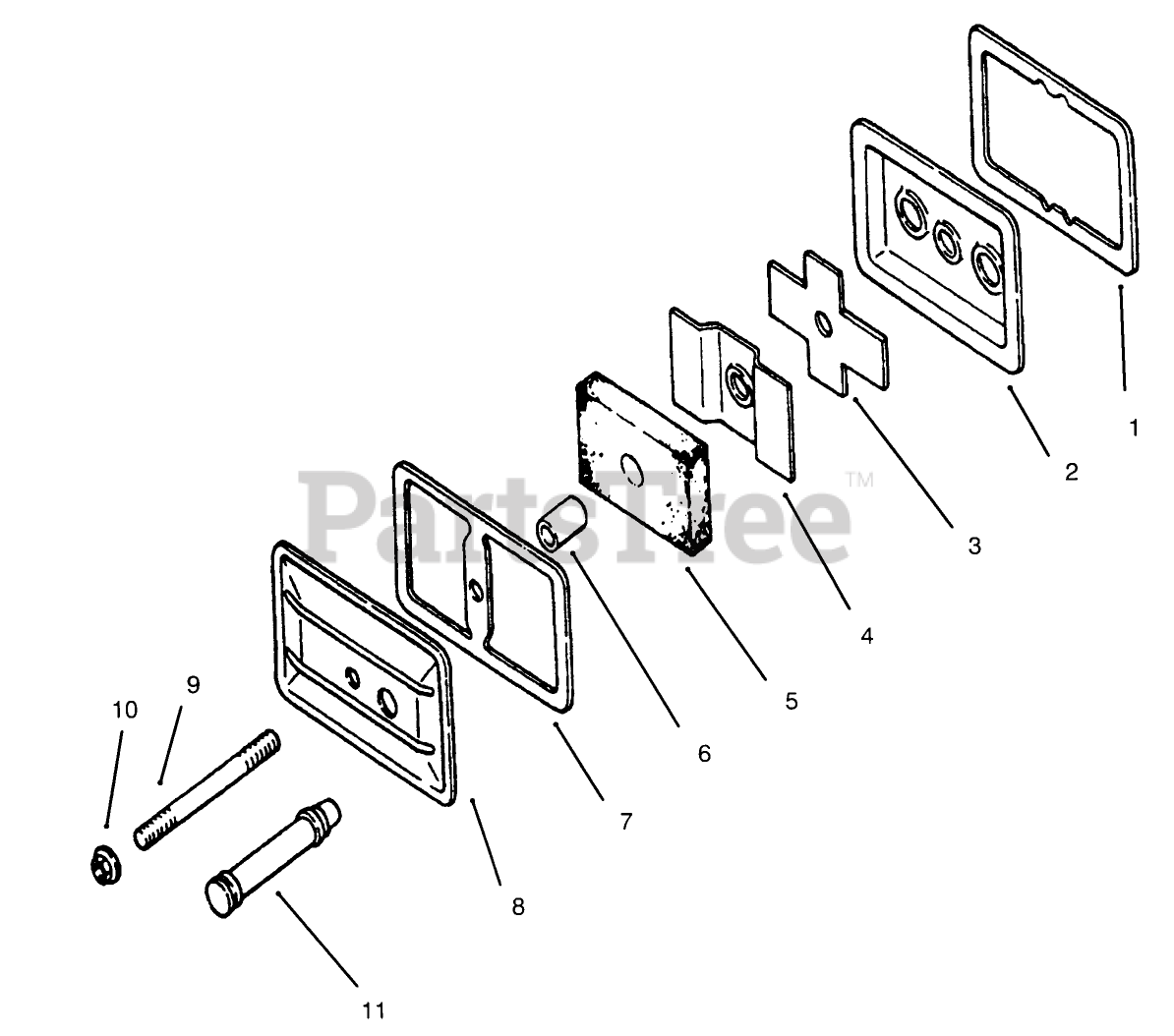

Breather And Vent Parts Diagram

  • Title

1

Toro 236765

Gasket

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

2

Toro 235631

Plate

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

3

Toro 235047

Reed

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

4

Toro 270146

Baffle

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

5

Toro 47-050-01

Filter

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

6

Toro 231032

Seal

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Not available

7

Toro 275144

Gasket

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

8

Toro 47-096-01

Cover

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

9

Toro 275220

Stud

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

10

Toro X-799-1

Palnut

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

11

Toro 47-326-03

Hose

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable
