73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) CARBURETOR Parts Diagram

Garden Tractor

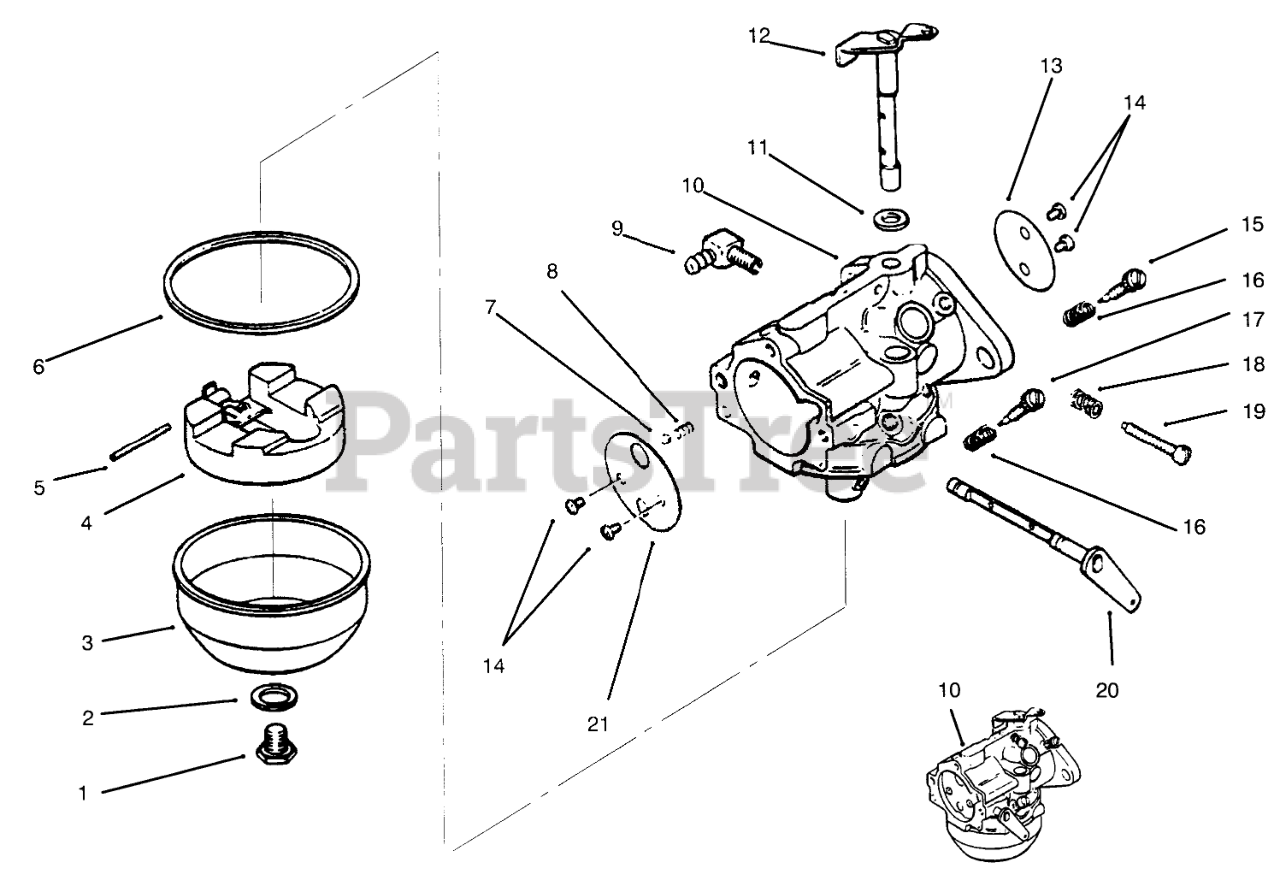

CARBURETOR Parts Diagram

  • Title

1

Toro 25-100-05

Screw

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

2

Toro 25-041-03

Gasket

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

3

Toro 25-104-01

Bowl-Fuel

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

4

Toro 25-757-09

Kit-Float

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

6

Toro 254-041-04

Gasket

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

7

Toro 25-194-01

Ball

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

8

Toro 25-089-03

Spring

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

10

Toro 47-853-20

Carburetor ASM Incl 5-8

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

10

Toro 47-853-29

Carburetor Complete

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

12

Toro 14-144-25

Shaft Lever/Seal Incl 11

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

12

Toro 457-144-21

Shaft Lever & Seal

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

13

Toro 47-146-10

Plate-Throttle

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

14

Toro 25-086-27

Screw

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

15

Toro 25-368-01

Needle-Idle Fuel Adj

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

16

Toro 25-089-02

Spring

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

17

Toro 25-368-03

Main-Needle

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

18

Toro 25-089-04

Spring-Adj

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

19

Toro 25-086-26

Screw-Idle Speed Adj

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

20

Toro 47-090-38

Shaft-Choke

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

21

Toro 47-146-08

Plate-Choke

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable
