73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) ENGINE Parts Diagram

Garden Tractor

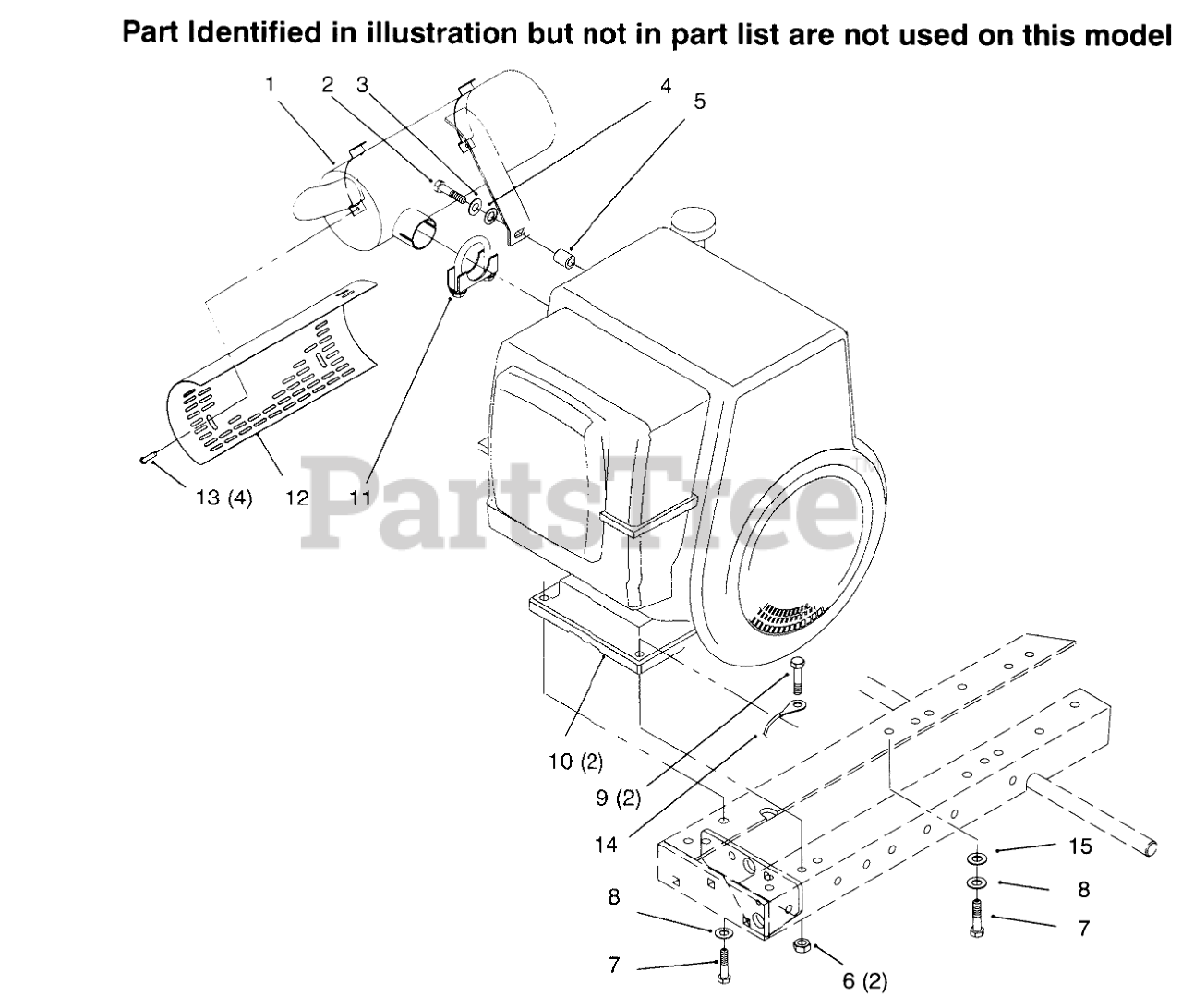

ENGINE Parts Diagram

  • Title

1

Toro 94-3739

MUFFLER

$485.99

$

Usually ships in 3-6 days

0

2

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 6876

SPACER

$

$

Not available

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

9

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 92-1532

Engine-14HP

$

$

Not available

11

Toro 106858

CLAMP-1 1/2
(Superseded to 2112-9)

$9.49

$

Usually ships in 3-6 days

0

12

Toro 94-3738

SHIELD-HEAT

$

$

Not available

13

Toro 9103312

SCREW

$2.49

$

In Stock, Qty 6

0

14

Toro 109910

WIRE GROUND

$4.99

$

Usually ships in 3-6 days

0

15

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0
