73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Flywheel Parts Diagram

Garden Tractor

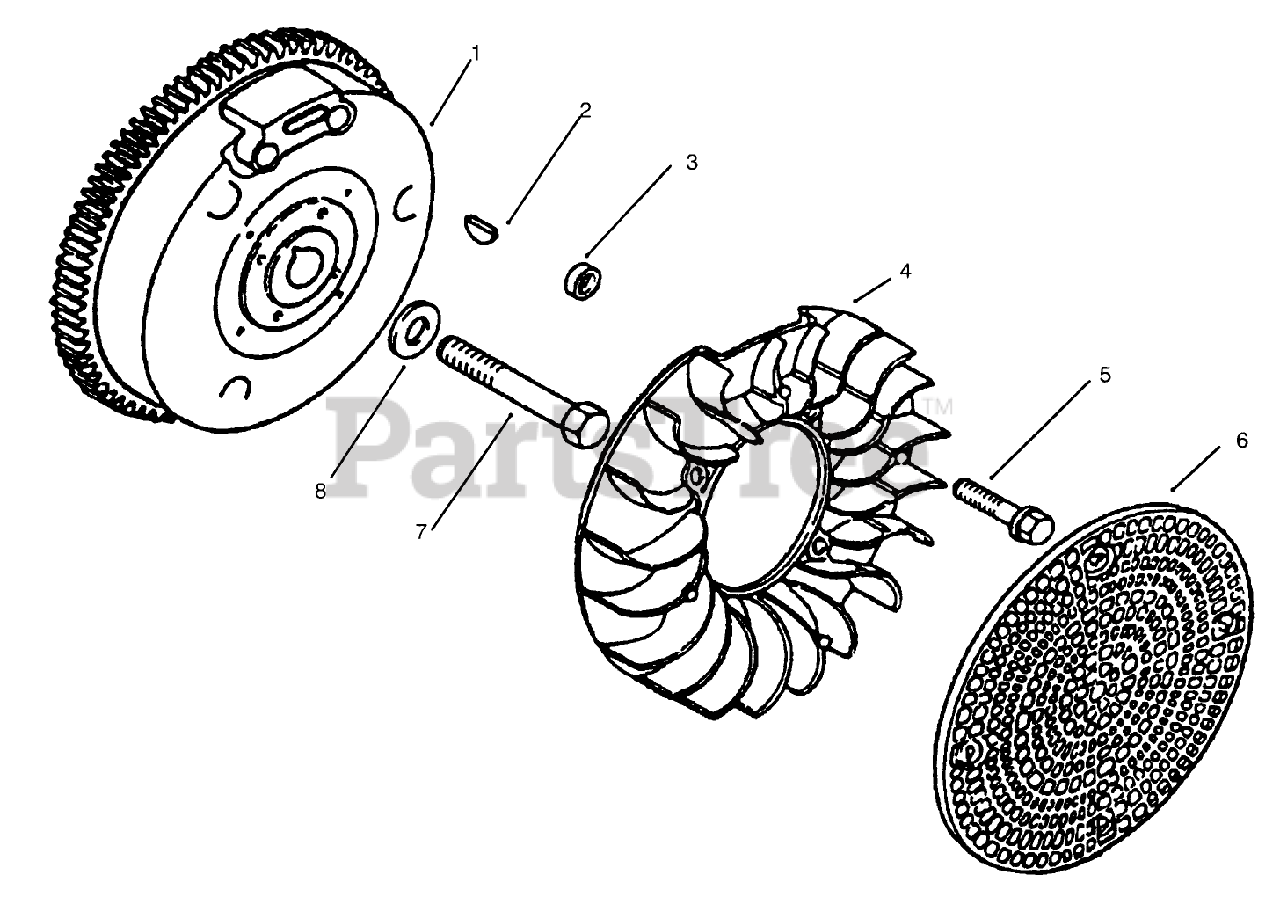

Flywheel Parts Diagram

  • Title

1

Toro 47-025-53

Flywheel

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

2

Toro X-46-3

Key-Woodruff

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

3

Toro 41-100-01

Spacer

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

4

Toro 25-157-01

Fan

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

5

Toro 25-086-21

Screw-Hex Hd

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

6

Toro 24-162-01

Screen

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

7

Toro 25-086-24

Screw

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

8

Toro 52-468-15

Washer

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable
