73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) FUEL TANK Parts Diagram

Garden Tractor

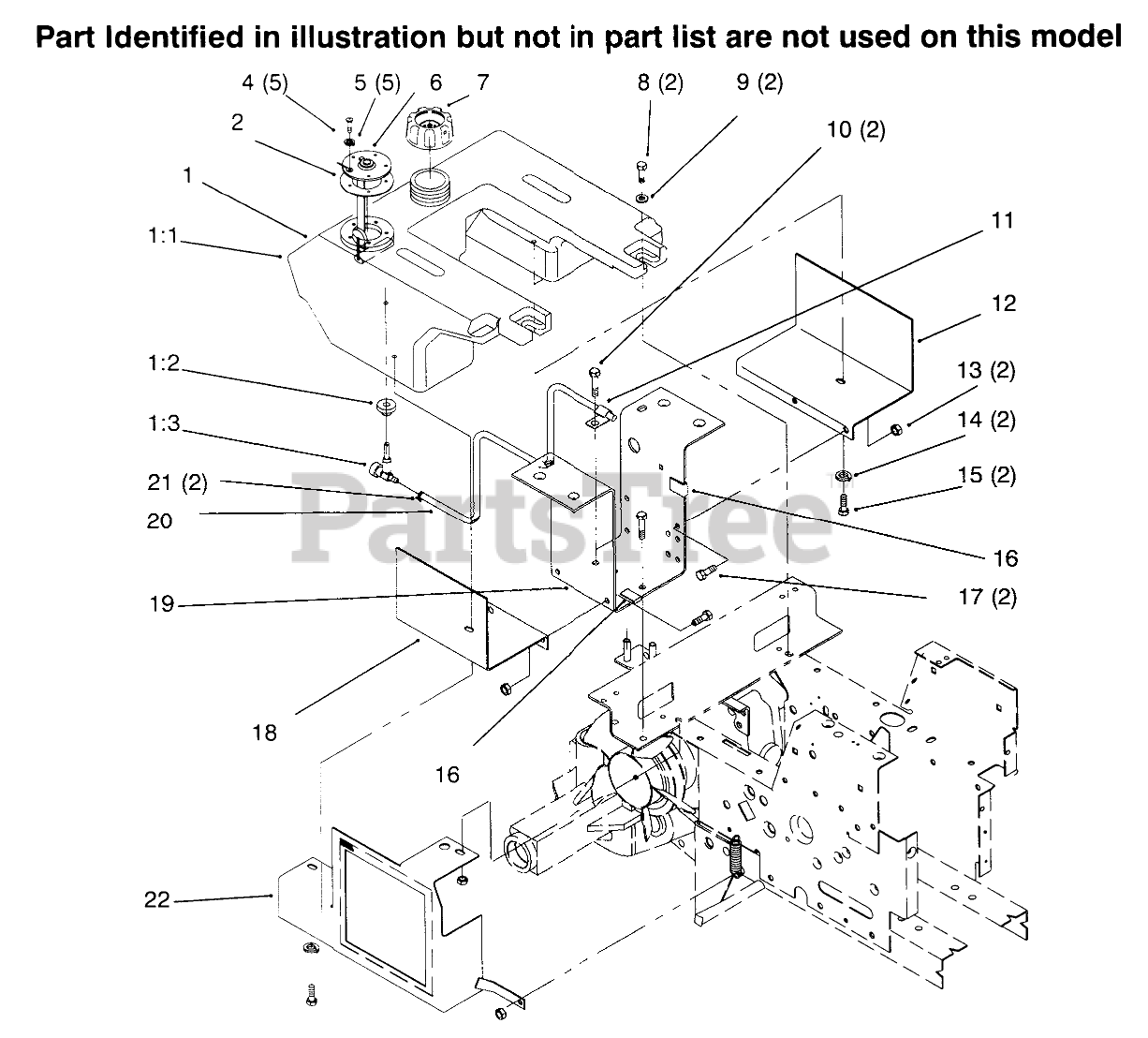

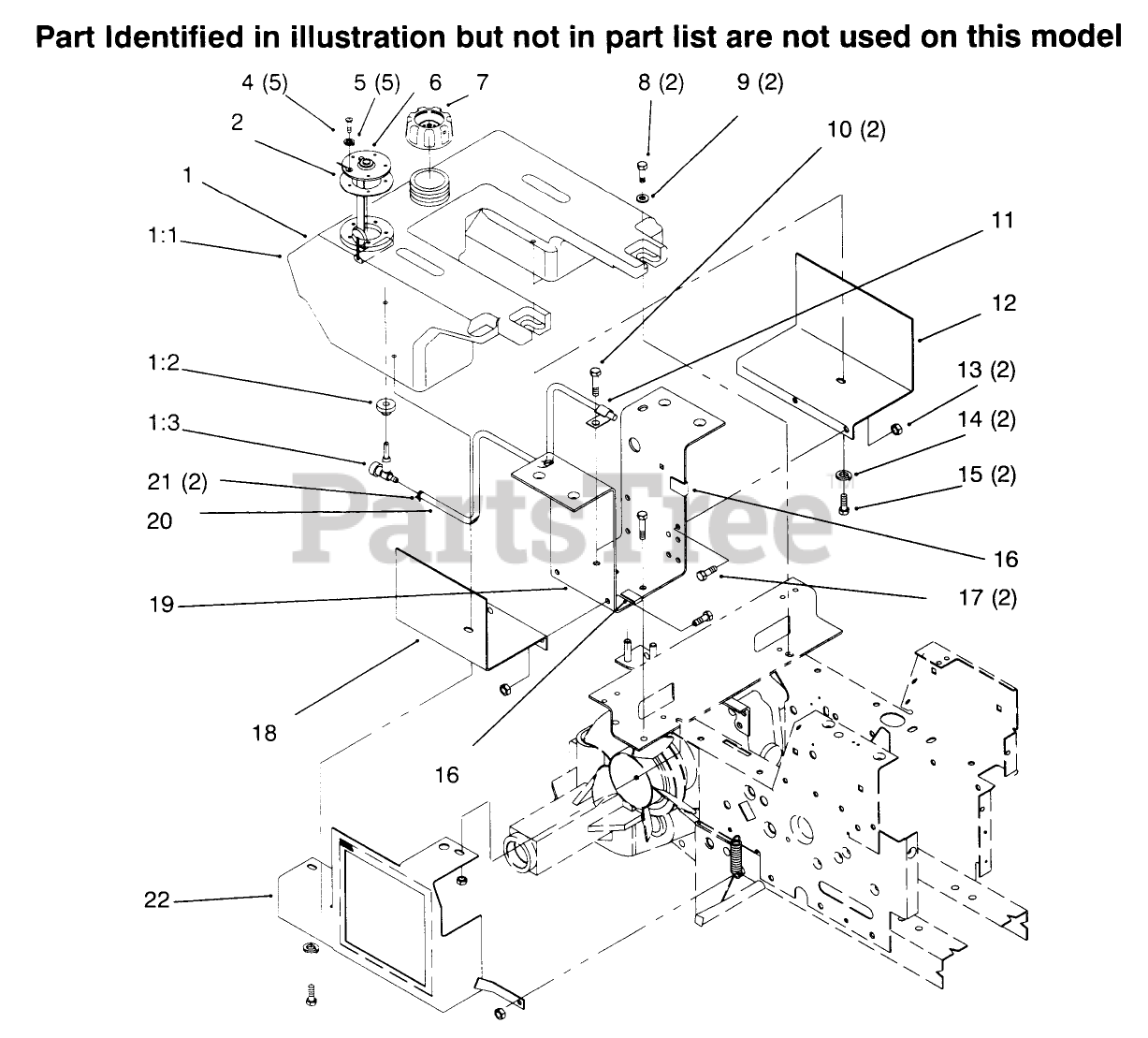

FUEL TANK Parts Diagram

  • Title

1

Toro 106234

TANK-FUEL

$390.99

$

Usually ships in 3-6 days

0

7

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

8

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

11

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

12

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$33.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$45.99

$

Usually ships in 3-6 days

0

19

Toro 79-4990

Bracket-Fender
(Superseded to 79-4990-03)

$108.99

$

Usually ships in 3-6 days

0

20

Toro 92-9511

Line-Fuel 62"
(Superseded to 92-9512)

$37.99

$

Usually ships in 3-6 days

0

21

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0
