73402 (314-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Starter Parts Diagram

Garden Tractor

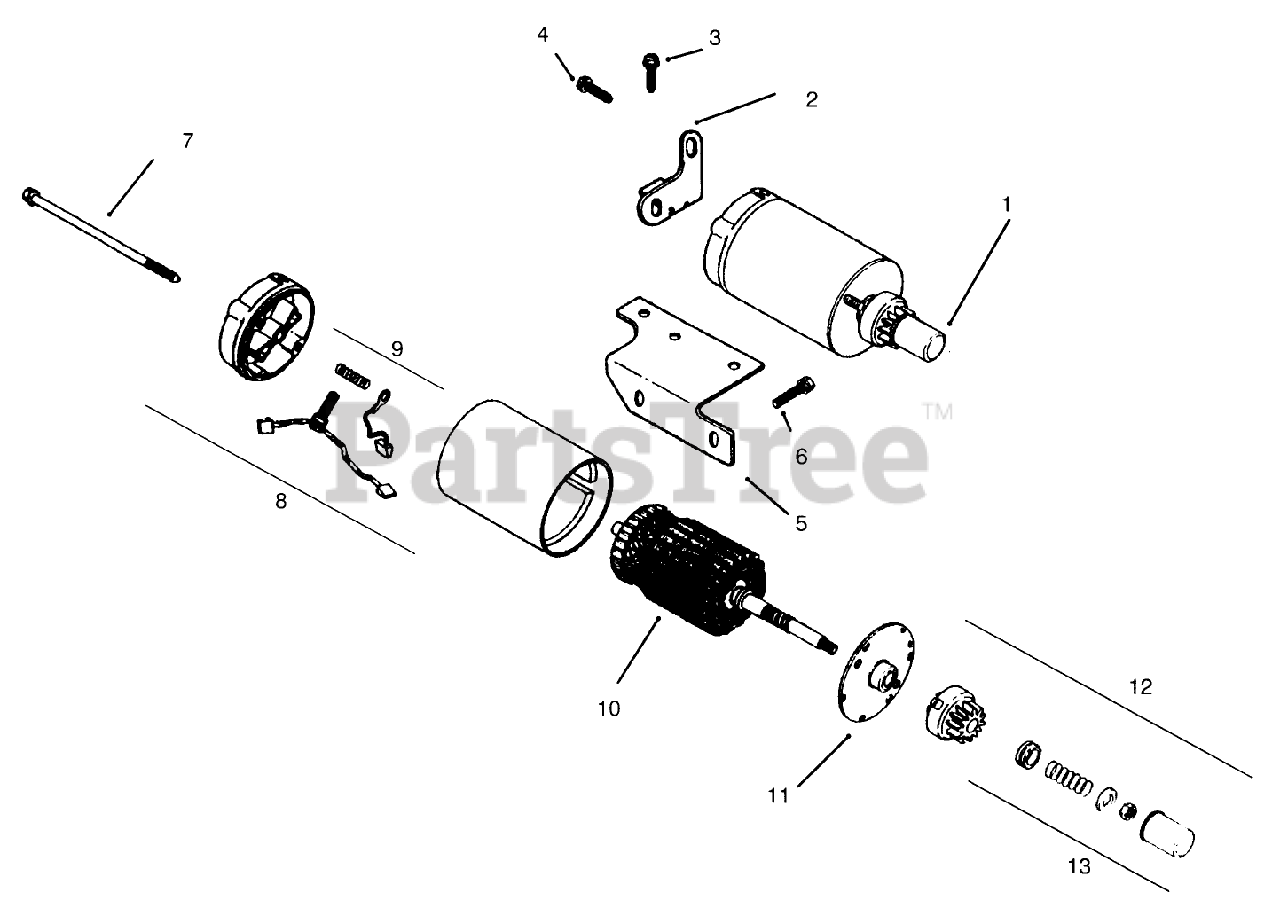

Starter Parts Diagram

  • Title

1

Toro 41-098-04

Starter ASM INC 9-13

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

2

Toro 45-126-17

Brace-Starter Tail

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

3

Toro X-67-62

Screw

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

4

Toro X-67-83

Screw

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

5

Toro 47-126-29

Bracket-Solenoid

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

6

Toro X-159-2

Screw

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

7

Toro 41-086-19

Bolt

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

8

Toro 41-227-04

End Cap ASM-INC 9

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

9

Toro 52-755-15

Kit-Brush

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

10

Toro 47-170-02

Armature

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

11

Toro 41-227-03

Cap-Drive End

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

12

Toro 47-755-07

Kit-Drive INC 13

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

13

Toro 7-755-13

Kit-Drive Parts

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

Toro 47-126-29

Bracket-Solenoid

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable

Toro X-159-2

Screw

Note: Kohler Engine Model M14S-TS601559 Obtain Parts from Kohler

$

$

Currently unavailable
