73403 (314-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) 314-H WIRE HARNESS ATTACHMENT & COMPONENT-S Parts Diagram

Garden Tractor

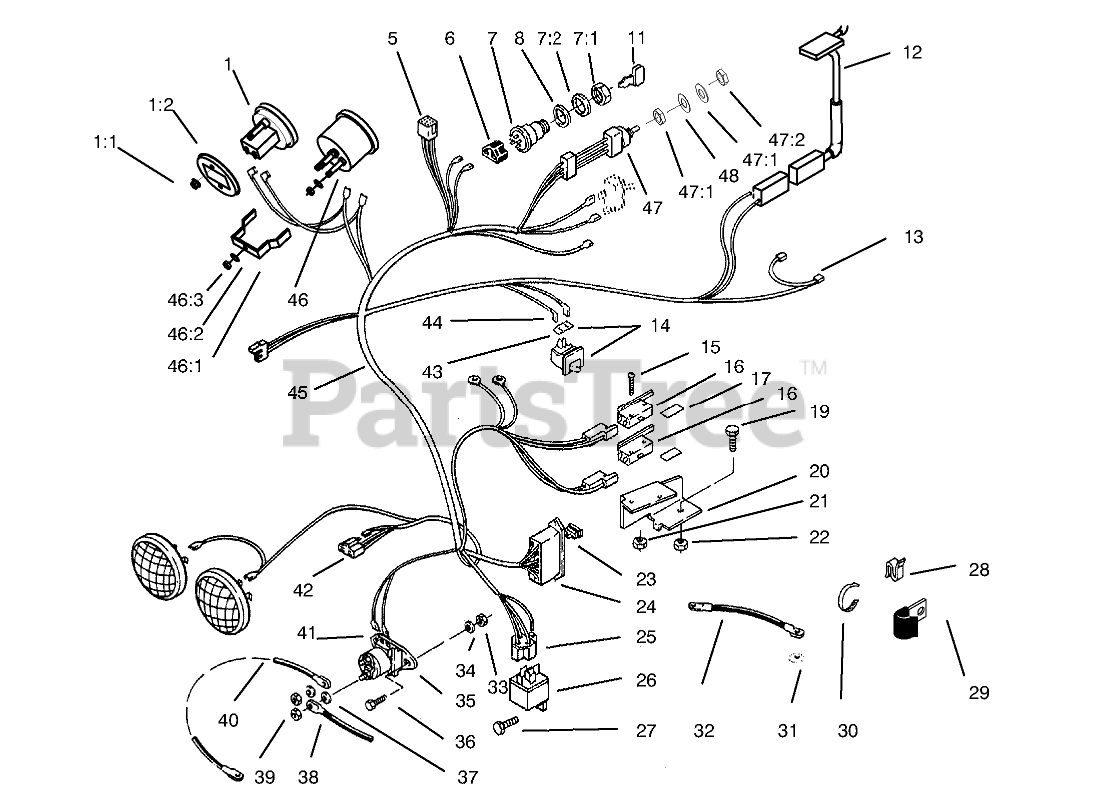

314-H WIRE HARNESS ATTACHMENT & COMPONENT-S Parts Diagram

  • Title

1

Toro 94-3723

Hourmeter
(Superseded to 66-2950)

$

$

Not available

1:1

Toro 32149-9

NUT-HEX, KEPS

$1.49

$

Usually ships in 3-6 days

0

1:2

Toro 94-1849

Retainer

$

$

Currently unavailable

5

Toro 102651

Terminal

$

$

Not available

6

Toro 104926

CONNECTOR BODY ELECT

$3.99

$

In Stock, only 2 left!

0

7

Toro 116338

KEY SWITCH ASM

$76.99

$

In Stock, Qty 5

0

7:1

Toro 101884

NUT

$7.49

$

In Stock, only 2 left!

0

7:2

Toro 920104

Washer-Lock

$

$

Currently unavailable

8

Toro 9202624

WASHER

$8.99

$

Usually ships in 3-6 days

0

11

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 12

0

12

Toro 38-1420

SWITCH-SEAT

$

$

Not available

13

Toro 6921

Sur-Plug

$

$

Currently unavailable

14

Toro 103480

Switch-Interlock, (Incl. Ref. #43)

$

$

Not available

15

Toro 910478

Screw
(Superseded to 9104784)

$1.49

$

Usually ships in 3-6 days

0

16

Toro 111332

SWITCH

$11.99

$

In Stock, Qty 16

0

17

Toro 111642

BARRIER - SWITCH

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

20

Toro 115411

BRACKET-SWITCH

$

$

Not available

21

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

22

Toro 9155732

Nut

$

$

Currently unavailable

23

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, only 1 left!

0

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

24

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$21.99

$

In Stock, only 3 left!

0

25

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

26

Toro 116397

RELAY

$33.99

$

In Stock, only 4 left!

0

27

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

28

Toro 519337

CLIP-CABLE

$1.99

$

Usually ships in 3-6 days

0

29

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

30

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

31

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

32

Toro 109910

WIRE GROUND

$4.99

$

Usually ships in 3-6 days

0

33

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

34

Toro 253-3

Washer-Lock

$

$

Currently unavailable

35

Toro 92-9845

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, Qty 11

0

38

Toro 111074

CABLE-BLACK

$25.99

$

Usually ships in 3-6 days

0

39

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

40

Toro 111069

ASSY WIRE

$

$

Not available

41

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

42

Toro 112185

5-CONTACT CONN BODY

$7.99

$

Usually ships in 3-6 days

0

43

Toro 110502

SHIELD-DIRT SPST

$7.99

$

Usually ships in 3-6 days

0

44

Toro 518077

Terminal

$

$

Currently unavailable

45

Toro 79-3590

Wire Harness (Incl. Ref.# 5,6,13,24,25,42&45)

$

$

Not available

47

Toro 102138

SWITCH-LIGHTS

$34.99

$

Usually ships in 3-6 days

0

47:1

Toro 3255-25

WASHER-LOCK
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

47:2

Toro 321-27

Nut

$

$

Currently unavailable

46

Toro 79-0060

VOLTMETER

$143.99

$

Usually ships in 3-6 days

0

46:1

Toro 78-0080

CLAMP-MOUNTING

$5.99

$

Usually ships in 3-6 days

0

46:2

Toro 3255-24

WASHER-LOCK / EXT

$0.99

$

Usually ships in 3-6 days

0

46:3

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

48

Toro 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0
