73403 (314-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) Ingnition System Parts Diagram

Garden Tractor

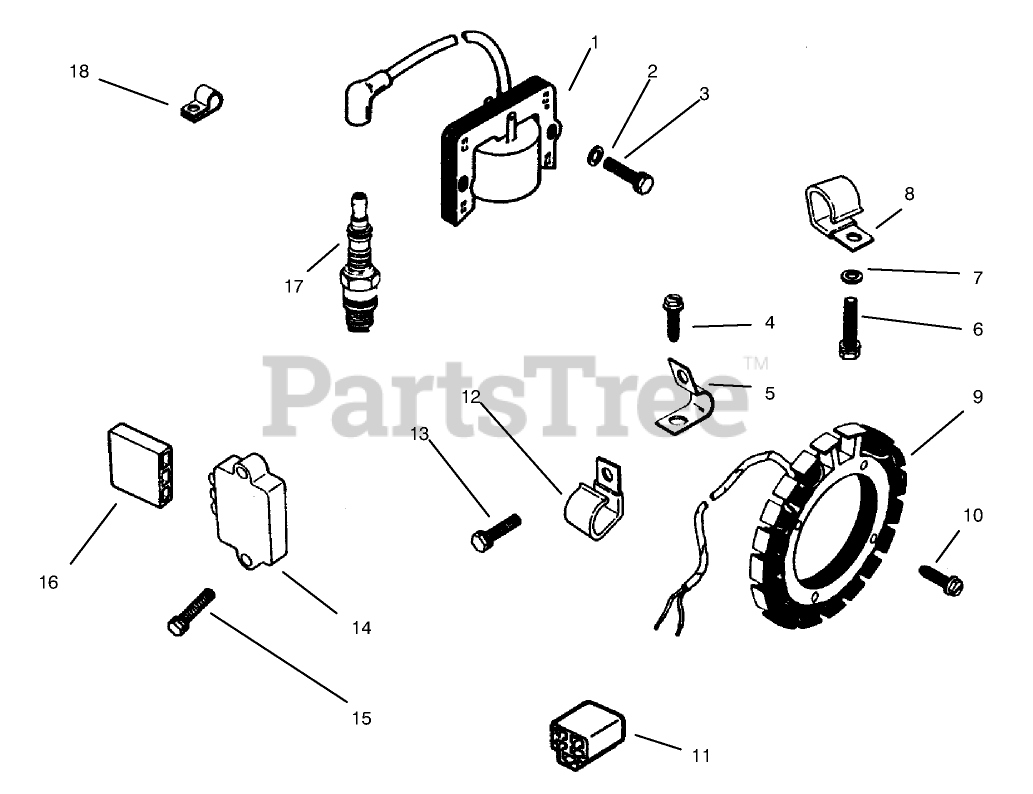

Ingnition System Parts Diagram

  • Title

1

Toro 47-584-02

Module-Ignition

$

$

Currently unavailable

2

Toro X-25-79

Washer

$

$

Currently unavailable

3

Toro X-156-1

Screw

$

$

Currently unavailable

4

Toro X-67-59

Screw-Hex Hd

$

$

Currently unavailable

5

Toro X-728-1

Clip

$

$

Currently unavailable

6

Toro X-67-83

Screw

$

$

Currently unavailable

7

Toro X-25-72

Washer

$

$

Currently unavailable

8

Toro 255173

Clip

$

$

Currently unavailable

9

Toro 237878

Stator
(Superseded to 701518)

$

$

Not available

10

Toro X-67-51

Screw

$

$

Currently unavailable

11

Toro 48-155-01

Connector

$

$

Currently unavailable

12

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

13

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

14

Toro 25-755-03

Kit-Rectifier/Regulator (Incl. Ref. #2)

$

$

Currently unavailable

14

Toro 41-403-05

Regulator-Recifier

$

$

Currently unavailable

15

Toro X-132-4

Screw

$

$

Currently unavailable

15

Toro X-132-5

Screw

$

$

Currently unavailable

16

Toro 236602

Connector

$

$

Currently unavailable

17

Toro 235041-2

Plug-Spark

$

$

Currently unavailable

18

Toro 210281

Clip-Cable

$

$

Currently unavailable

Toro 47-518-36

Lead-Regulator

$

$

Currently unavailable

Toro 47-518-43

Lead Wire

$

$

Currently unavailable
