73403 (314-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) WHEEL ASSEMBLIES Parts Diagram

Garden Tractor

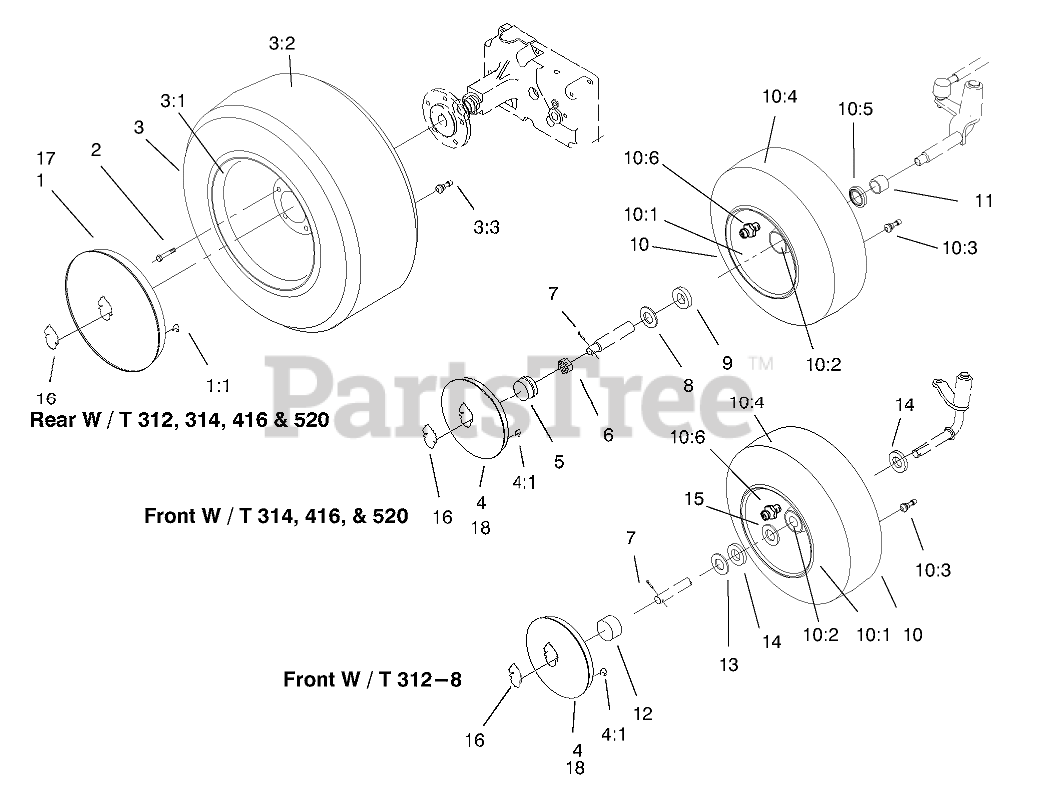

WHEEL ASSEMBLIES Parts Diagram

  • Title

1

Toro 94-3731

HUBCAP - 12"

$

$

Not available

1:1

Toro 94-9729

CLIP - HUBCAP

$

$

Not available

2

Toro 83-2720

BOLT-LUG

$3.99

$

Usually ships in 3-6 days

0

3

ASM-Wheel & Tire

$

$

Not available

3:1

Toro 111516

WHEEL

$308.99

$

Usually ships in 3-6 days

0

3:2

Toro 116744

TIRE
(Superseded to 116-5363)

$226.99

$

Usually ships in 3-6 days

0

3:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

4

Toro 94-3730

HUBCAP - 8"

$

$

Not available

4:1

Toro 94-9729

CLIP - HUBCAP

$

$

Not available

7

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

10

Toro 93-9800

FRONT WHEEL ASM

$

$

Not available

10:1

Toro 93-9801

Wheel ASM

$257.99

$

Usually ships in 3-6 days

0

10:2

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, Qty 20+

0

10:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 13

0

10:4

Toro 117127

Tire (16 x 6.5-8) 2-Ply -2 Wheel Axel

$

$

Not available

10:6

Toro 109500

ZERK-GREASE

$3.49

$

Usually ships in 3-6 days

0

12

Toro 111951

HUBCAP

$14.99

$

In Stock, Qty 5

0

13

Toro 111952

WASHER WHEEL

$6.49

$

In Stock, Qty 5

0

14

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

15

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

16

Toro 94-3736

LOGO - HORSEHEAD

$

$

Not available

17

Toro 94-3718

HUBCAP ASM - 12", YGT (HORSEHEAD LOGO)

$

$

Not available

17:1

Toro 94-3731

HUBCAP - 12"

$

$

Not available

17:2

Toro 94-3736

LOGO - HORSEHEAD

$

$

Not available

18

Toro 94-3717

SILVER HUB CAP/LOGO ASM

$

$

Not available

18:1

Toro 94-3730

HUBCAP - 8"

$

$

Not available

18:2

Toro 94-3736

LOGO - HORSEHEAD

$

$

Not available
