73420 (416-8) - Toro Garden Tractor (SN: 049000001 - 049999999) (1994) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

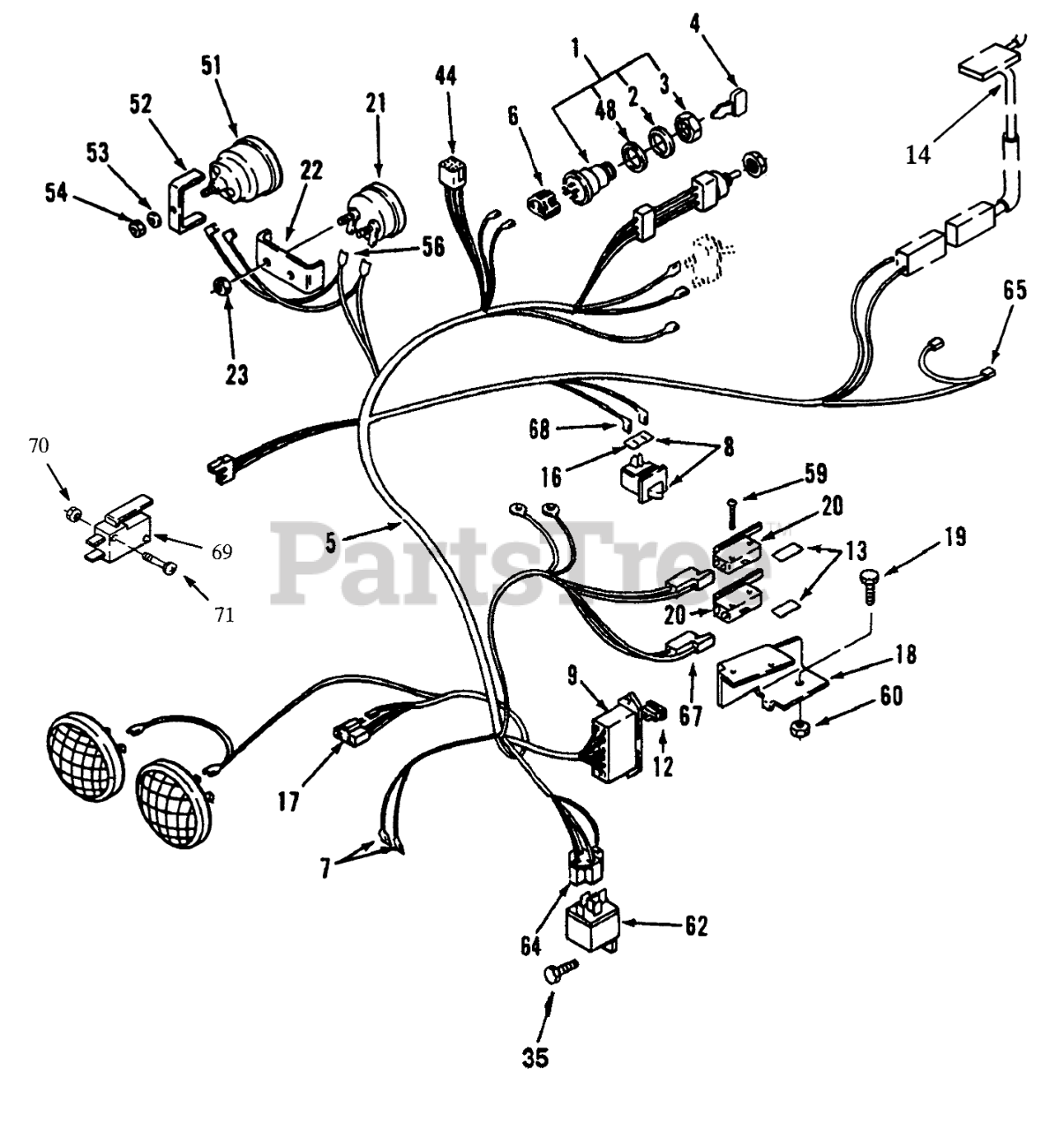

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro 111216

IGNITION SWITCH ASM
(Superseded to 103990)

$27.99

$

In Stock, Qty 11

0

2

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 4 left!

0

3

Toro 101884

NUT

$7.49

$

In Stock, only 2 left!

0

4

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 12

0

4

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

5

Toro 79-3600

Wiring Harness (Incl.Ref.#6,7,9,17,44,65&68)

$

$

Not available

6

Toro 104926

CONNECTOR BODY ELECT

$3.99

$

In Stock, only 2 left!

0

7

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

8

Toro 103480

Switch-Clutch Interlock, (Incl.Ref.#16)

$

$

Not available

9

Toro 120930

FUSE-HOLDER 4 WAY
(Superseded to 67-7160)

$21.99

$

In Stock, only 3 left!

0

12

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

Toro 109102

FUSE-BLADE, 25 AMP

Note: Not illustrated

$5.49

$

In Stock, only 1 left!

0

Toro NN10277

FUSE-30 AMP

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0

13

Toro 111642

BARRIER - SWITCH

$

$

Not available

14

Toro 38-1420

SWITCH-SEAT

$

$

Not available

16

Toro 110502

SHIELD-DIRT SPST

$7.99

$

Usually ships in 3-6 days

0

17

Toro 112185

5-CONTACT CONN BODY

$7.99

$

Usually ships in 3-6 days

0

18

Toro 115411

BRACKET-SWITCH

$

$

Not available

19

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

20

Toro 111332

SWITCH

$11.99

$

In Stock, Qty 16

0

21

Toro 79-0060

VOLTMETER

$143.99

$

Usually ships in 3-6 days

0

22

Toro 78-0080

CLAMP-MOUNTING

$5.99

$

Usually ships in 3-6 days

0

23

Toro 5924

HEX NUT 10-32 E.S.

$

$

Not available

35

Toro 910794

BOLT

$

$

Not available

48

Toro 920262

Washer
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

51

Toro 78-0020

Meter-Hour (Incl. Ref.# 52-54)
(Superseded to 66-2950)

$

$

Not available

52

Toro 114017

BRKT-GAUGE MOUNTING

$

$

Not available

53

Toro 920120

Lockwasher
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

54

Toro 915962

Hex Nut
(Superseded to 32149-9)

$1.49

$

Usually ships in 3-6 days

0

59

Toro 910478

Screw
(Superseded to 9104784)

$1.49

$

Usually ships in 3-6 days

0

60

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

62

Toro 116397

RELAY

$33.99

$

In Stock, only 4 left!

0

64

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

65

Toro 6921

Sur-Plug

$

$

Currently unavailable

68

Toro 518077

Terminal

$

$

Currently unavailable

69

Toro 111332

SWITCH

$11.99

$

In Stock, Qty 16

0

70

Toro 915732

NUT HEX 4-40 ELAST
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

71

Toro 910948

Screw
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0
