73420 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

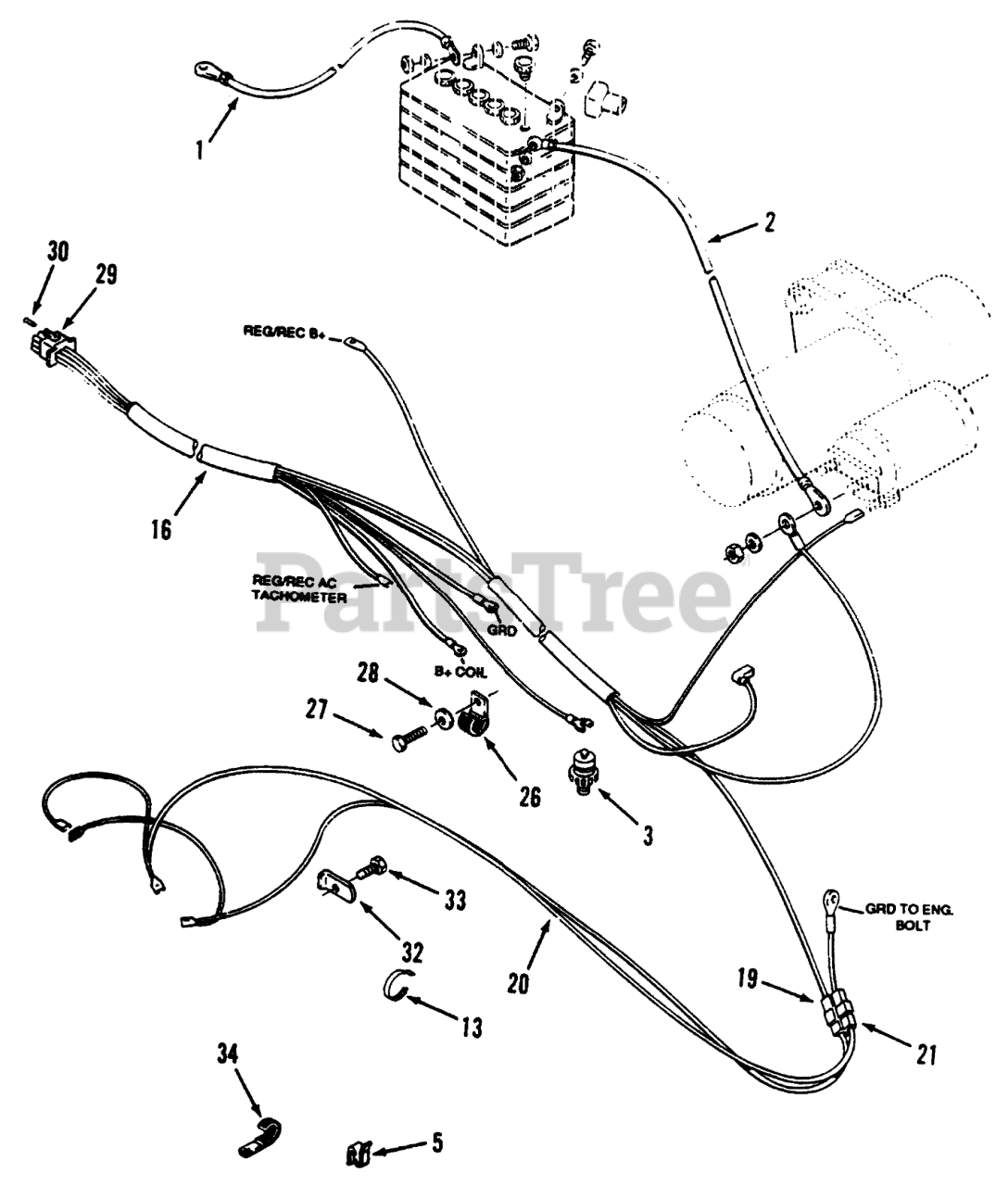

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Cable-Battery Ground

$

$

Not available

2

Cable-Battery (+) to Solenoid

$

$

Not available

3

Toro 94-1845

SWITCH - OIL PRESSURE

$

$

Not available

4

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

5

Toro 3023

SPEED CLIP

$

$

Not available

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

16

Toro 94-1846

HARNESS - ENGINE WIRE

$

$

Not available

19

Toro NN10278

MALE CONNECTOR

$

$

Not available

20

Toro 114052

HARNESS-HEADLIGHT

$

$

Not available

21

Toro 109357

CONNECTOR BODY

$

$

Not available

26

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

27

Toro NN10399

Bolt
(Superseded to 82-1540)

$

$

Not available

28

Toro NN10425

LOCKWASHER 1/4 IT

$

$

Not available

29

Toro NN10281

CONNECTOR CAP

$

$

Not available

30

Toro NN10279

CONTACT SOCKET

$7.99

$

In Stock, only 2 left!

0

32

Toro 109459

LOCK-HEADLIGHT

$6.99

$

In Stock, Qty 7

0

33

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 16

0

34

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0
