73420 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) FUEL TANK, FUEL PUMP, FENDER AND SUPPORT Parts Diagram

Garden Tractor

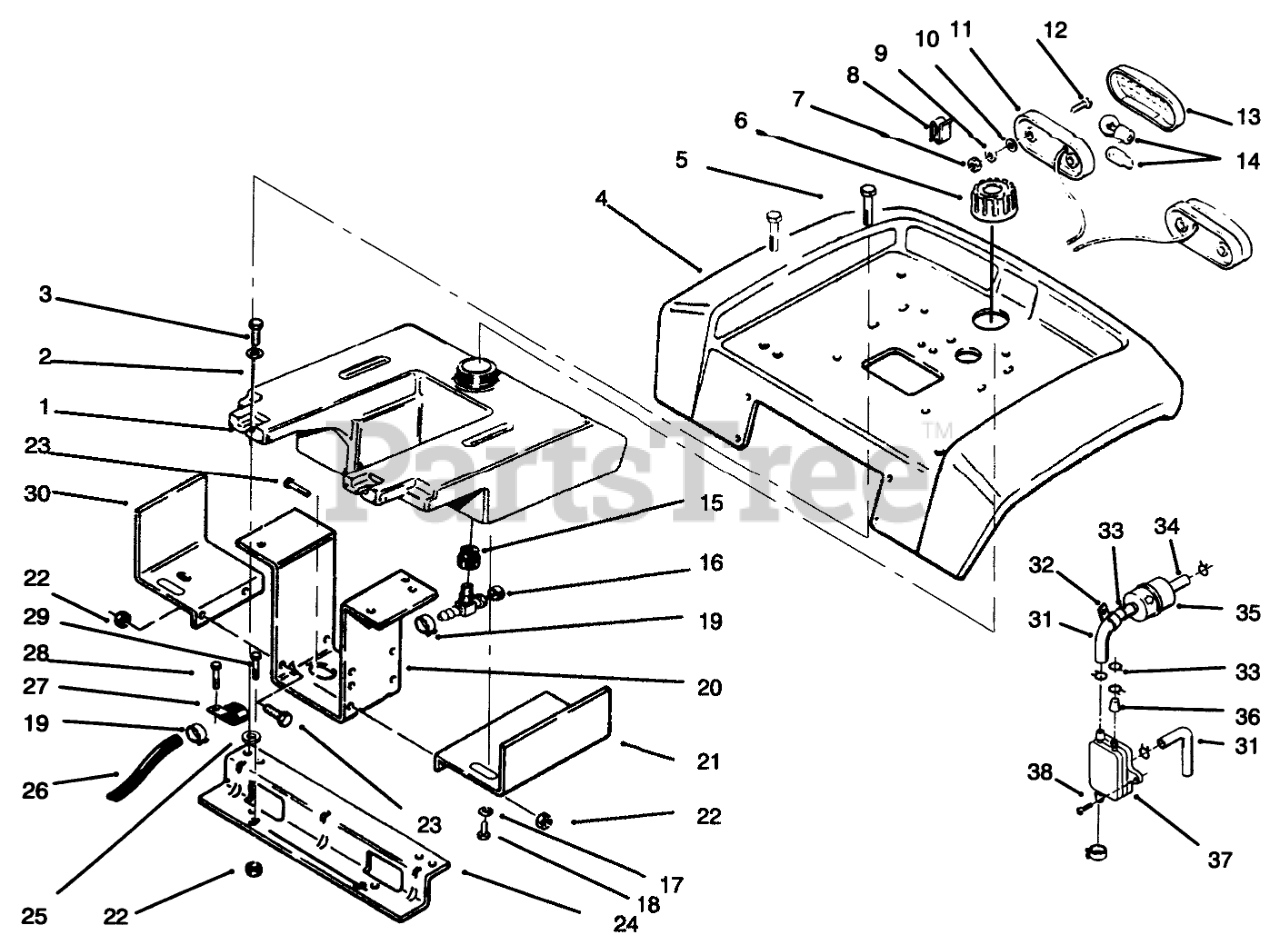

FUEL TANK, FUEL PUMP, FENDER AND SUPPORT Parts Diagram

  • Title

1

Toro 106234

Tank Asm-Fuel (Incl. Ref. #15- 16)

$390.99

$

Usually ships in 3-6 days

0

2

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro 9266974

SCREW-HWHTF
(Superseded to 130-9795)

$1.49

$

Usually ships in 3-6 days

0

4

Toro 110960

Fender
(Superseded to 94-3722-01)

$

$

Not available

5

Toro 92669444

Bolt

$

$

Currently unavailable

6

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

7

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

8

Toro 3023

SPEED CLIP

$

$

Not available

9

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

10

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

11

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

12

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

13

Toro 112564

LENS-TAIL LIGHT

$8.49

$

In Stock, Qty 12

0

14

Toro 8043

Bulb

$

$

Currently unavailable

Toro 109045

LIGHT BULB

Note: Not illustrated

$

$

Not available

15

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

16

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, Qty 8

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

20

Toro 79-4990

Bracket-Fender
(Superseded to 79-4990-03)

$108.99

$

Usually ships in 3-6 days

0

21

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$33.99

$

Usually ships in 3-6 days

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 107951

BRACKET-FENDER B
(Superseded to 95-7665-03)

$57.99

$

In Stock, only 1 left!

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 92-9511

Line-Fuel 62"
(Superseded to 92-9512)

$37.99

$

Usually ships in 3-6 days

0

Toro 92-9510

50" FUEL LINE
(Superseded to 109-0290)

Note: Not illustrated

$38.99

$

Usually ships in 3-6 days

0

27

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

28

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

29

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$45.99

$

Usually ships in 3-6 days

0

31

Toro 71-6120

HOSE

$

$

Not available

32

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

33

Toro 57-9550

CLAMP

$

$

Not available

34

Toro 92-0923

FUEL HOSE
(Superseded to 82-1100)

$

$

Not available

35

Toro 71-5960

FILTER-FUEL

$24.99

$

In Stock, Qty 11

0

36

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

37

Toro 57-9080

PUMP-FUEL

$

$

Not available

38

Toro NN10403

Screw
(Superseded to 59-1050)

$5.99

$

Usually ships in 3-6 days

0
