73420 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) GOVERNOR Parts Diagram

Garden Tractor

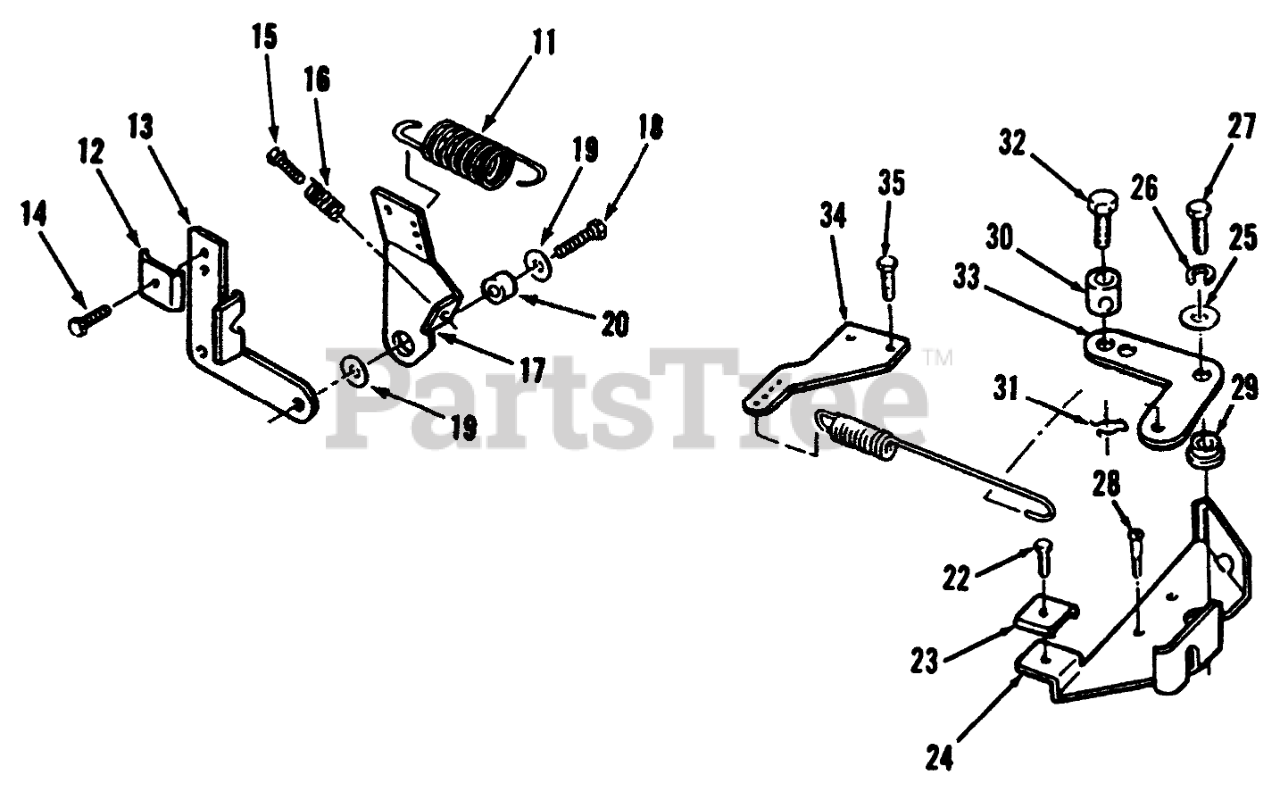

GOVERNOR Parts Diagram

  • Title

11

Toro 57-9100

SPRING

$

$

Not available

12

Toro 57-9190

CLIP

$

$

Not available

13

Toro 79-6360

BRACKET

$

$

Not available

14

Toro NN10395

Bolt
(Superseded to 72-3900)

$7.99

$

Usually ships in 3-6 days

0

15

Toro 59-1030

SCREW-TAP

$

$

Not available

16

Toro NN10219

Spring
(Superseded to 59-0430)

$

$

Not available

17

Toro 92-0922

GOVERNOR CONTROL ARM

$

$

Not available

18

Toro 59-1100

SCREW-HWH

$

$

Not available

19

Toro NN10357

Screw
(Superseded to 59-0830)

$

$

Not available

20

Toro NN10218

Bushing
(Superseded to 57-9120)

$8.49

$

Usually ships in 3-6 days

0

22

Toro 59-1000

TAPPING HEX HD CS

$

$

Not available

23

Toro 57-9190

CLIP

$

$

Not available

24

Toro 79-6390

BRKT-GOVERNOR CONTRL

$

$

Not available

25

Toro 59-0830

WASHER-FLAT

$

$

Not available

26

Toro 82-1620

WASHER-LOCK, SPRING

$4.49

$

Usually ships in 3-6 days

0

27

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

28

Toro 201327

HEX HD CAP SCREW

$

$

Not available

29

Toro 79-6400

BUSHING-GOV CONTROL

$

$

Not available

30

Toro 57-9580

SEAL

$

$

Not available

31

Toro 59-0720

PIN-COTTER

$

$

Not available

32

Toro NN10410

Bolt
(Superseded to 72-3890)

$

$

Not available

33

Toro 201256

Governor Control Arm
(Superseded to 79-6410)

$

$

Not available

34

Toro 79-6420

ADAPTER-GOV ARM

$

$

Not available

35

Toro NN10403

Screw
(Superseded to 59-1050)

$5.99

$

Usually ships in 3-6 days

0
