73421 (416-H) - Toro Garden Tractor (SN: 059001047 - 059999999) (1995) Clutch, Brake Motion Control Linkage Parts Diagram

Garden Tractor

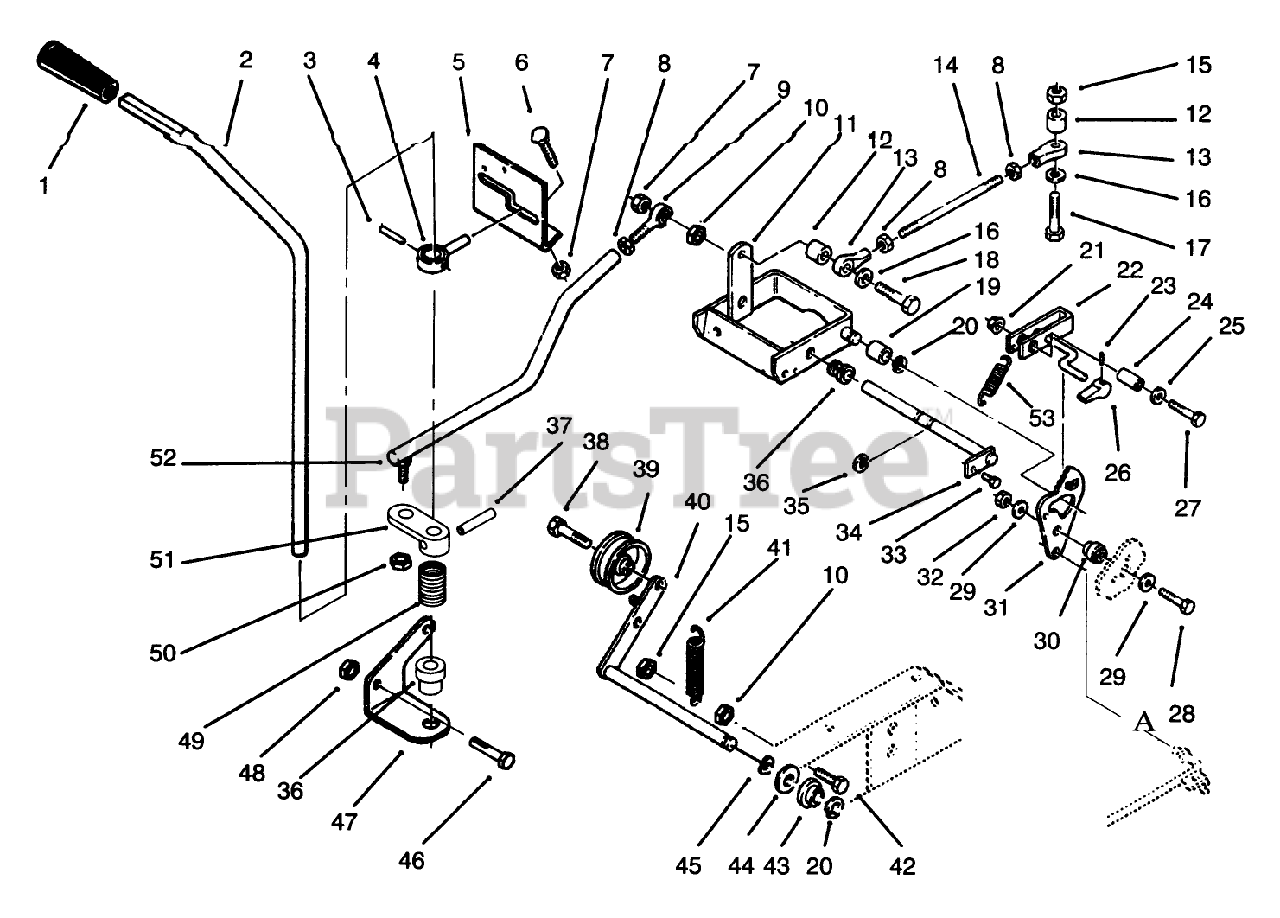

Clutch, Brake Motion Control Linkage Parts Diagram

  • Title

1

Toro 116635

DISCONTINUED
(Superseded to 94-6668)

$

$

Not available

2

Toro 78-5660

ROD-MOTION CONTROL

$

$

Not available

3

Toro 933198

SPIROL PIN 7/32X7/8

$1.99

$

Usually ships in 3-6 days

0

4

Toro 118660

GUIDE-CONTROL

$

$

Not available

5

Toro 78-5631

See Supercession: 78-5631-03
(Superseded to 78-5631-03)

$

$

Not available

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 3220-1

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

9

Toro 116407

ROD END, 1/4-28

$65.99

$

Usually ships in 3-6 days

0

10

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 6

0

11

Toro 113454

DISCONTINUED
(Superseded to 113454-03)

$

$

Not available

12

Toro 100304

BEARING CAM ROLLER

$8.49

$

Usually ships in 3-6 days

0

13

Toro 110189

ASSY ROD END

$

$

Not available

14

Toro 108904

ROD-CONTROL

$31.99

$

Usually ships in 3-6 days

0

15

Toro 32146-17

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

17

Toro 321-9

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

18

Toro 9114584

HHCS 1/4X2.25 FULL T

$4.49

$

In Stock, only 1 left!

0

19

Toro 100656

BEARING-CAM RETURN

$

$

Not available

20

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

21

Toro 102809

See Supercession: 32128-19
(Superseded to 32128-19)

$1.99

$

In Stock, Qty 5

0

22

Toro 78-8500

DISCONTINUED
(Superseded to 78-8500-03)

$

$

Not available

23

Toro 933135

PIN-SPIROL 3/32X5/8

$

$

Not available

24

Toro 102025

SPACER

$

$

Not available

25

Toro 9202414

WASHER-SPACER

$5.49

$

Usually ships in 3-6 days

0

26

Toro 128860

Knob

$

$

Not available

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro 108717

DISCONTINUE

$

$

Not available

31

Toro 108716

DISCONTINUED
(Superseded to 108716-03)

$

$

Not available

32

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

33

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available

34

Toro 108496

DISCONTINUED

$

$

Not available

35

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

36

Toro 5983

BUSHING-NYLINER

$7.49

$

In Stock, Qty 7

0

37

Toro 32312-94

Pin-Spirol
(Superseded to 32121-94)

$

$

Not available

38

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 112791

PULLEY-IDLER

$100.99

$

In Stock, only 2 left!

0

40

Toro 78-6020

DISCONTINUED

$

$

Not available

41

Toro 107938

SPRING-EXTENSION

$14.99

$

In Stock, only 2 left!

0

42

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

43

Toro 7879

BUSHING-FLANGED

$25.99

$

Usually ships in 3-6 days

0

44

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 1 left!

0

45

Toro 114823

CURVED-SPRING WASHER

$9.99

$

Usually ships in 3-6 days

0

46

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

47

Toro 78-1540

DISCONTINUED
(Superseded to 78-1540-03)

$

$

Not available

48

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

49

Toro 101938

See Supercession: 101853
(Superseded to 101853)

$32.99

$

In Stock, only 3 left!

0

50

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

51

Toro 116321

DISCONTINUED

$

$

Not available

52

Toro 116324

ASSY-ROD & BALL JOINT

$391.99

$

Usually ships in 3-6 days

0

53

Toro 83-2820

DISCONTINUED

$

$

Not available
