73421 (416-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Belt Guard Footrests Parts Diagram

Garden Tractor

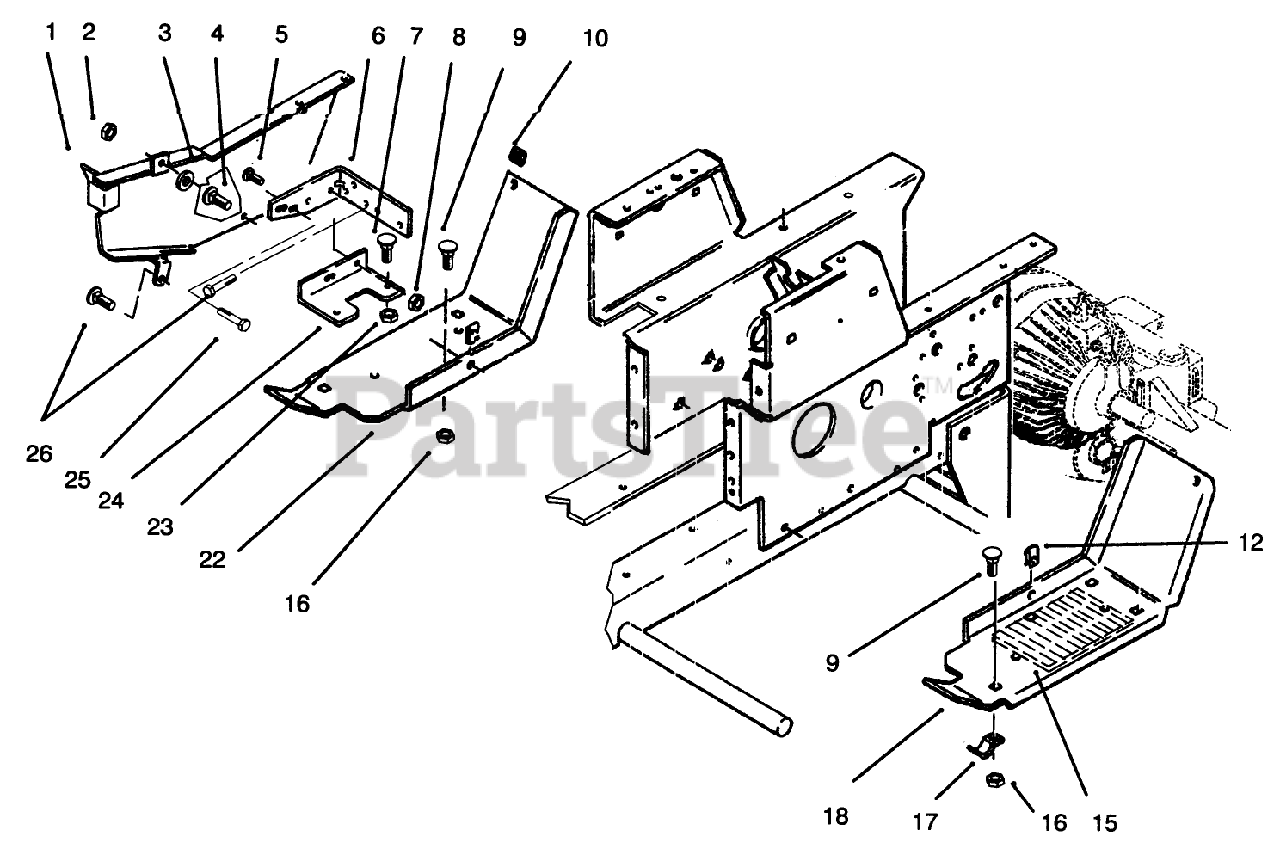

Belt Guard Footrests Parts Diagram

  • Title

1

Toro 92-1527

GUARD - BELT WA *R

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 108457

DISCONTINUED

$

$

Not available

4

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 109554

BRACKET-BELT*B

$

$

Not available

7

Toro 9107944

SCREW-PAN

$2.99

$

Usually ships in 3-6 days

0

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 116000

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 518211

BUMPER

$4.49

$

In Stock, only 2 left!

0

12

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 110636

PAD FOOTREST

$

$

Not available

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 7456

BRACKET

$

$

Not available

18

Toro 106223

FOOTREST LH *R

$

$

Not available

22

Toro 106222

See Supercession: 106222-01
(Superseded to 106222-01)

$

$

Not available

23

Toro 9157404

See Supercession: 3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 13

0

24

Toro 118280

BRKT-FUS HLDER*B

$

$

Not available

25

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

26

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available
