73421 (416-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Electrical System 2 Parts Diagram

Garden Tractor

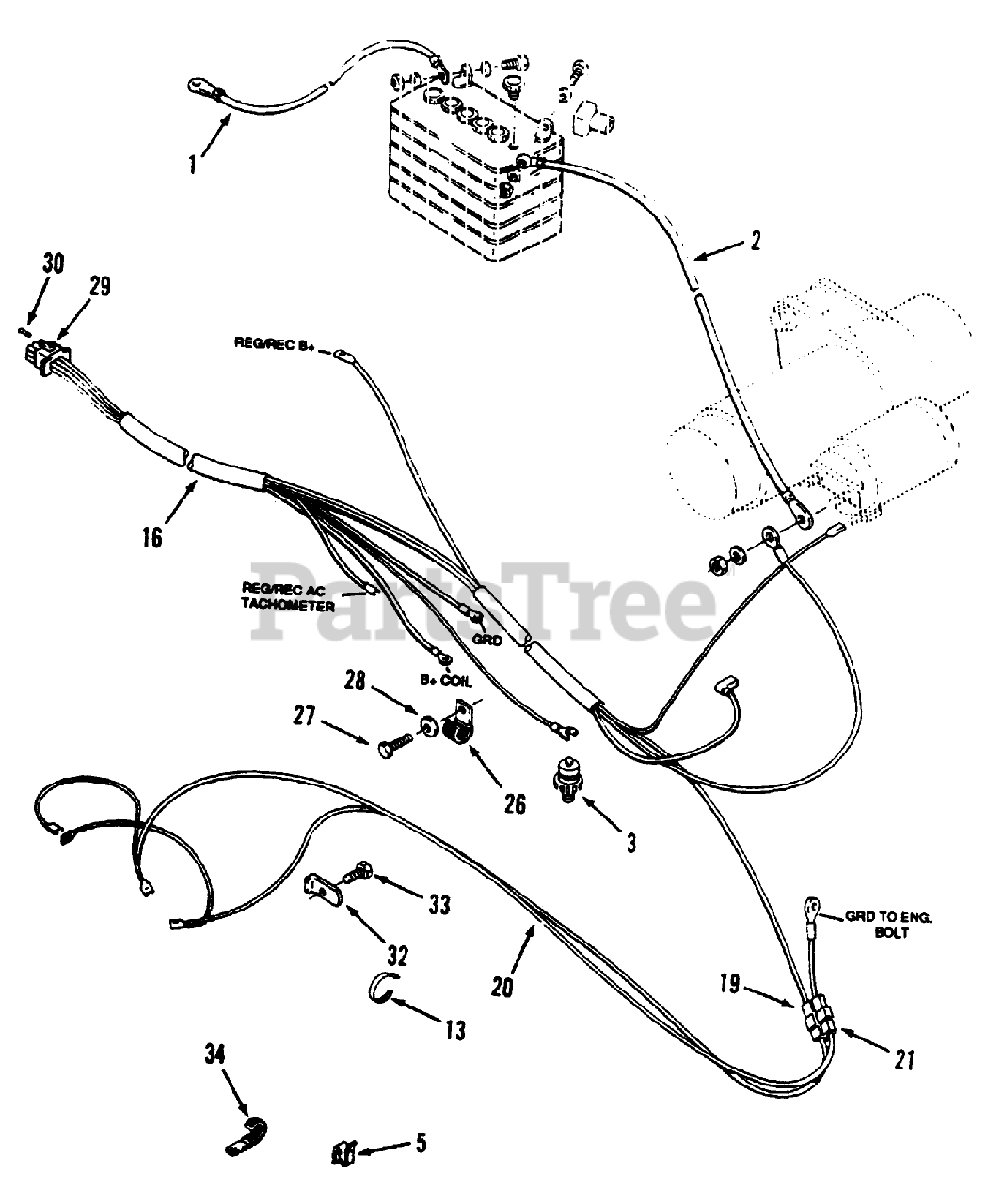

Electrical System 2 Parts Diagram

  • Title

1

Cable-Battery Ground

$

$

Not available

2

Toro 113925

ASS'Y-WIRE

$93.99

$

Usually ships in 3-6 days

0

3

Toro 94-1845

DISCONTINUED

$

$

Not available

4

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$26.99

$

Usually ships in 3-6 days

0

5

Toro 3023

DISCONTINUED

$

$

Not available

13

Toro 100571

DISCONTINUED

$

$

Not available

16

Toro NN10294

DISCONTINUED

$

$

Not available

19

Toro NN10278

MALE CONNECTOR

$

$

Not available

20

Toro 114052

DISCONTINUED

$

$

Not available

21

Toro 109357

CONNECTOR BODY

$

$

Not available

26

Toro NN10348

See Supercession: 71-6220
(Superseded to 71-6220)

$

$

Not available

27

Toro 82-1540

SCREW-HWH

$

$

Not available

28

Toro NN10425

DISCONTINUED

$

$

Not available

29

Toro NN10281

DISCONTINUED

$

$

Not available

30

Toro NN10279

CONTACT SOCKET

$18.99

$

In Stock, only 2 left!

0

32

Toro 109459

LOCK-HEADLIGHT

$8.49

$

In Stock, Qty 6

0

33

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

34

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0
