73422 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Brake Parts Diagram

Garden Tractor

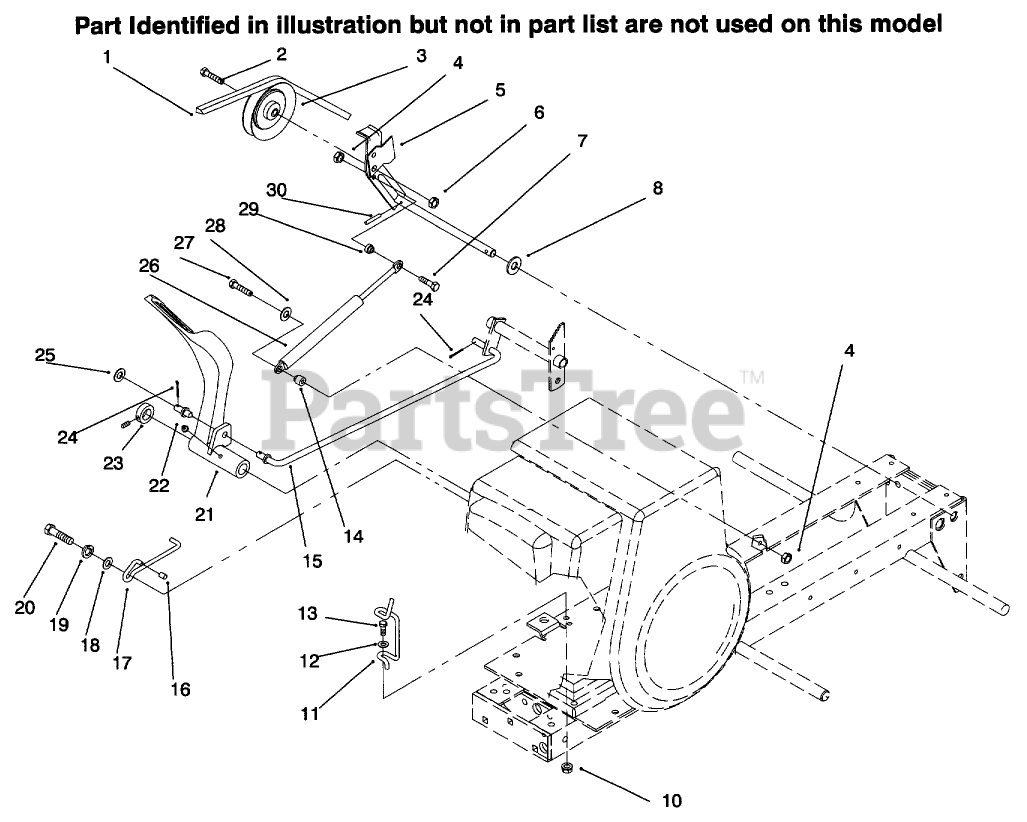

Brake Parts Diagram

  • Title

1

Toro 93-9809

BELT - V IN

$64.99

$

In Stock, only 3 left!

0

2

Toro 106193

BOLT-SPECIAL HEX

$10.99

$

In Stock, Qty 5

0

3

Toro 7451

See Supercession: 95-7668
(Superseded to 95-7668)

$28.99

$

In Stock, only 4 left!

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 78-2970

See Supercession: 98-1746
(Superseded to 98-1746)

$124.99

$

Usually ships in 3-6 days

0

6

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

7

Toro 321-31

See Supercession: 321-5
(Superseded to 321-5)

$0.99

$

In Stock, Qty 20+

0

8

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 1 left!

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 120320

DISCONTINUED

$

$

Not available

12

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

13

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 17

0

14

Toro 78-3250

SPACER-SHOULDER-.400

$27.99

$

Usually ships in 3-6 days

0

15

Toro 92-6849

ROD-BRAKE

$

$

Not available

21

Toro 94-3706

See Supercession: 94-3706-01
(Superseded to 94-3706-01)

$208.99

$

Usually ships in 3-6 days

0

22

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23

Toro 111383

COLLAR

$7.99

$

In Stock, only 1 left!

0

24

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

25

Toro 920248

WASHER-NYLON

$1.49

$

Usually ships in 3-6 days

0

26

Toro 78-3240

ASS'Y-GAS SPRING

$214.99

$

In Stock, only 1 left!

0

27

Toro 321-9

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

29

Toro 78-3260

SPACER-SHOULDER-.200

$45.99

$

Usually ships in 3-6 days

0

30

Toro 933267

PIN-SPIROL

$1.49

$

In Stock, Qty 5

0
