73422 (416-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) GEAR CASE & IGNITION CONTROLS Parts Diagram

Garden Tractor

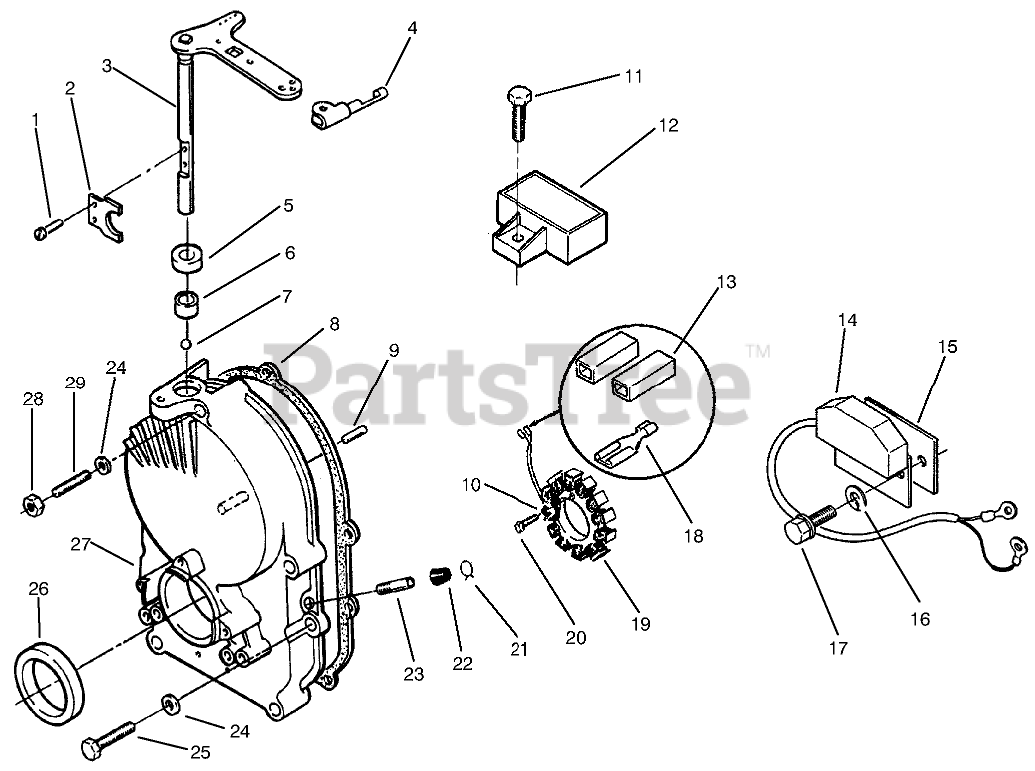

GEAR CASE & IGNITION CONTROLS Parts Diagram

  • Title
1

Toro 59-0950

SCREW-PAN HD

$

$

Not available

2

$

$

Not available

3

Toro NN10826

SHAFT AND ARM

$176.99

$

Usually ships in 3-6 days

0

4

Toro 94-6680

RETAINING CLIP

$5.99

$

Usually ships in 3-6 days

0

5

$

$

Not available

6

Toro 57-9650

BEARING

$

$

Not available

7

$

$

Not available

8

Toro 71-6360

GEAR CASE MTG GASKET

$

$

Not available

9

Toro 59-0740

PIN-DOWEL

$6.49

$

In Stock, only 1 left!

0

10

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 59-1080

SCREW-HWH

$5.99

$

Usually ships in 3-6 days

0

12

Toro 57-9430

REGULATOR
(Superseded to 117-2742)

$256.99

$

In Stock, only 2 left!

0

13

Toro 82-1000

BODY-TERM. CONNECTOR KIT

$48.99

$

Usually ships in 3-6 days

0

14

Toro 71-6380

CONTROL-IGNITION

$431.99

$

Usually ships in 3-6 days

0

15

Toro 71-6410

INSULATOR-IGN MODULE

$11.99

$

Usually ships in 3-6 days

0

16

Toro 82-1660

WASHER-LOCK

$

$

Not available

17

Toro 71-6400

SCREW-HH

$

$

Not available

18

Toro 59-0590

TERMINAL

$4.99

$

Usually ships in 3-6 days

0

19

Toro 92-0967

KIT - STATOR

$343.99

$

Usually ships in 3-6 days

0

20

Toro 82-1500

Screw-HH
(Superseded to 71-6390)

$

$

Not available

21

Toro 57-9550

CLAMP

$

$

Not available

22

Toro 59-0370

CAP-FUEL OUTLET

$

$

Not available

23

Toro 59-0360

TUBE-PORT, VACUUM

$

$

Not available

24

Toro 57-9750

WASHER

$

$

Not available

25

Toro NN10545

HEX-HEAD CAP SCREW

$

$

Not available

26

$

$

Not available

27

Toro NN10825

GEAR-CASE KIT

$

$

Not available

28

Toro 59-1130

NUT-GEAR COVER

$

$

Not available

29

Toro 59-0790

STUD-GEAR COVER

$

$

Not available
