73423 (416-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) HYDRAULIC LIFT SYSTEM Parts Diagram

Garden Tractor

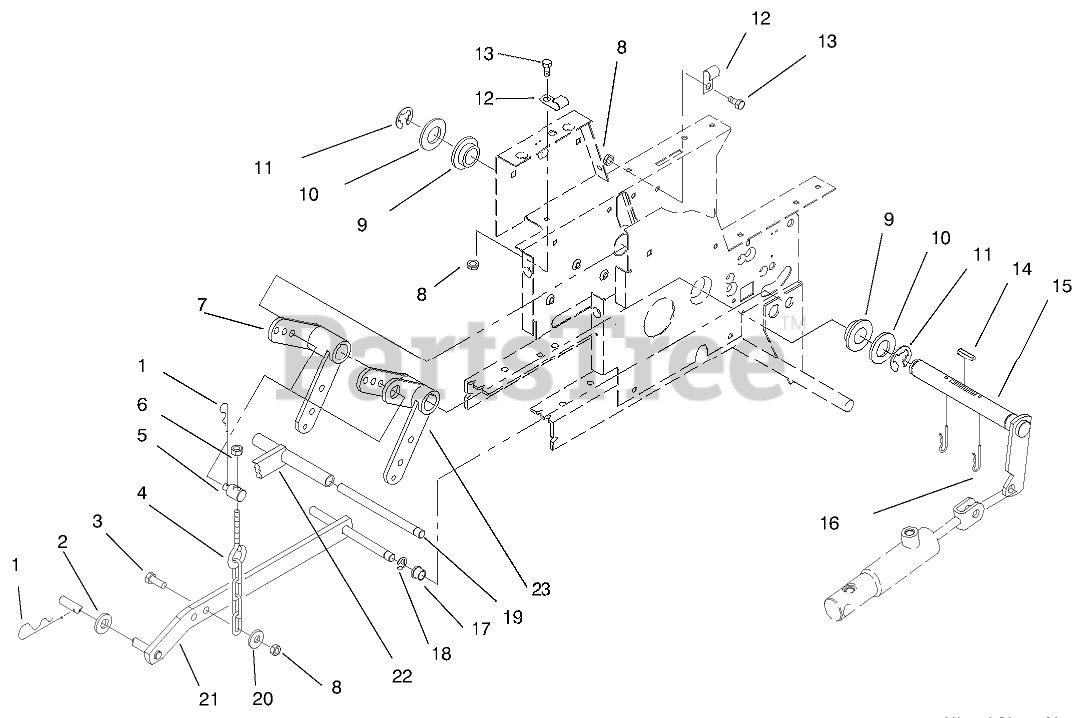

HYDRAULIC LIFT SYSTEM Parts Diagram

  • Title

1

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

4

Toro 106522

CHAIN-LIFT

$38.99

$

In Stock, only 1 left!

0

5

Toro 6739

TRUNNION-LIFT

$25.99

$

In Stock, only 4 left!

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 78-1550

LIFT LEVER ASM

$118.99

$

In Stock, only 1 left!

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 106269

BEARING-FLANGE

$10.99

$

Usually ships in 3-6 days

0

10

Toro 3256-62

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

11

Toro 32151-91

RING-RETAINING

$2.99

$

In Stock, Qty 16

0

12

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

13

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 1121

KEY-SQUARE

$14.99

$

Usually ships in 3-6 days

0

15

Toro 121100

WLDMT-LIFT ARM

$

$

Not available

16

Toro 9335074

PIN-HAIR

$5.99

$

In Stock, only 4 left!

0

17

Toro 6229

BUSHING

$10.99

$

In Stock, Qty 6

0

18

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 19

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 113445-01

Bar-Lift

$

$

Currently unavailable

32

Toro 94-6699

ADAPTOR - HOSE, 45 DEGREE

$

$

Not available
