73428 (312-8) - Toro Garden Tractor (SN: 089000001 - 089000499) (1998) Wheel Assemblies Parts Diagram

Garden Tractor

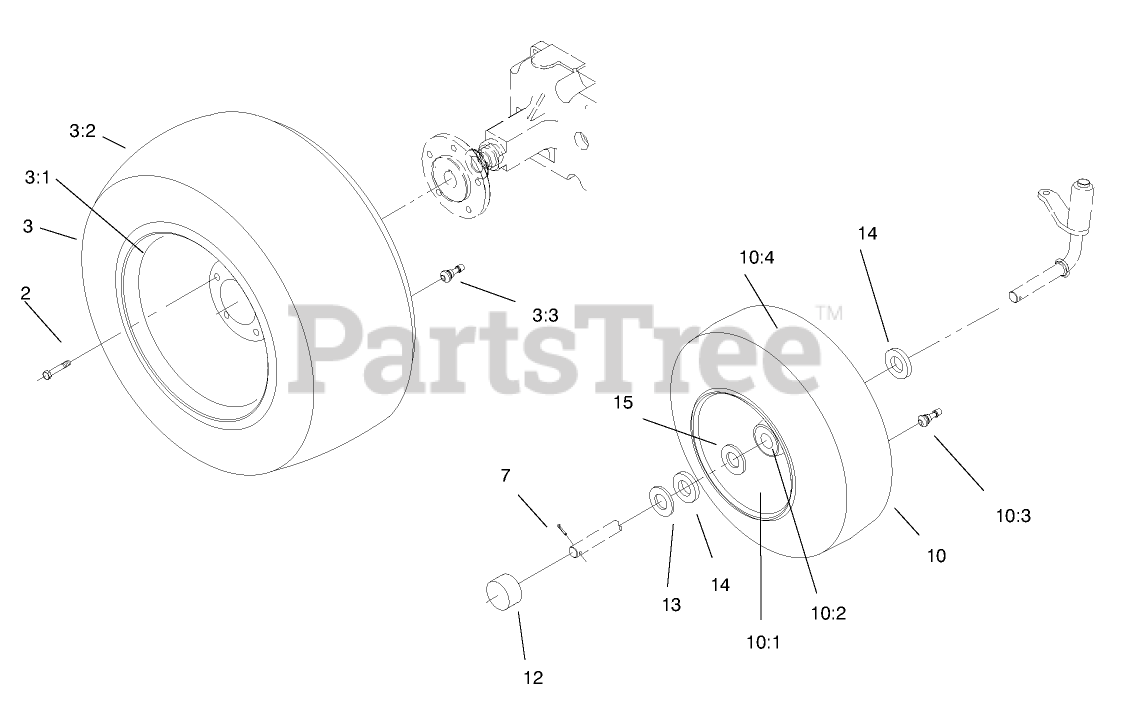

Wheel Assemblies Parts Diagram

  • Title

2

Toro 83-2720

BOLT-LUG

$4.49

$

In Stock, only 3 left!

0

3

Wheel/Tire ASM-Rear

$

$

Not available

3:1

Toro 111516

WHEEL

$325.99

$

Usually ships in 3-6 days

0

3:2

Toro 116742

DISCONTINUED

$

$

Not available

3:3

Toro 5108

VALVE

$7.99

$

In Stock, only 4 left!

0

7

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, only 3 left!

0

10

Toro 117289

ASM-Wheel Tire
(Superseded to 99-5378)

$

$

Not available

10:1

Toro 116884

TIRE-15 X 6.00-6

$173.99

$

Usually ships in 3-6 days

0

10:2

Toro 117285

DISCONTINUED

$

$

Not available

10:3

Toro 117286

Wheel

$

$

Currently unavailable

10:4

Toro 109500

ZERK-GREASE

$4.49

$

Usually ships in 3-6 days

0

10:5

Toro 5108

VALVE

$7.99

$

In Stock, only 4 left!

0

10:6

Toro 110513

BEARING-WHEEL

$23.99

$

In Stock, Qty 20+

0

Toro 100079

TUBE

$

$

Not available

Toro 7007

See Supercession: 231-90
(Superseded to 231-90)

$

$

Not available

12

Toro 61-9780

CAP-HUB

$8.99

$

In Stock, Qty 20+

0

13

Toro 28-2480

WASHER-PLAIN

$5.49

$

In Stock, Qty 18

0

14

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

15

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0
