73428 (312-8) - Toro Garden Tractor (SN: 089000500 - 089099999) (1998) Air Intake/filtration Parts Diagram

Garden Tractor

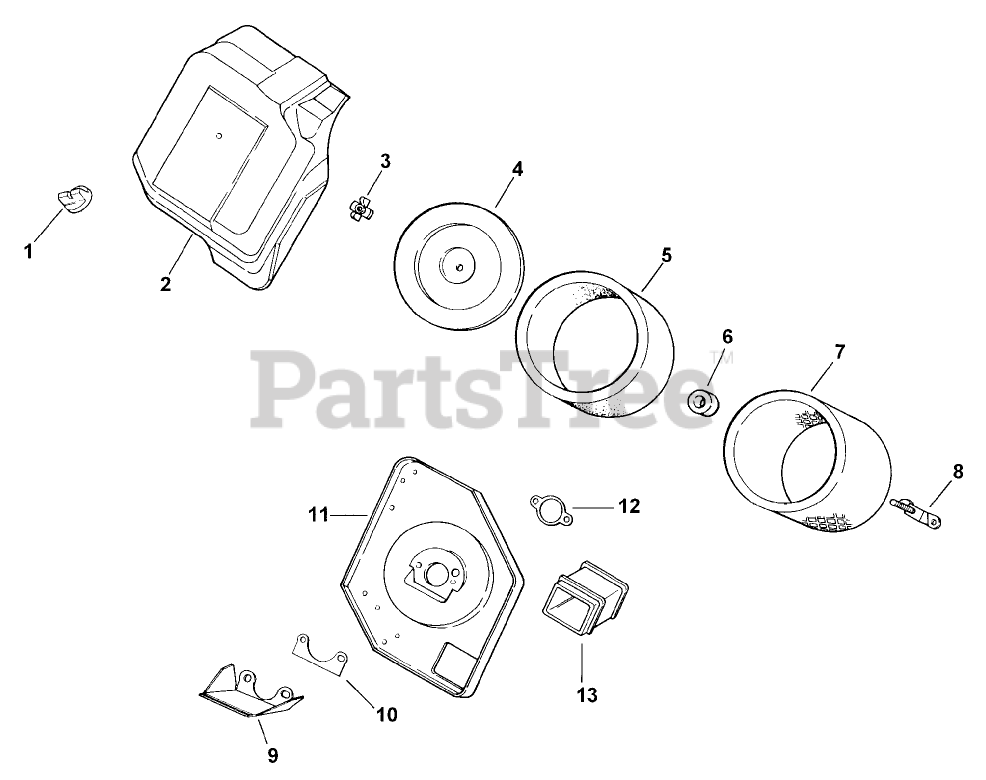

Air Intake/filtration Parts Diagram

  • Title

1

Toro 25 341 03

Knob-Cover

$

$

Currently unavailable

2

Toro 12 096 15

Cover, air cleaner

$

$

Currently unavailable

3

12_100_01

Nut-Wing

$

$

Not available

4

Toro 12 096 35

Cover, air cleaner element with deflector

$

$

Currently unavailable

5

Toro 52 083 01

Precleaner, element

$

$

Currently unavailable

6

Toro 24_032_03

Seal-Air Intake (Only On: 72103)

$

$

Currently unavailable

7

Toro 47 083 01

Element, air cleaner

$

$

Currently unavailable

8

Toro 12 126 47

Bracket, air cleaner

$

$

Currently unavailable

9

Toro 12 146 14

Plate, air cleaner

$

$

Currently unavailable

10

Toro 12 041 09

Gasket, collector plate

$

$

Currently unavailable

11

Toro 12 094 06

Base, air cleaner

$

$

Currently unavailable

12

Toro 12 041 02

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable

13

Toro 12 123 07

Tube, air intake

$

$

Currently unavailable

Toro 12 113 04

Decal-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

$

$

Currently unavailable
