73429 (312-8) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) Oil Pan/lubrication (model 73449 Only) Parts Diagram

Garden Tractor

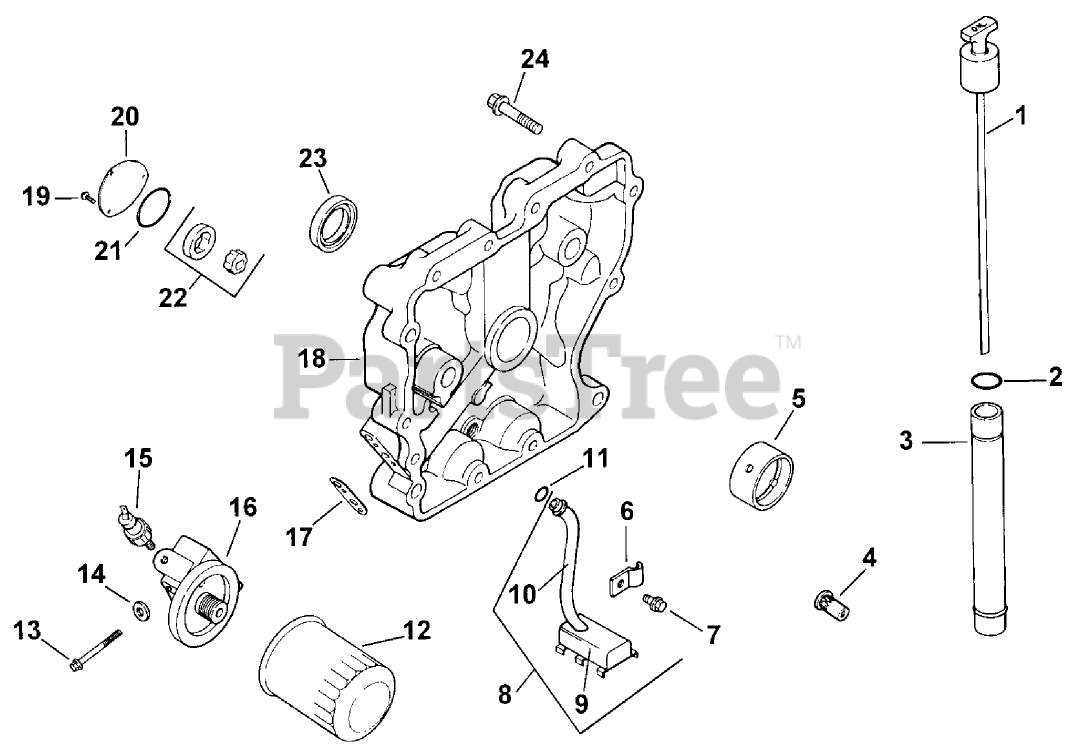

Oil Pan/lubrication (model 73449 Only) Parts Diagram

  • Title

1

Toro 47 038 26

Dipstick

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro 41 153 01

O-Ring

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro 24 123 11

Tube, oil fill

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro 25 462 09

Valve-Oil Pressure

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

5

Toro 12 030 05

Bearing, crankshaft

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro 52 154 01

Clip

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 12 755 73

Kit, oil pick-up (Includes 9, 10)

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 25 381 01

Pick-up, oil screen

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro 12 123 21

Tubing, oil pick-up

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro 12 153 04

O-Ring, oil pick-up

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 52 050 02

Filter-Oil

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro M-0651060

Screw, hex. flange M6x1.0x60

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

14

Toro X-25-12

Washer

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

15

Toro 25 029 24

Swutch, oil pressure

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

16

Toro 12 029 01

Adapter, oil filter

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

17

Toro 12 041 07

Gasket, oil filter adapter

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

18

Toro 1200936

Plate, closure Asm (Includes 4,5,19-22)

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

19

Toro M-0545016

Screw M5x0.8x16 (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

20

Toro 12 096 21

Cover, oil pump

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

21

Toro 12 153 05

O-Ring, oil pump cover

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

22

Toro 12 393 01

Pump-Oil (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

23

Toro 12 032 03

Seal-Crankshaft (Only On: 72042, 72043, 72062, 72063)

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

24

Toro 24_086_16

Screw

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

24

Toro 24 086 17

Screw M8x1.25x45 (Only On: 72103, 72083)

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable

24

Toro 24 086 17

Screw M8x1.25x45 (Only On: 72103, 72083)

Note: Not illustrated

$

$

Currently unavailable

Toro 25 113 05

Decal-Oil Sentry

Note: Not illustrated

$

$

Currently unavailable

Toro 25 113 05

Decal-Oil Sentry

Note: Kohler Engine CH14-1838 Obtain Parts From Kohler

$

$

Currently unavailable
