73429 (312-8) - Toro Garden Tractor (SN: 099000001 - 099999999) (1999) Wheels Assembly Parts Diagram

Garden Tractor

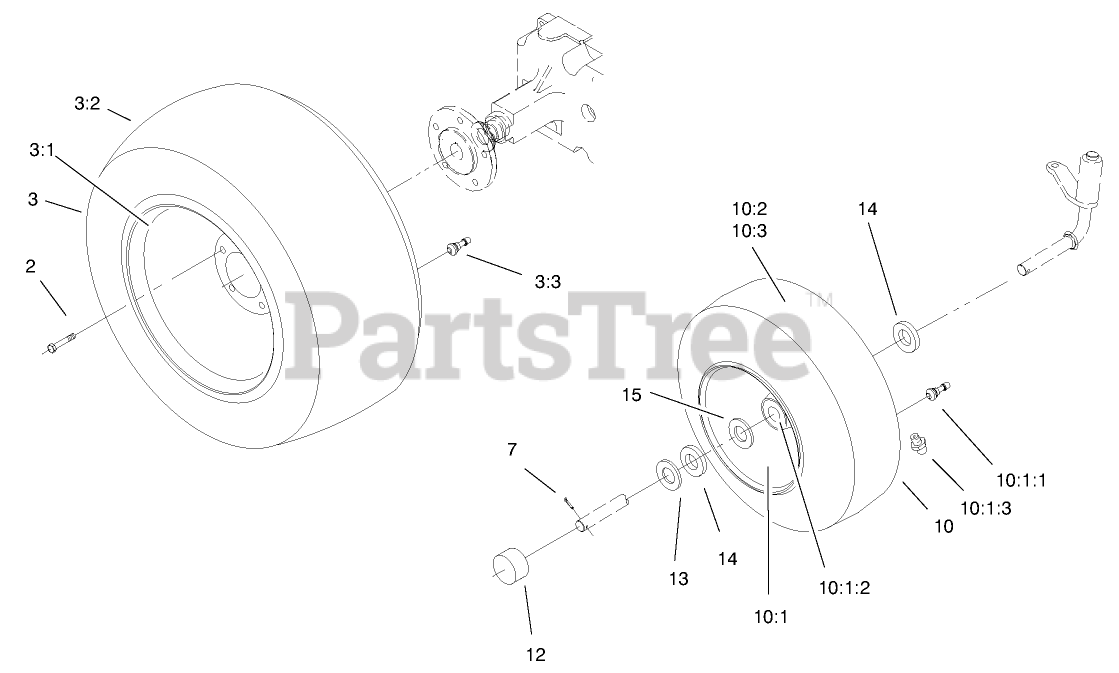

Wheels Assembly Parts Diagram

  • Title

2

Toro 83-2720

BOLT-LUG

$4.49

$

In Stock, only 3 left!

0

3

Ass-y-Tire 23x9.50-12 (Only On: 73449)

$

$

Not available

3

Ass-y-Tire 23x850-12 (only on: 73429)

$

$

Not available

3:1

Toro 111516

WHEEL

$325.99

$

Usually ships in 3-6 days

0

3:2

Toro 116744

See Supercession: 116-5363
(Superseded to 116-5363)

$223.99

$

Usually ships in 3-6 days

0

3:2

Toro 116742

DISCONTINUED

$

$

Not available

3:3

Toro 5108

VALVE

$7.99

$

In Stock, only 4 left!

0

7

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, only 3 left!

0

10

Wheel ASM-Front-Toro (Only On: 73449)

Note: Not illustrated

$

$

Not available

10

Ass-y Tire 15x600-6 (only on: 73429)

Note: Not illustrated

$

$

Not available

10:1

Toro 93-9801

WHEEL ASM

$272.99

$

Usually ships in 3-6 days

0

10:1

Toro 117285

DISCONTINUED

$

$

Not available

10:1:1

Toro 5108

VALVE

$7.99

$

In Stock, only 4 left!

0

10:1:2

Toro 110513

BEARING-WHEEL

$23.99

$

In Stock, Qty 20+

0

10:1:3

Toro 109500

ZERK-GREASE

$4.49

$

Usually ships in 3-6 days

0

10:2

Toro 116884

TIRE-15 X 6.00-6

$173.99

$

Usually ships in 3-6 days

0

10:3

Toro 117127

TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL

$

$

Not available

12

Toro 61-9780

CAP-HUB

$8.99

$

In Stock, Qty 20+

0

13

Toro 28-2480

WASHER-PLAIN

$5.49

$

In Stock, Qty 18

0

14

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

15

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0
