73429 (312-8) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Crankcase (model 73429 Only) Parts Diagram

Garden Tractor

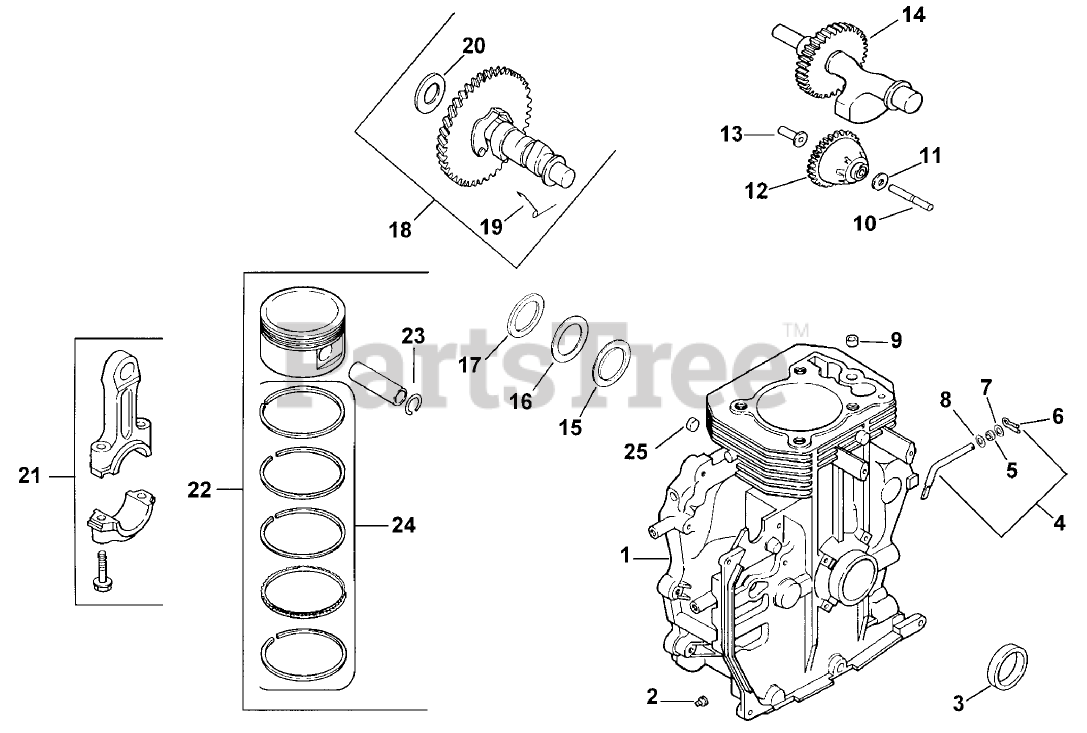

Crankcase (model 73429 Only) Parts Diagram

  • Title

1

Short Block

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

2

Toro X-75-10

Plug

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro 12 032 03

Seal-Crankshaft (Only On: 72042, 72043, 72062, 72063)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro 12 755 64

Kit-Governor Cross

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

5

12_032_01

Seal

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

6

Toro 12 154 05

Clip-Hitch Pin

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro X-25-102

Washer

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro M-0631015

Washer, plain 6 mm

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 12 380 17

Dowel-Locating

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

10

12_144_02

Shaft-Govenor Gear

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

11

Toro M-0631005

Washer

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 12 043 05

Gear-Governor ASM (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro 12_380_01

Pin-Governor

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

14

Toro 12 144 26

Shaft, balance

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

15

Toro 24 030 08

Bearing, thrust

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

16

Toro 52 114 04

Washer, thrust

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

17

Toro 24 422 04

Shim, thrust

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

18

Toro 12 755 50

Kit-Camshaft INC 7-8 (Only On: 92003)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

19

Toro 12 089 31

Spring-Actuating

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

20

Toro 12_422_08

Shim-Camshaft

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12_422_09

Shim-Camshaft

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12_422_10

Shim-Camshaft

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12_422_11

Shim-Camshaft

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12_422_12

Shim-Camshaft

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12_422_13

Shim-Camshaft

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12_422_07

Shim-Camshaft

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

21

Toro 12 067 05

Rod Connecting STD

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 067 06

Rod Connecting .25

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

22

Toro 12 874 01

Piston ASM STD INC 11-12 (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12_874_02

Piston ASM .25 INCL 11-12 (Only On: 72042,72043,72062, 72063)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 874 03

Piston ASM .50 INCL 11-12 (Only On: 72042, 72043, 72062, 72063)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

23

12_018_02

Retainer-Piston Pin (Only On: 72042, 72043,72062,72063)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

24

12_108_01

Ring Set STD (Only On: 72042,72043,72062,72063)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

12_108_02

Ring Set .25 (Only On: 72042,72043,72062,72063)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

12_108_03

Ring Set .50 (Only On: 72042,72043,72062,72063)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

25

Toro 52_139_09

Cup

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable
