73429 (312-8) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Ignition/electrical (model 73429 Only) Parts Diagram

Garden Tractor

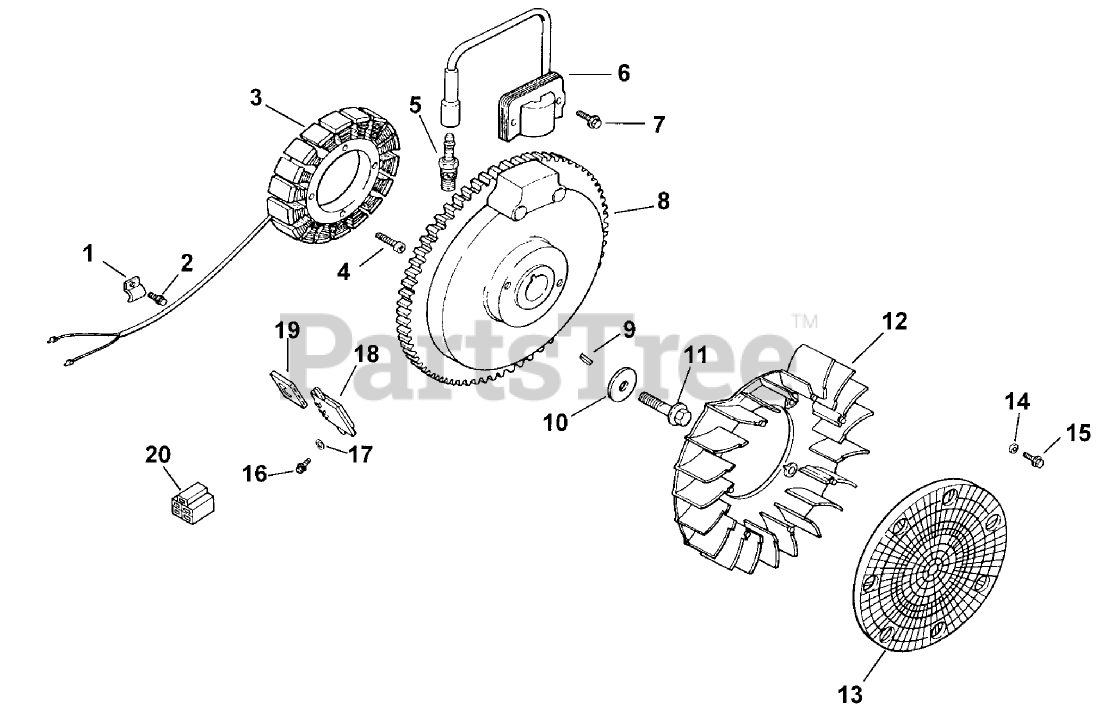

Ignition/electrical (model 73429 Only) Parts Diagram

  • Title

1

Toro X-728-1

Clip

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro M-0545010

Screw

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro 24 126 71

Bracket-Wire, Stator

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 54 755 09

Stator Kit, 15 Amp

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro M-0548025

Screw

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

5

12_132_02

Spark Plug

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

6

Toro 12 584 04

Module, ignition

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro M-0545020

Screw

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 12 025 15

Flywheel

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro X-42-15

Key

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro 12_468_03

Washer

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

11

12_086_14

Screw

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

12

Toro 12 157 03

Fan

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro 24 162 03

Screen-Grass (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

14

12_112_01

Spacer-Fan

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Not available

15

Toro M-0639016

Screw

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

16

Toro M-0639016

Screw

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

17

Toro X-22-11

Washer-Lock (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

18

Toro 41_403_09

Rectifier-Regulator (Only On: 72042,72043,72062,72063)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

19

Toro 236602

Connector

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

20

Toro 48 155 01

Connector

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 25 518 29

Lead-Black

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 25 518 29

Lead-Black

Note: Not illustrated

$

$

Currently unavailable

Toro 12_518_01

Lead-White (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable

Toro 12_518_01

Lead-White (Only On: 72042,72043,72062,72063)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 25_518_05

Lead-Black (Only On: 72042,72043,72062,72063)

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 25_518_05

Lead-Black (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable

Toro 24 126 71

Bracket-Wire, Stator

Note: Not illustrated

$

$

Currently unavailable

Toro 24 126 71

Bracket-Wire, Stator

Note: Kohler Engine CH12.5PS-1935 Obtain Parts From Kohler

$

$

Currently unavailable
