73441 (416-8) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) BATTERY Parts Diagram

Garden Tractor

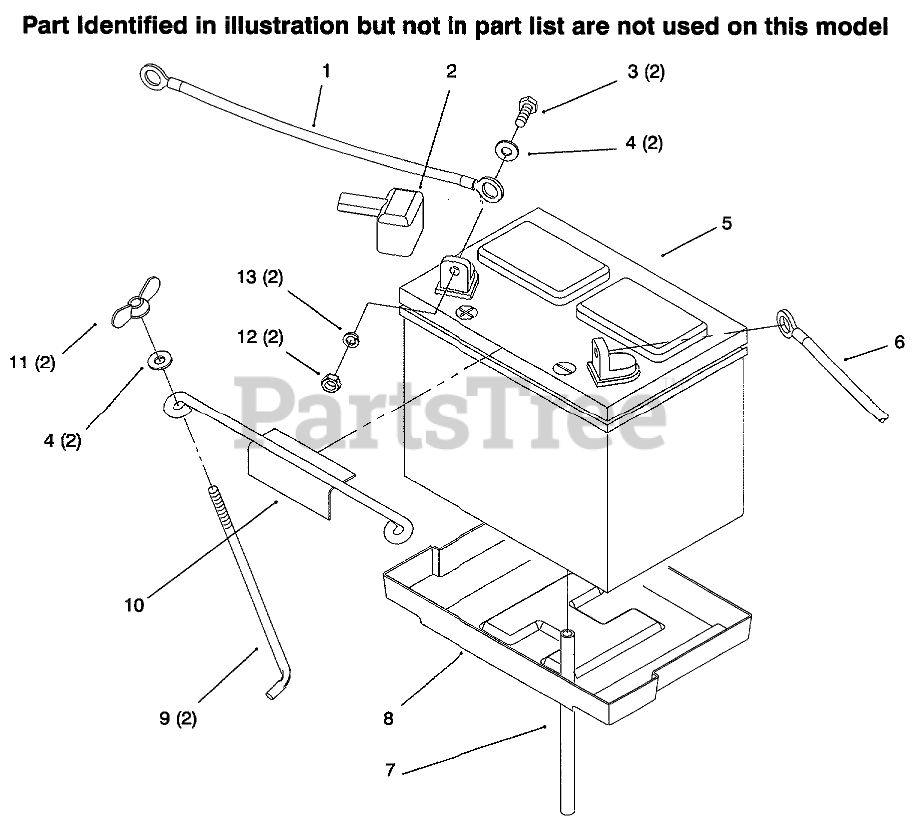

BATTERY Parts Diagram

  • Title

1

Toro 113925

ASS'Y-WIRE

$91.99

$

Usually ships in 3-6 days

0

2

Toro 109553

Boot
(Superseded to 28-8080)

$25.99

$

Usually ships in 3-6 days

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 94-6665

ASM-BATTERY W/DECALS
(Superseded to 104-8162)

$

$

Not available

Toro 93-6668

DECAL-BATTERY

Note: Not illustrate

$21.99

$

Usually ships in 3-6 days

0

Toro 93-7276

DECAL-DANGER

Note: Not illustrate

$21.99

$

Usually ships in 3-6 days

0

6

Toro 114210

ASS'Y-WIRE

$

$

Not available

7

Toro 114720

TUBE-21" BATTERY DRAIN

$8.49

$

Usually ships in 3-6 days

0

8

Toro 106948

TRAY-BATTERY

$12.99

$

In Stock, only 2 left!

0

9

Toro 113969

HOOK-BATTERY RETAIN

$18.99

$

Usually ships in 3-6 days

0

10

Toro 113010

HOLDDOWN-BATTERY

$28.99

$

In Stock, only 3 left!

0

11

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 7

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
