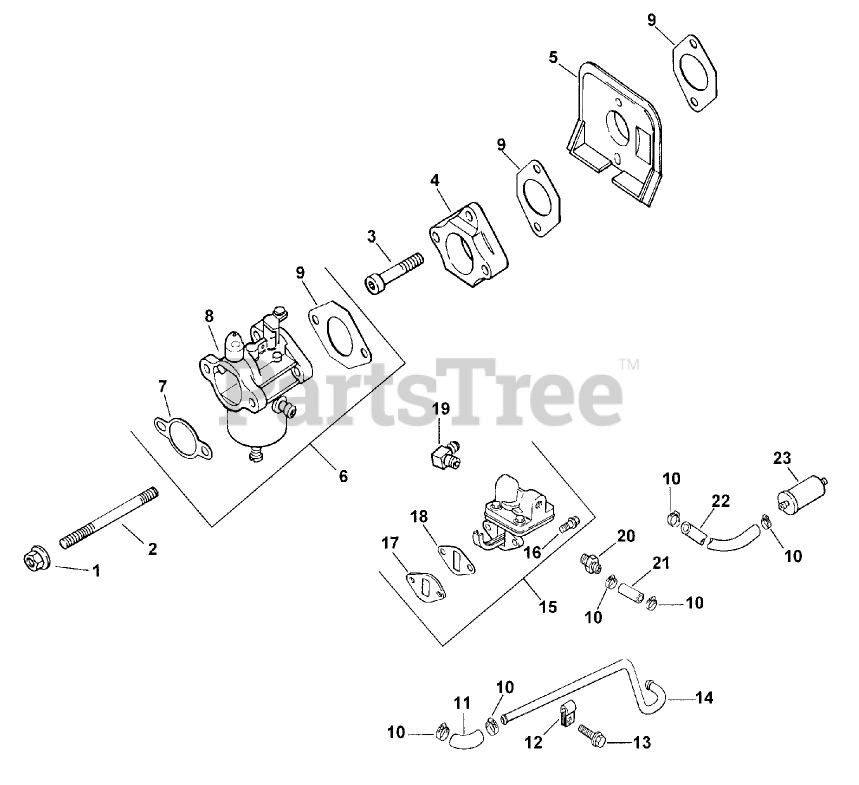

73448 (314-8) - Toro Garden Tractor (SN: 089000500 - 089099999) (1998) Carburetor Fuel Pump Parts Diagram

Garden Tractor

Carburetor Fuel Pump Parts Diagram

  • Title

1

Toro M-0641060

Nut

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro M-0629085

Stud M6x1.0x85

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro M-0644035

Screw, hex. socket cap M6x1.0x35

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro 12 029 04

Adapter, carburetor

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

5

Toro 12 265 04

Deflector-Heat

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro 12 853 60

Kit, carburetor w/gaskets (Incl. 7-90)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro 12 041 02

Gasket-Air Cleaner (Only On: 72042, 72043, 72062, 72063)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 12 053 60

Carburetor assembly (For information only not available separately)(Service with parts listed under "Not Illustrated")

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 12 041 01

Gasket-Carburetor (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro X-426-9

Clamp

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro 12 353 07

Line fuel

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 12 154 01

Clamp-Fuel Line (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro M-0545010

Screw

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

14

Toro 12 353 11

Line, fuel-metal

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

15

Toro 12_559_01

Kit-Pump INCL 13-14 (Only On: 72042,72043,72062,72063)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

16

Toro M-0645020

Screw

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

17

12_112_05

Spacer-Fuel Pump

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available

18

Toro 25_041_09

Gasket-Fuel Pump (Only On: 72042,72043,72062,72063)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

19

Toro 25 155 02

Connector

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

20

Toro X-380-1

Connector

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

21

Toro 12_353_01

Line-Fuel 1.25 Inch (Only On: 72042,72043,72062,72063)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

22

Toro 25 353 02

Line-Fuel 3" (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

23

Toro 25_050_02

Filter-Fuel (Only On: 72042,72043,72062,72063)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12_368_05

Needle-Idle Fuel Adjust

Note: Not illustrated

$

$

Currently unavailable

Toro 12_368_05

Needle-Idle Fuel Adjust

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 089 09

Spring-Idle Fuel (Only On: 72042, 72063, 72062, 72043)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 089 09

Spring-Idle Fuel (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

12_086_04

Screw-Idle Speed Adjust (Only On: 72042,72043,72062,72063)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available

12_086_04

Screw-Idle Speed Adjust (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Not available

12_146_03

Plate-Throttle (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Not available

12_146_03

Plate-Throttle (Only On: 72042,72043,72062,72063)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available

Toro 25_086_27

Screw-Throttle Plate (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable

Toro 25_086_27

Screw-Throttle Plate (Only On: 72042,72043,72062,72063)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 144 09

Shaft-W/Lever Seal (Only On: 72042, 72063, 72062, 72043)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 144 09

Shaft-W/Lever Seal (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 337 04

Jet-Main (Only On: 92043)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 337 04

Jet-Main (Only On: 92043)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 757 08

Kit-Choke Repair

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 08

Kit-Choke Repair

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 146 12

Plate-Choke

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 146 12

Plate-Choke

Note: Not illustrated

$

$

Currently unavailable

Toro 12 173 06

Cap-Choke Lever

Note: Not illustrated

$

$

Currently unavailable

Toro 12 173 06

Cap-Choke Lever

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12_757_02

Kit-Float (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Currently unavailable

Toro 12_757_02

Kit-Float (Only On: 72042,72043,72062,72063)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

12_041_05

Gasket-Bowl (Only On: 72042,72043,72062,72063)

Note: Not illustrated

$

$

Not available

12_041_05

Gasket-Bowl (Only On: 72042,72043,72062,72063)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Not available

Toro 12 104 01

Bowl-Fuel (Only On: 72042, 72063, 72062, 72043)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 104 01

Bowl-Fuel (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 086 05

Screw-Fuel Bowl (Only On: 72042, 72063,72062, 72043)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 086 05

Screw-Fuel Bowl (Only On: 72042, 72063,72062, 72043)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 041 06

Gasket-Bowl Screw (Only On: 72042, 72063, 72062, 72043)

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable

Toro 12 041 06

Gasket-Bowl Screw (Only On: 72042, 72063, 72062, 72043)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 03

Kit-Carburetor Repair

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 03

Kit-Carburetor Repair

Note: Kohler Engine MS14S 1838 Obtain Parts From Kohler

$

$

Currently unavailable
