73449 (314-8) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) HOODSTAND, CONSOLE ASSEMBLY Parts Diagram

Garden Tractor

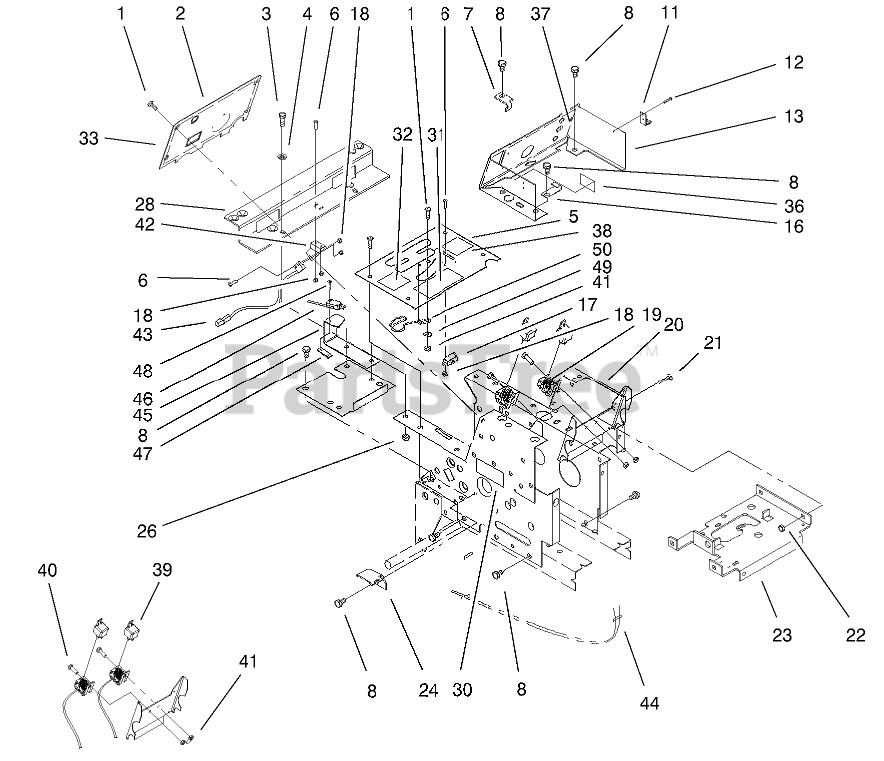

HOODSTAND, CONSOLE ASSEMBLY Parts Diagram

  • Title

1

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

2

Toro 95-7674-03

Plate-Hoodstand (only on: 73429)

$92.99

$

Usually ships in 3-6 days

0

2

Toro 95-7675-03

Plate-Hoodstand (only on: 73449)

$

$

Not available

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

5

Toro 99-8026-03

PLATE-SHIFT

$42.99

$

Usually ships in 3-6 days

0

6

Toro 9109484

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

7

Toro 112415

STOP-PTO

$21.99

$

In Stock, only 1 left!

0

8

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

11

Toro 117343

KEEPER-LATCH

$4.49

$

In Stock, only 2 left!

0

12

Toro 117432

Poprivet (only on: 73429)

$0.99

$

Usually ships in 3-6 days

0

13

Toro 99-3669-03

Console (only on: 73429)

$

$

Not available

13

Toro 95-7670-03

Console (only on: 73449)

$95.99

$

Usually ships in 3-6 days

0

16

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

17

Toro 111332

SWITCH

$11.99

$

In Stock, Qty 16

0

18

Toro 9157324

NUT-HEX

$1.49

$

In Stock, Qty 7

0

19

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

20

Toro 95-7676-03

HOODSTAND ASM

$

$

Not available

21

Toro 116000

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 78-3010-03

SUPPORT-BATTERY

$

$

Not available

24

Toro 88-2170-03

BRACKET-BELT SUPPORT

$7.49

$

Usually ships in 3-6 days

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 106250-03

COVER-DUST

$18.99

$

Usually ships in 3-6 days

0

28

Toro 95-7665-03

BRACKET-FENDER

$57.99

$

In Stock, only 1 left!

0

30

Toro 92-9828

Decal-Model 312-8 (only on: 73429)

$14.99

$

Usually ships in 3-6 days

0

30

Toro 92-9829

Decal-Model 314-8 (only on: 73449)

$

$

Not available

31

Toro 92-8946

DECAL-DANGER

$6.49

$

Usually ships in 3-6 days

0

32

Toro 111534

DECAL-SHIFT PATTERN

$7.49

$

Usually ships in 3-6 days

0

33

Toro 98-0675

Decal-Dash, Lower (only on: 73449)

$

$

Not available

33

Toro 98-0674

Decal-Dash, Lower (only on: 73429)

$

$

Not available

36

Toro 111926

DECAL ELECT SYSTEM

$

$

Not available

37

Toro 99-5342

Decal-Console (only on: 73429)

$

$

Not available

37

Toro 99-5341

Decal-Console (only on: 73449)

$30.99

$

Usually ships in 3-6 days

0

38

Toro 111510

DECAL-PARKING, BRAKE

$6.99

$

Usually ships in 3-6 days

0

39

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 12

0

40

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

41

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

42

Toro 95-7666

BRACKET-SWITCH, REED

$

$

Not available

43

Toro 95-7669

SWITCH-REED, MAGNETIC

$

$

Not available

44

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

45

Toro 99-8049-03

BRACKET-SWITCH, REVERSE

$

$

Not available

46

Toro 88-9931

SWITCH-MICRO

$38.99

$

Usually ships in 3-6 days

0

47

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

48

Toro 147665

SCREW-HH
(Superseded to 95-3003)

$3.49

$

Usually ships in 3-6 days

0

49

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Toro 99-8028

SPRING-SHIFT CONTROL

$

$

Not available
