73449 (314-8) - Toro Garden Tractor (SN: 210000001 - 210999999) (2001) BLOWER HOUSING AND BAFFLES (MODEL 73449 ONLY) Parts Diagram

Garden Tractor

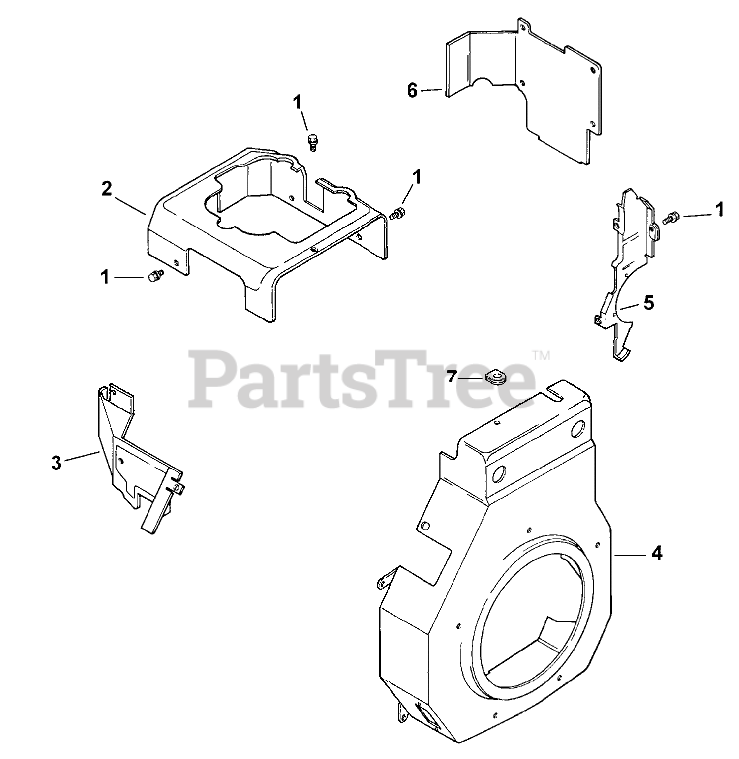

BLOWER HOUSING AND BAFFLES (MODEL 73449 ONLY) Parts Diagram

  • Title

1

Toro M-0545010

Screw

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Currently unavailable

2

1206308

Baffle-Cyl. Head

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

3

1206305

Baffle-Carburetor

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

4

1202739

Housing, blower

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

5

1214607

Plate-Blower Housing

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

6

1206301

Baffle-Cylinder

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

7

1231303

Grommet-Blower

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

1211330

Decal, HP

Note: Kohler Engine CH14PS-1838 Obtain Parts From Kohler

$

$

Not available

1211330

Decal, HP

Note: Not illustrated

$

$

Not available
