73449 (314-8) - Toro Garden Tractor (SN: 210000001 - 210999999) (2001) GAUGES, WARNING LIGHTS AND CONTROLS ASSEMBLY Parts Diagram

Garden Tractor

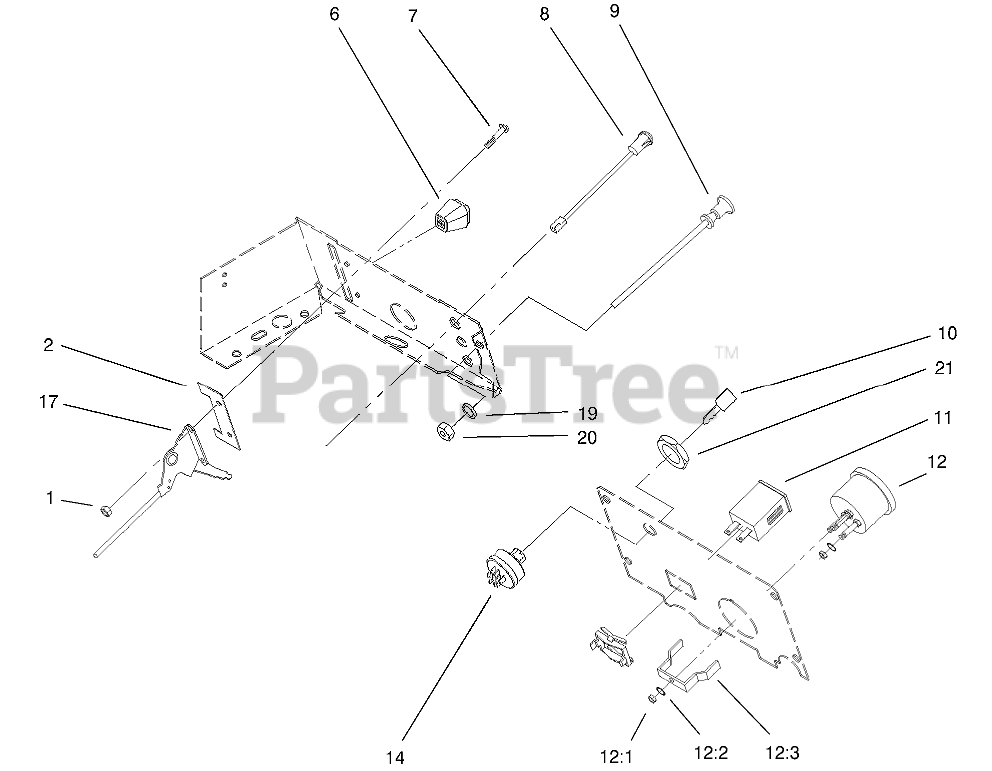

GAUGES, WARNING LIGHTS AND CONTROLS ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 15

0

2

Toro 120590-03

STOP-THROTTLE

$

$

Not available

6

Toro 66-0120

KNOB

$6.49

$

In Stock, Qty 6

0

7

Toro 9107922

SCRW-PHC

$11.99

$

Usually ships in 3-6 days

0

8

Toro 95-7652

Light-Indicator (only on: 73449)

$52.99

$

Usually ships in 3-6 days

0

9

Toro 95-7656

CHOKE CONTROL ASM

$68.99

$

In Stock, only 2 left!

0

10

Toro 62-7770

KEY-IGNITION

$5.49

$

In Stock, Qty 14

0

11

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$74.99

$

In Stock, Qty 5

0

12

Toro 79-0060

Voltmeter (only on: 73449)

$179.99

$

Usually ships in 3-6 days

0

12:1

Toro 3217-27

Nut-Hex (only on: 73449)

$0.99

$

Usually ships in 3-6 days

0

12:2

Toro 3255-25

Washer-Lock (only on: 73449)
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

12:3

Toro 78-0080

Clamp-Mounting (only on: 73449)

$

$

Not available

14

Toro 92-6785

SWITCH-IGNITION

$93.99

$

In Stock, only 1 left!

0

17

Toro 95-7657

THROTTLE CONTROL ASM

$

$

Not available

19

Toro 3256-37

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

20

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 3 left!

0

21

Toro 700919

NUT

$6.49

$

In Stock, only 2 left!

0
