73450 (315-8) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) Fuel System Assembly (continued) Kohler Model Ch15s-44533 Parts Diagram

Garden Tractor

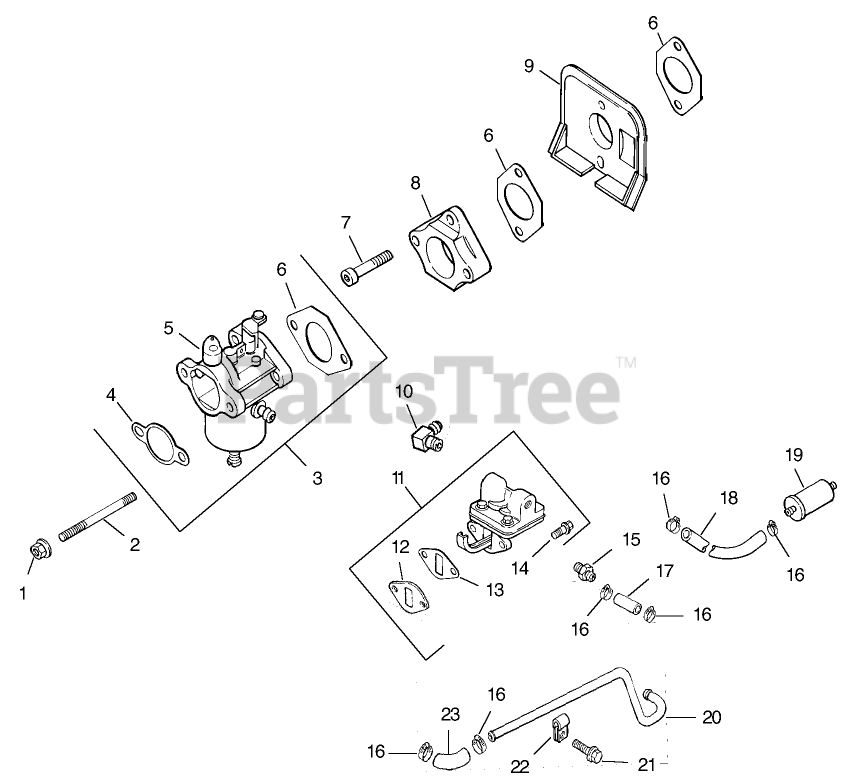

Fuel System Assembly (continued) Kohler Model Ch15s-44533 Parts Diagram

  • Title

1

Toro M-641060-S

NUT-FLANGE (M6X1.0)

$

$

Currently unavailable

2

Toro M-629116-S

Stud (M6x1.0x116)

$

$

Currently unavailable

3

Toro 12 853 75-S

Kit, carburetor w/gaskets (Includes 4-6 [qty 1])

$

$

Currently unavailable

4

Toro 12 041 02-S

Gasket-Base, Air Cleaner

$

$

Currently unavailable

5

Toro 12 053 75

Carburetor ASM (Service with Kits 12 757 27-S, 12 757 29-S, and 12 757 31-S)

$

$

Currently unavailable

6

Toro 12 041 01-S

Gasket-Carburetor

$

$

Currently unavailable

7

Toro M-644035-S

Screw-Hex Socket Cap, M6x1.0x35

$

$

Currently unavailable

8

Toro 12 029 04-S

Adapter-Carburetor

$

$

Currently unavailable

9

Toro 12 265 04-S

Deflector-Heat

$

$

Currently unavailable

10

Toro 25 155 02-S

Connector-Hose, 90 Deg

$

$

Currently unavailable

11

Toro 12 559 01-S

Kit-Pump (Incl 13-15)

$

$

Currently unavailable

12

Toro 12 112 05-S

Spacer-Pump, Fuel

$

$

Currently unavailable

13

Toro 25 041 09-S

Gasket-Pump, Fuel

$

$

Currently unavailable

14

Toro M-645020-S

SCREW-HHFTF (M6X1.0X20)

$

$

Currently unavailable

15

Toro 25 326 03-S

Connector-Hose, Straight

$

$

Currently unavailable

16

Toro 25 237 14-S

CLAMP-HOSE, SPRING (1/2)

$

$

Currently unavailable

17

Toro 12 353 01-S

Line-Fuel (1-1/4in)

$

$

Currently unavailable

18

Toro 25 353 02-S

Line-Fuel (3in)

$

$

Currently unavailable

19

Toro 25 050 02-S

Filter-Fuel

$

$

Currently unavailable

20

Toro 12 353 11-S

Line-Fuel, Metal

$

$

Currently unavailable

21

Toro M-545010-S

SCREW-HHFTF (M5X.80X10)

$

$

Currently unavailable

22

Toro X-728-1-S

Clip

$

$

Currently unavailable

23

Toro 12 353 07-S

Line-Fuel, 90 Deg. Elbow

$

$

Currently unavailable

Toro 12 757 27-S

Kit, carburetor overhaul w/gaskets (Includes carburetor gasket, air filter base gasket, throttle adjust screw, gasket, float assembly, float pin, float valve, chamber set plug, float chamber gasket, welch plug, throttle adjust screw spring)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 29-S

Kit, choke repair (Includes carburetor gasket, air filter base gasket, valve set screw, E-clip, choke valve, choke return spring, choke lever cap, choke shaft)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 31-S

Gasket Replacement Kit

Note: Not illustrated

$

$

Currently unavailable
