73450 (315-8) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) OIL PAN/LUBRICATION ASSEMBLY KOHLER MODEL CH15S-44533 Parts Diagram

Garden Tractor

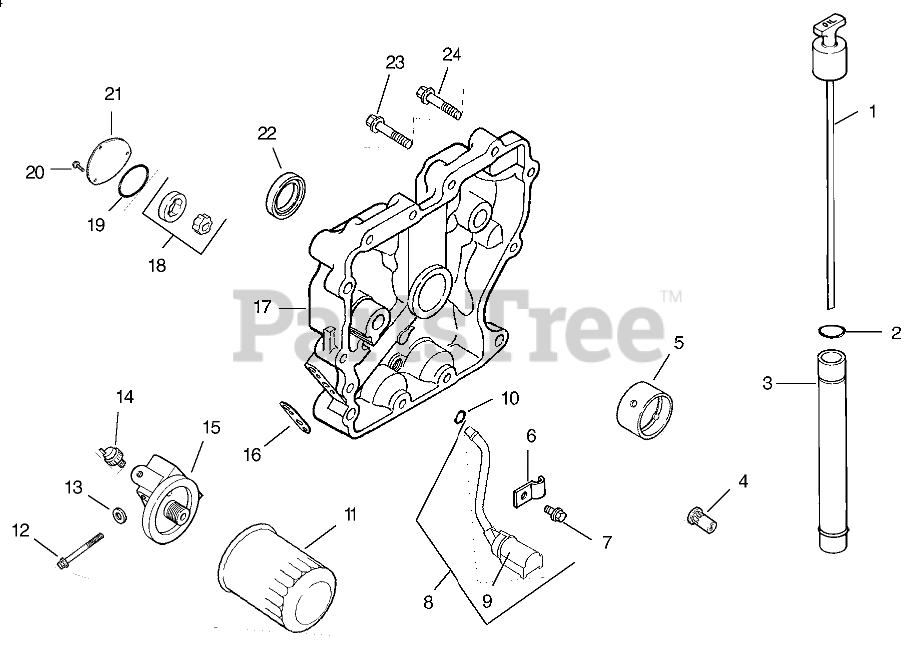

OIL PAN/LUBRICATION ASSEMBLY KOHLER MODEL CH15S-44533 Parts Diagram

  • Title

1

Kohler 47 038 26-S

Dipstick ASM

$

$

Not available

2

Kohler 41 153 01-S

O-Ring-Lower Oil Fill Tube

$5.49

$

Usually ships in 2-5 days

0

3

Kohler 24 123 11-S

Tube-Oil Fill

$35.99

$

Usually ships in 2-5 days

0

4

Kohler 25 462 09-S

Valve-Relief, Oil Pressure

$12.99

$

In Stock, only 1 left!

0

5

Kohler 12 030 05-S

Bearing-Thrust

$23.99

$

Usually ships in 2-5 days

0

6

Kohler 52 154 01-S

Clip-Oil Tube

$6.49

$

Usually ships in 2-5 days

0

7

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

$3.99

$

In Stock, Qty 13

0

8

Kohler 12 755 73-S

Kit, oil pick-up (Includes 9)

$88.99

$

Usually ships in 2-5 days

0

9

Kohler 25 381 01-S

Screen-Oil Pick-up

$53.99

$

Usually ships in 2-5 days

0

10

Kohler 12 153 04-S

O Ring-Oil Pick-up

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

12

Kohler M-651060-S

Screw-Hex Flange, M6x1.0x60

$3.99

$

Usually ships in 2-5 days

0

13

Kohler X-25-12-S

Washer-Plain (91/4)

$3.49

$

In Stock, only 2 left!

0

14

Kohler 25 099 24-S

Switch-Pressure
(Superseded to 25 099 27-S)

$15.99

$

In Stock, only 4 left!

0

15

Kohler 12 029 01-S

Adapter-Filter, Oil

$

$

Not available

16

Kohler 12 041 07-S

Gasket-Oil Filter Adapter

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 12 009 36-S

Closure plate assembly (Includes 4, 5, 18-21)

$

$

Not available

18

Kohler 12 393 01-S

Oil Pump ASM

$

$

Not available

19

Kohler 12 153 05-S

O Ring-Oil Pump

$7.99

$

In Stock, Qty 7

0

20

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

$3.99

$

In Stock, Qty 13

0

21

Kohler 12 096 21-S

Cover-Oil Pump

$14.99

$

Usually ships in 2-5 days

0

22

Kohler 12 032 03-S

Seal-Oil

$9.99

$

In Stock, only 4 left!

0

23

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 20+

0

24

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

$2.49

$

In Stock, Qty 20+

0

Kohler 25 113 05-S

Decal-Sentry, Oil

Note: Not illustrated

$

$

Not available
