73450 (315-8) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) STARTER ASSEMBLY KOHLER MODEL CH15S-44533 Parts Diagram

Garden Tractor

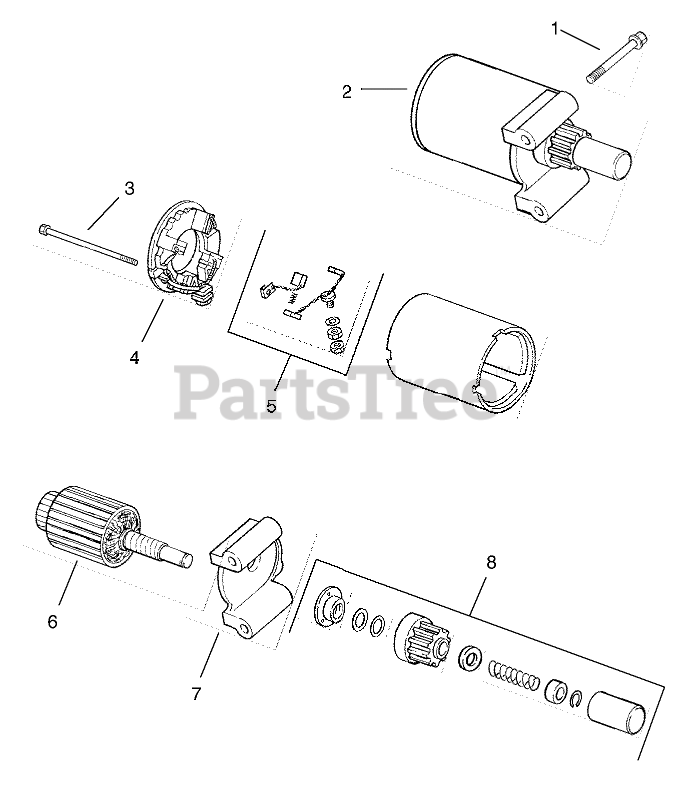

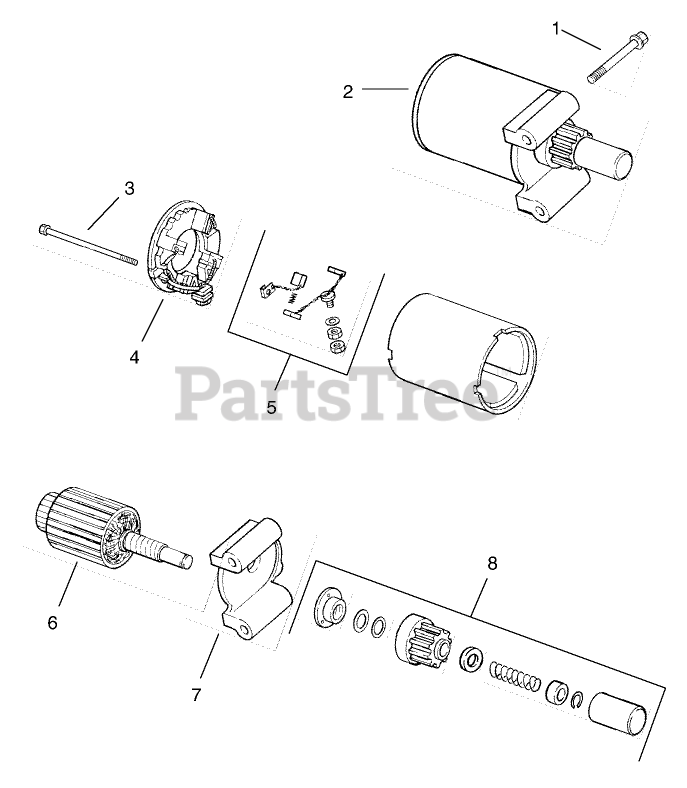

STARTER ASSEMBLY KOHLER MODEL CH15S-44533 Parts Diagram

  • Title

1

Kohler M-839070-S

Screw-HF (M8x1.25x70)

$8.99

$

Usually ships in 2-5 days

0

2

Kohler 12 098 19-S

Starter assembly (Includes 3-8)
(Superseded to 12 098 21-S)

$302.99

$

In Stock, only 1 left!

0

3

Kohler 12 086 25-S

Screw-Hex Flange, 1/4-20x4-5/8

$

$

Not available

4

Kohler 12 227 10-S

Cap-End, Commutator

$

$

Not available

5

Kohler 82 755 28-S

Brush and Spring Kit

$

$

Not available

6

Kohler 45 170 03-S

Armature ASM

$

$

Not available

7

Kohler 12 227 16-S

Cap-End Drive

$

$

Not available

8

Kohler 12 755 53-S

Drive Kit

$169.99

$

Usually ships in 2-5 days

0
