73450 (315-8) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) FRAME, AXLE, AND STEERING ASSEMBLY Parts Diagram

Garden Tractor

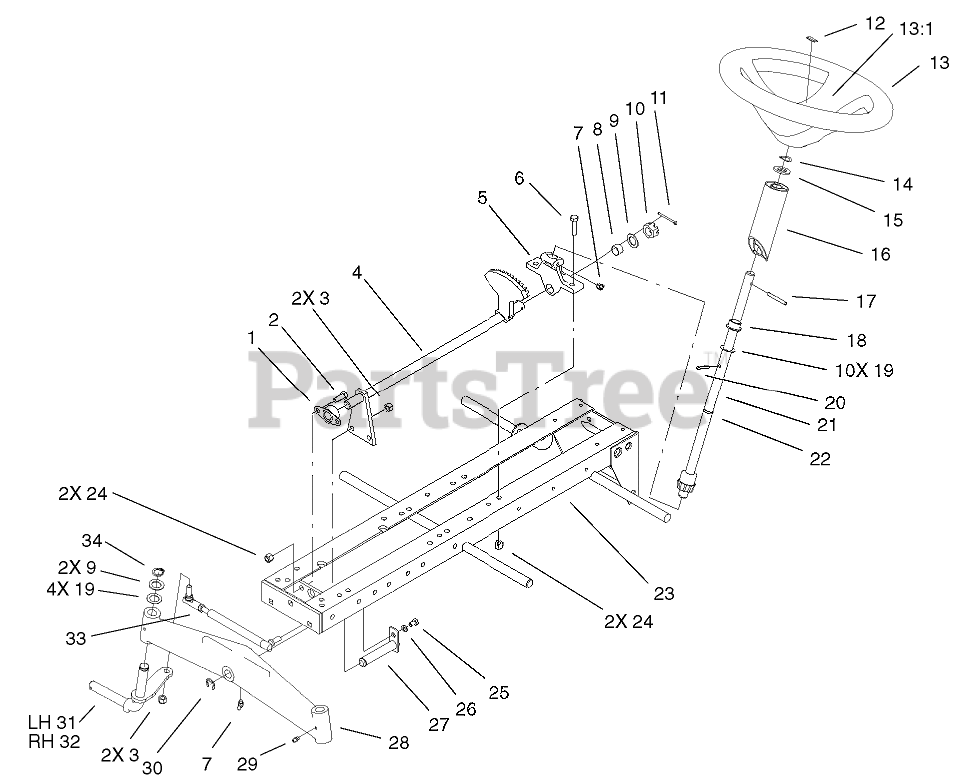

FRAME, AXLE, AND STEERING ASSEMBLY Parts Diagram

  • Title

1

Toro 6472

BEARING-FLANGED

$21.99

$

In Stock, only 2 left!

0

2

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

4

Toro 78-2880-03

LOWER STEERING ASM

$218.99

$

Usually ships in 3-6 days

0

5

Toro 88-2710-03

SUPPORT-LOWER, STEERING

$

$

Not available

6

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 302-11

FITTING-LUBE, 45 DEG

$1.49

$

In Stock, only 4 left!

0

8

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

9

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

10

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

In Stock, only 2 left!

0

11

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

12

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0

13

Toro 98-1473

WHEEL-STEERING

$231.99

$

Usually ships in 3-6 days

0

13:1

Toro 98-1468

COVER-WHEEL, STEERING

$18.99

$

In Stock, only 1 left!

0

14

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 2 left!

0

15

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 2 left!

0

16

Toro 113443

TUBE-STEERING

$

$

Not available

17

Toro 32121-111

PIN-ROLL

$2.99

$

In Stock, Qty 20+

0

18

Toro 109189

BEARING-FLANGED

$2.99

$

In Stock, Qty 20+

0

19

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

20

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, Qty 6

0

21

Toro 92-4987

STEERING SHAFT ASM

$176.99

$

In Stock, only 1 left!

0

22

Toro 237-69

O-RING

$6.99

$

Usually ships in 3-6 days

0

23

Toro 94-6673-01

FRAME ASM

$

$

Not available

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

26

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 6216

PIN AND PLATE ASM

$44.99

$

In Stock, only 1 left!

0

28

Toro 5638-01

AXLE-FRONT

$

$

Not available

28:1

Toro 5638

AXLE-FRONT
(Superseded to 5638-01)

$

$

Not available

29

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 15

0

30

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

31

Toro 113382-01

SPINDLE ASM-RH

$95.99

$

In Stock, only 1 left!

0

32

Toro 113381-01

SPINDLE ASM-LH

$95.99

$

In Stock, only 1 left!

0

33

Toro 78-2900-01

TIE ROD ASM
(Superseded to 78-2900)

$64.99

$

In Stock, only 4 left!

0

34

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0
