73450 (315-8) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) TRANSMISSION GEAR ASSEMBLY Parts Diagram

Garden Tractor

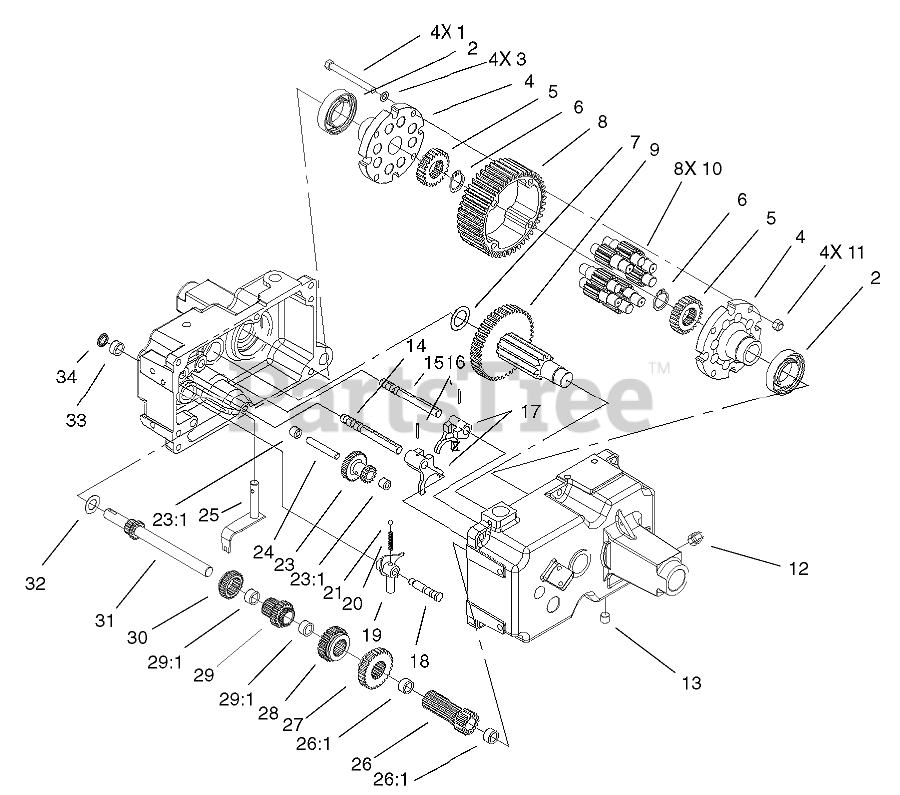

TRANSMISSION GEAR ASSEMBLY Parts Diagram

  • Title
1

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, Qty 20+

0

2

Toro 111199

BEARING-BALL

$122.99

$

In Stock, only 4 left!

0

3

Toro 107374

WASHER

$0.99

$

Usually ships in 3-6 days

0

4

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 2 left!

0

5

Toro 101889

GEAR-AXLE DIFFERENTIAL

$85.99

$

Usually ships in 3-6 days

0

6

Toro 105876

RING-SNAP

$4.99

$

In Stock, only 2 left!

0

7

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

8

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1066.99

$

Usually ships in 3-6 days

0

9

Toro 102974

GEAR ASM

$

$

Not available

10

Toro 101623

GEAR-PINION, 11T

$113.99

$

Usually ships in 3-6 days

0

11

$6.49

$

In Stock, Qty 10

0

12

Toro 281-2

PLUG-PIPE, SQH

$2.49

$

Usually ships in 3-6 days

0

13

Toro 99-8551

PLUG-PIPE

$5.49

$

Usually ships in 3-6 days

0

14

Toro 5615

RAIL-SHIFT

$116.99

$

Usually ships in 3-6 days

0

15

Toro 5616

RAIL-REAR SHIFT

$78.99

$

Usually ships in 3-6 days

0

16

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 10

0

17

Toro 3503

FORK-SHIFT

$136.99

$

Usually ships in 3-6 days

0

18

Toro 7213

BOLT-DETENT

$54.99

$

Usually ships in 3-6 days

0

19

Toro 116636

SHIFT FORK ASM
(Superseded to 116636-03)

$

$

Not available

20

Toro 106030

SPRING-SHIFT STOP

$2.99

$

In Stock, only 1 left!

0

21

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 10

0

23

Toro 100-1338

ASM-GEAR REDUCTION

$273.99

$

Usually ships in 3-6 days

0

23:2

Toro 7207

BEARING-NEEDLE

$30.99

$

Usually ships in 3-6 days

0

24

Toro 7208

GEAR-SHAFT REDUCTION

$11.99

$

In Stock, only 2 left!

0

25

Toro 7214

SHIFT ASM

$40.99

$

Usually ships in 3-6 days

0

26

Toro 5175

GEAR

$272.99

$

Usually ships in 3-6 days

0

26:2

Toro 1518

BEARING-NEEDLE

$26.99

$

Usually ships in 3-6 days

0

27

Toro 5174

GEAR-LOW AND REVERSE

$192.99

$

Usually ships in 3-6 days

0

28

Toro 5173

GEAR-HI AND 2ND

$146.99

$

Usually ships in 3-6 days

0

29

Toro 7204

GEAR

$

$

Not available

29:2

Toro 1518

BEARING-NEEDLE

$26.99

$

Usually ships in 3-6 days

0

30

Toro 7205

GEAR-SLIDING

$

$

Not available

31

Toro 7201

SHAFT-INPUT

$

$

Not available

32

Toro 7418

WASHER-THR

$6.49

$

In Stock, Qty 6

0

33

Toro 1542

BEARING-NEEDLE

$37.99

$

In Stock, only 2 left!

0

34

Toro 100442

SEAL-OIL

$6.49

$

Usually ships in 3-6 days

0
