73450 (315-8) - Toro Garden Tractor (SN: 240000001 - 240999999) (2004) Fuel System Assembly Kohler CH15S-44533 Parts Diagram

Garden Tractor

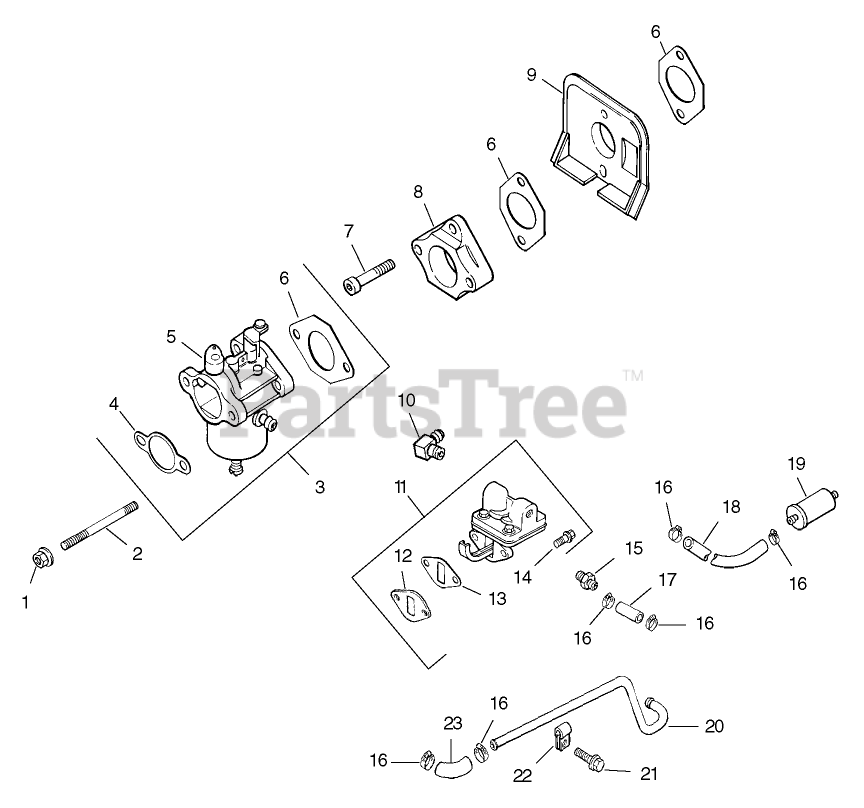

Fuel System Assembly Kohler CH15S-44533 Parts Diagram

  • Title

1

Toro M-641060-S

NUT-FLANGE (M6X1.0)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro M-629116-S

Stud (M6x1.0x116)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro 12 853 75-S

Kit, carburetor w/gaskets (Includes 4-6 [qty 1])

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro 12 053 75

Carburetor ASM (Service with Kits 12 757 27-S, 12 757 29-S, and 12 757 31-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Toro 12 041 01-S

Gasket-Carburetor

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro M-644035-S

Screw-Hex Socket Cap, M6x1.0x35

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro 12 029 04-S

Adapter-Carburetor

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Toro 12 265 04-S

Deflector-Heat

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

10

Toro 25 155 02-S

Connector-Hose, 90 Deg

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 12 559 01-S

Kit-Pump (Incl 13-15)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

12

Toro 12 112 05-S

Spacer-Pump, Fuel

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

13

Toro 25 041 09-S

Gasket-Pump, Fuel

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

14

Toro M-645020-S

SCREW-HHFTF (M6X1.0X20)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

15

Toro 25 326 03-S

Connector-Hose, Straight

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

16

Toro 25 237 14-S

CLAMP-HOSE, SPRING (1/2)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

17

Toro 12 353 01-S

Line-Fuel (1-1/4in)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

18

Toro 25 353 02-S

Line-Fuel (3in)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

19

Toro 25 050 02-S

Filter-Fuel

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

20

Toro 12 353 11-S

Line-Fuel, Metal

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

21

Toro M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

22

Toro X-728-1-S

Clip

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 12 353 07-S

Line-Fuel, 90 Deg. Elbow

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 12 757 27-S

Kit, carburetor overhaul w/gaskets (Includes carburetor gasket, air filter base gasket, throttle adjust screw, gasket, float assembly, float pin, float valve, chamber set plug, float chamber gasket, welch plug, throttle adjust screw spring)

Note: Not illustrated

$

$

Currently unavailable

Toro 12 757 27-S

Kit, carburetor overhaul w/gaskets (Includes carburetor gasket, air filter base gasket, throttle adjust screw, gasket, float assembly, float pin, float valve, chamber set plug, float chamber gasket, welch plug, throttle adjust screw spring)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 12 757 29-S

Kit, choke repair (Includes carburetor gasket, air filter base gasket, valve set screw, E-clip, choke valve, choke return spring, choke lever cap, choke shaft)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

Toro 12 757 31-S

Gasket Replacement Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable
