73450 (315-8) - Toro Garden Tractor (SN: 250000001 - 250999999) (2005) AIR INTAKE / FILTRATION ASSEMBLY KOHLER CH15S-44533 Parts Diagram

Garden Tractor

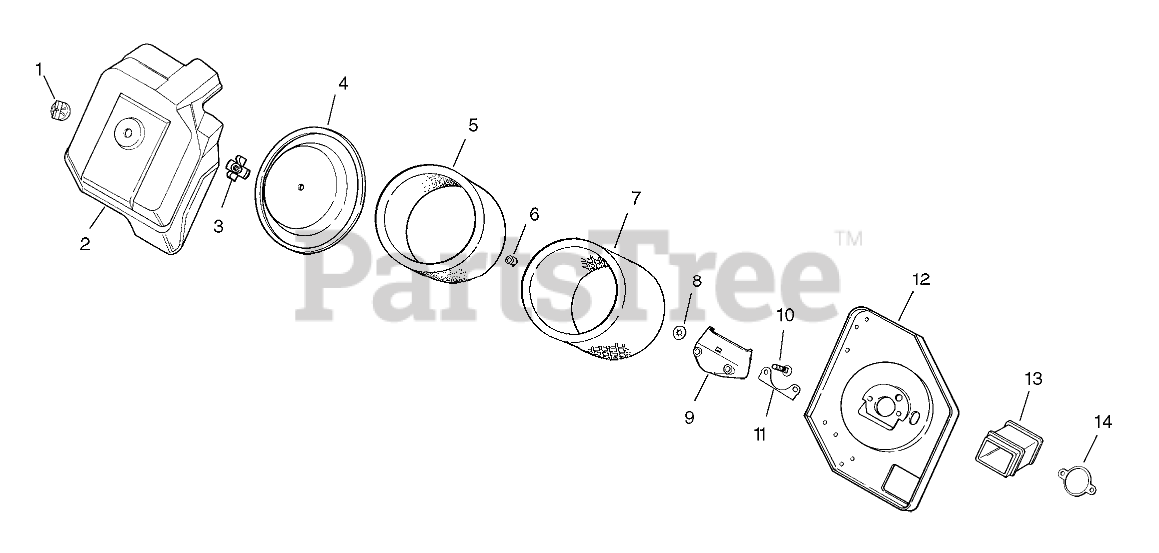

AIR INTAKE / FILTRATION ASSEMBLY KOHLER CH15S-44533 Parts Diagram

  • Title

1

Kohler 25 341 03-S

Knob-Cover

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, Qty 5

0

2

Kohler 12 096 41-S

Cover-Air Cleaner Base

Note: Obtain parts from www.kohlerplus.com

$54.99

$

Usually ships in 2-5 days

0

3

Kohler 12 100 08-S

Nut-Wing

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 12 096 37-S

Cover-Air Cleaner Element

Note: Obtain parts from www.kohlerplus.com

$37.99

$

In Stock, only 1 left!

0

5

Kohler 52 083 01-S

Precleaner-Element

Note: Obtain parts from www.kohlerplus.com

$6.99

$

Usually ships in 2-5 days

0

6

Kohler 24 032 03-S

SEAL-AIR CLEANER, INNER

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 17

0

7

Kohler 47 083 01-S

Element-Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$23.99

$

Usually ships in 2-5 days

0

8

Kohler 12 018 04-S

Retainer-Ring
(Superseded to 12 018 06-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

9

Kohler 12 109 08-S

Cup-Fuel, Spit-Back

Note: Obtain parts from www.kohlerplus.com

$19.99

$

In Stock, only 1 left!

0

10

Kohler 12 211 02-S

Bolt-Round Head, Square Neck

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 12 041 09-S

Gasket-Collector, Plate

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 6

0

12

Kohler 12 094 06-S

Base-Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$42.99

$

Usually ships in 2-5 days

0

13

Kohler 12 123 07-S

Tube-Air Intake

Note: Obtain parts from www.kohlerplus.com

$12.99

$

In Stock, only 1 left!

0

14

Kohler 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0
