73450 (315-8) - Toro Garden Tractor (SN: 270000001 - 270999999) (2007) Hitch Assembly Parts Diagram

Garden Tractor

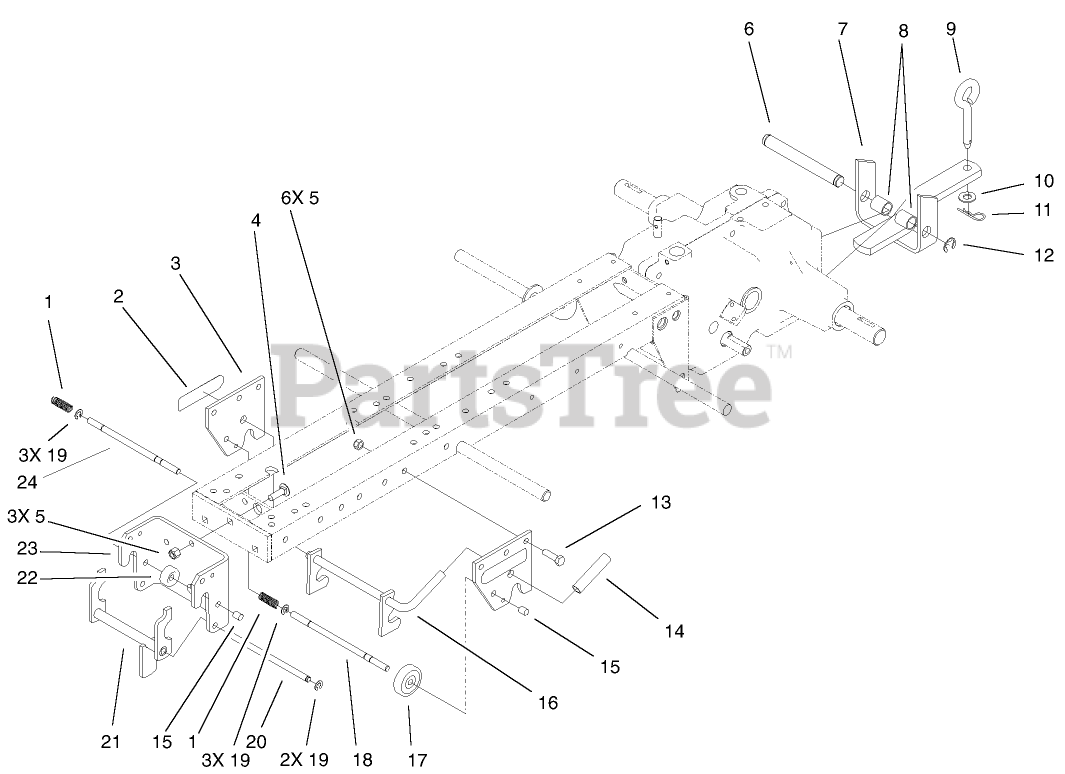

Hitch Assembly Parts Diagram

  • Title

1

Toro 8616

SPRING

$4.49

$

Usually ships in 3-6 days

0

2

Toro 92-8747

DECAL-ATTACH A-MATIC

$7.99

$

In Stock, only 1 left!

0

3

Toro 102644-01

PLATE-HITCH

$34.99

$

Usually ships in 3-6 days

0

4

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 105269

PIN-STATIONARY HITCH

$

$

Not available

7

Toro 98-8083-01

HITCH ASM

$104.99

$

Usually ships in 3-6 days

0

8

Toro 9791204

SPACER

$

$

Not available

9

Toro 106634

PIN-TOOL

$

$

Not available

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

11

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

12

Toro 5618

E-RING

$1.49

$

In Stock, Qty 6

0

13

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

14

Toro 9038

GRIP

$7.99

$

In Stock, only 3 left!

0

15

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0

16

Toro 117930

MID HITCH ASM

$103.99

$

Usually ships in 3-6 days

0

17

Toro 101017

LOCK

$32.99

$

Usually ships in 3-6 days

0

18

Toro 83-6520

ROD-LOCK

$49.99

$

Usually ships in 3-6 days

0

19

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 17

0

20

Toro 101750

ROD-LATCH PIVOT

$

$

Not available

21

Toro 93-1613

LATCH

$

$

Not available

22

Toro 101707

LOCK

$

$

Not available

23

Toro 101711-01

HITCH-FRONT

$121.99

$

Usually ships in 3-6 days

0

24

Toro 101751

ROD-LOCK

$29.99

$

Usually ships in 3-6 days

0
